2001 Suzuki RM80 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2001 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

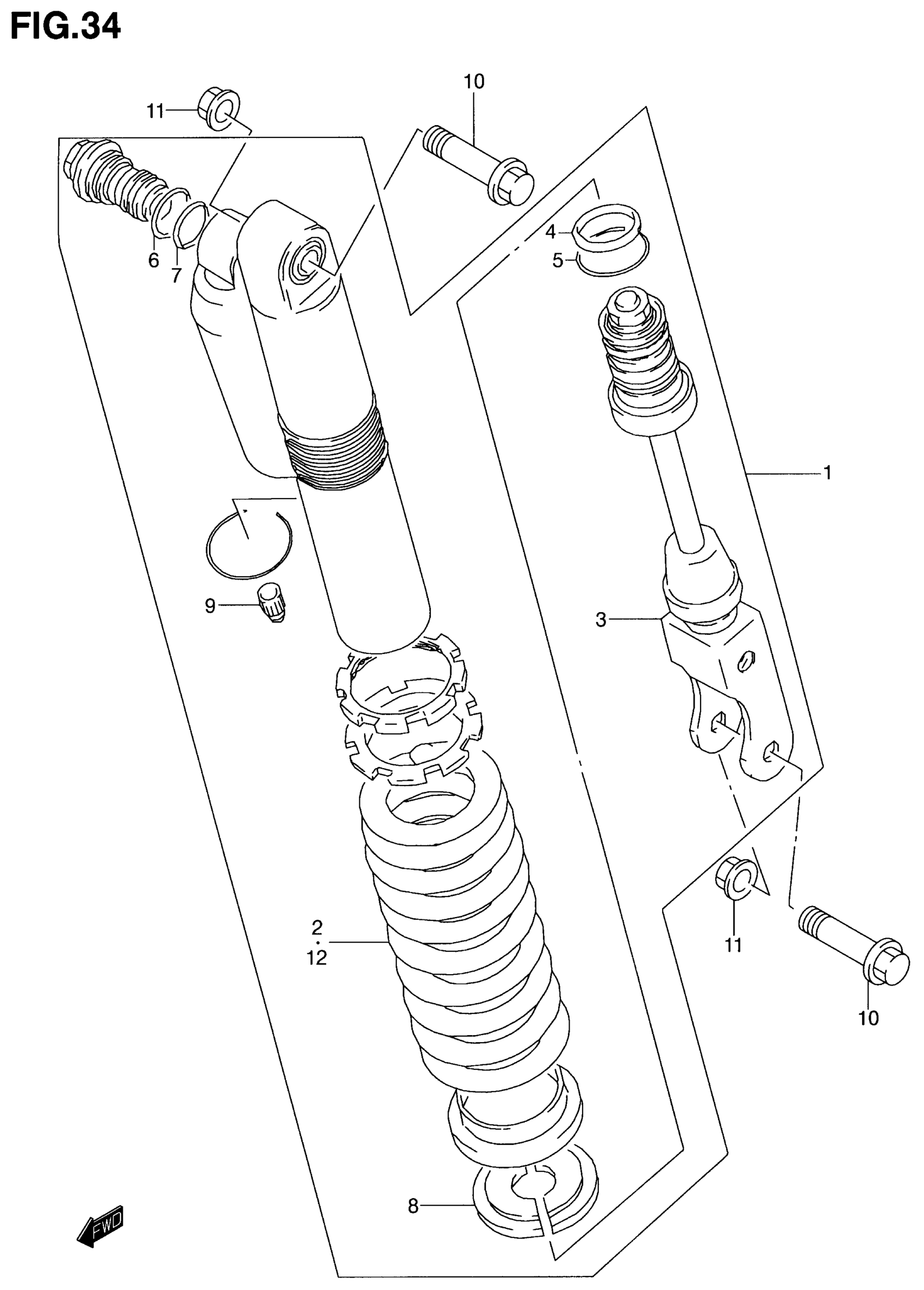

2001 Suzuki RM80 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK (RED) (RED) (RED) | P3; Includes Item(s) 2 - 9

62100-03B01-37W

1
Out of stock

2

SPRING (K=4.89)

62211-02B70-37W

1
Out of stock

3

ROD, PISTON

62120-03B00

1
Out of stock

4

O RING

62153-03B00

1
Out of stock

5

RING, ROD STOPPER

62279-03B00

1
Out of stock

6

O RING

62131-27C40

1
Out of stock

7

O RING This part replaces 51175-28E30.

51175-03B30

1
Out of stock

8

SEAT, SPRING STOPPER

62225-17C00

2
Out of stock

9

CAP

51294-20400

1
Out of stock

10

BOLT (10X48)

62648-14500

2
Out of stock

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

12

SPRING (K=4.70)(SOFT) | OPT

62211-03B00

1
Out of stock

12

SPRING (K=5.10)(HARD) | OPT

62211-03B10

1
Out of stock
