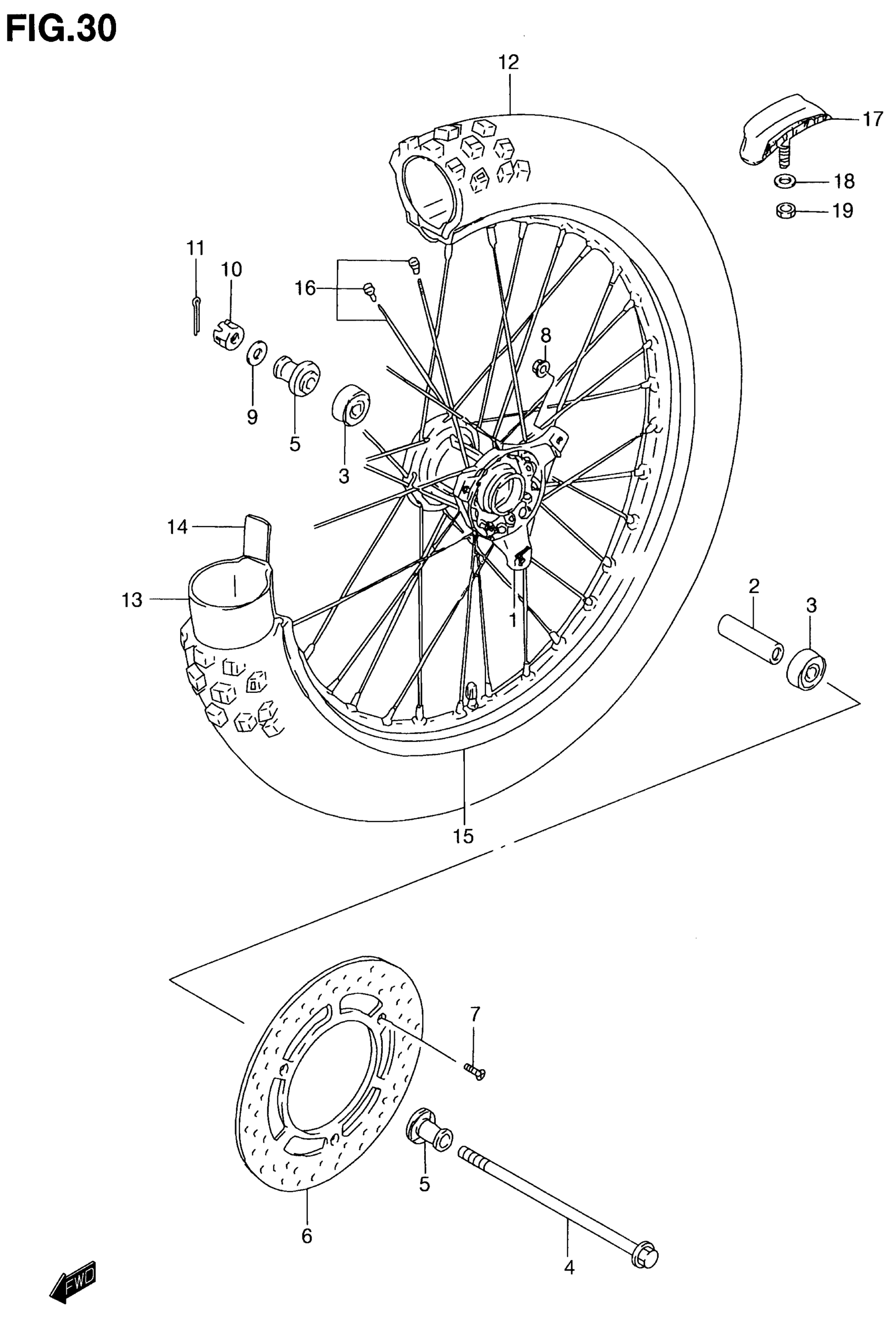

Suzuki RM80 (2001) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$352.00

2

SPACER, FR HUB BEARING

54731-02B40

$15.43

3

BEARING

08133-62017

$17.50

4

AXLE, FRONT

54711-02B40

$49.30

5

SPACER, FR AXLE

54740-02B40

$15.43

6

DISC,FRONT BRAK This part replaces 59221-02B20.

59221-02B21

Unavailable

7

SCREW (6X22)

09126-06009

$2.95

8

NUT

08319-31067

$2.09

9

WASHER

08211-12204

$4.70

10

NUT This part replaces 08314-40123.

08314-4012A

$2.61

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

12

TIRE, FRONT (70/100-17 40M D737F)(DUNLOP) (70/100-17 40M D737F)(DUNLOP)

55110-02B60

Unavailable

13

TUBE ASSY, WHEEL INNER | TYPE K1 This part replaces 55200-47C00.

55200-08G01

$25.70

14

PROTECTOR, INNER TUBE | TYPE Y This part replaces 55261-02B60.

55261-02B40

$7.77

14

PROTECTOR, INNER TUBE | TYPE K1

55261-02B40

$7.77

15

RIM, FRONT WHEEL (1.40X17)

55311-02B00

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-02B00

Unavailable

17

STOPPER, BEAD

65270-28600

$61.78

18

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

19

NUT This part replaces 08310-00083.

08310-0008A

$1.94
