2001 Suzuki RM80 Rear Cushion Lever Diagram

← All diagrams

Find the part on the Rear Cushion Lever diagram for your 2001 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

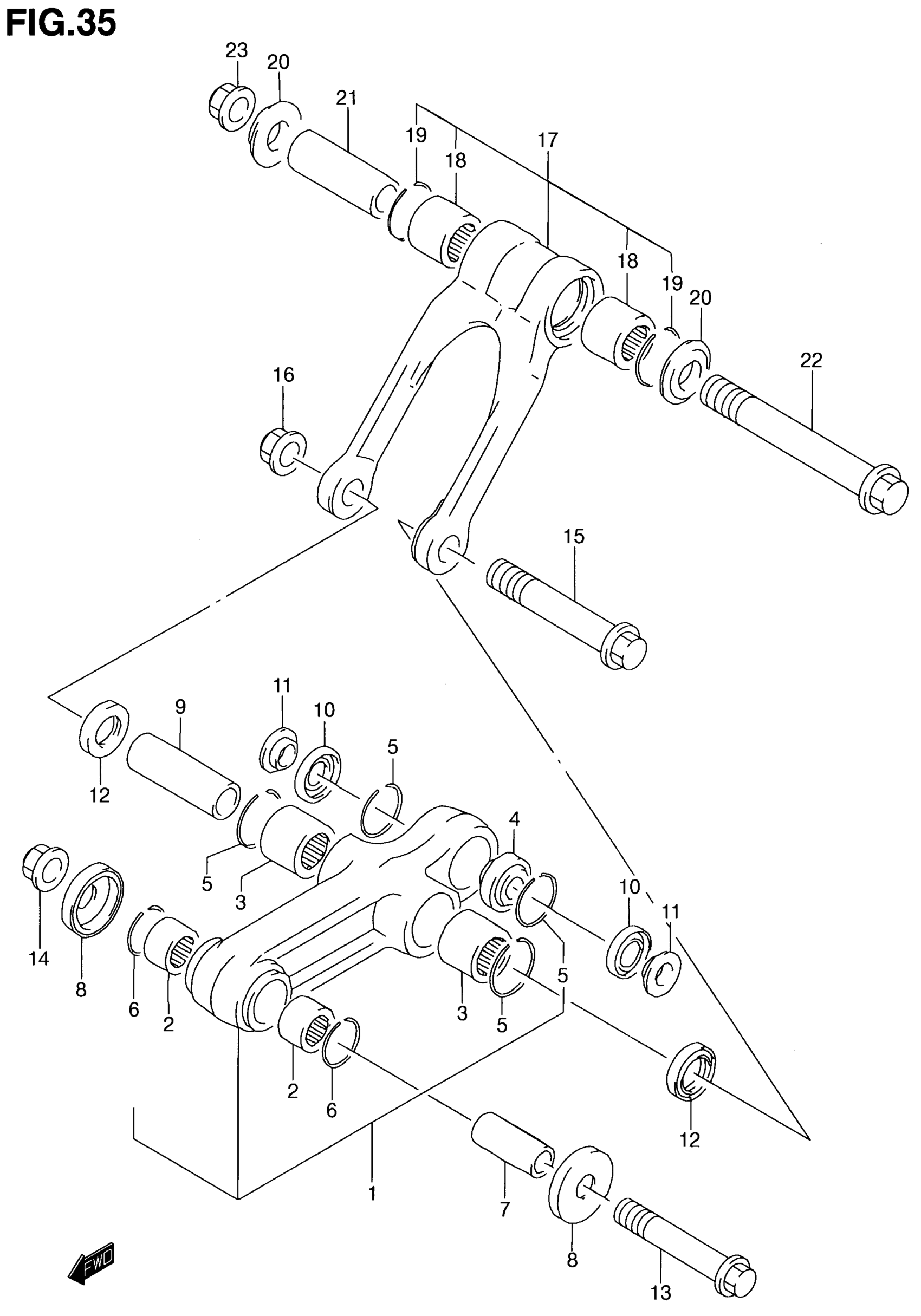

2001 Suzuki RM80 Rear Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-02840

1
Out of stock

2

2

$13.10

In stock

3

2

$15.94

In stock

4

BEARING, REAR (10X24X14.5)

62175-00B00

1
Out of stock

5

RING, STOPPER

62657-34A01

4
Out of stock

6

RING, STOPPER FRONT

09381-20004

2
Out of stock

7

1

$20.33

In stock

8

2

$10.58

In stock

9

1

$23.08

In stock

10

DUST SEAL, REAR

62226-28C00

2
Out of stock

11

SPACER, REAR (10X20X5.75)

62684-28C10

2
Out of stock

12

2

$3.63

In stock

13

BOLT, FRONT (10X64)

62658-02B40

1

$10.35

In stock

14

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

1
Out of stock

15

SHAFT, CENTER (12X87)

62621-02B40

1

$20.33

In stock

16

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

17

ROD SET, CUSHION LEVER | Includes Item(s) 18 - 19 This part replaces 62600-02851.

62600-03850

1
Out of stock

18

2

$15.94

In stock

19

RING, STOPPER

62657-34A01

2
Out of stock

20

SPACER, ROD (12X31X4)

62647-02B40

2

$9.25

In stock

21

1

$23.08

In stock

22

BOLT (12X115)

62622-02B40

1

$20.33

In stock

23

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock
