1999 Suzuki RM80 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1999 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

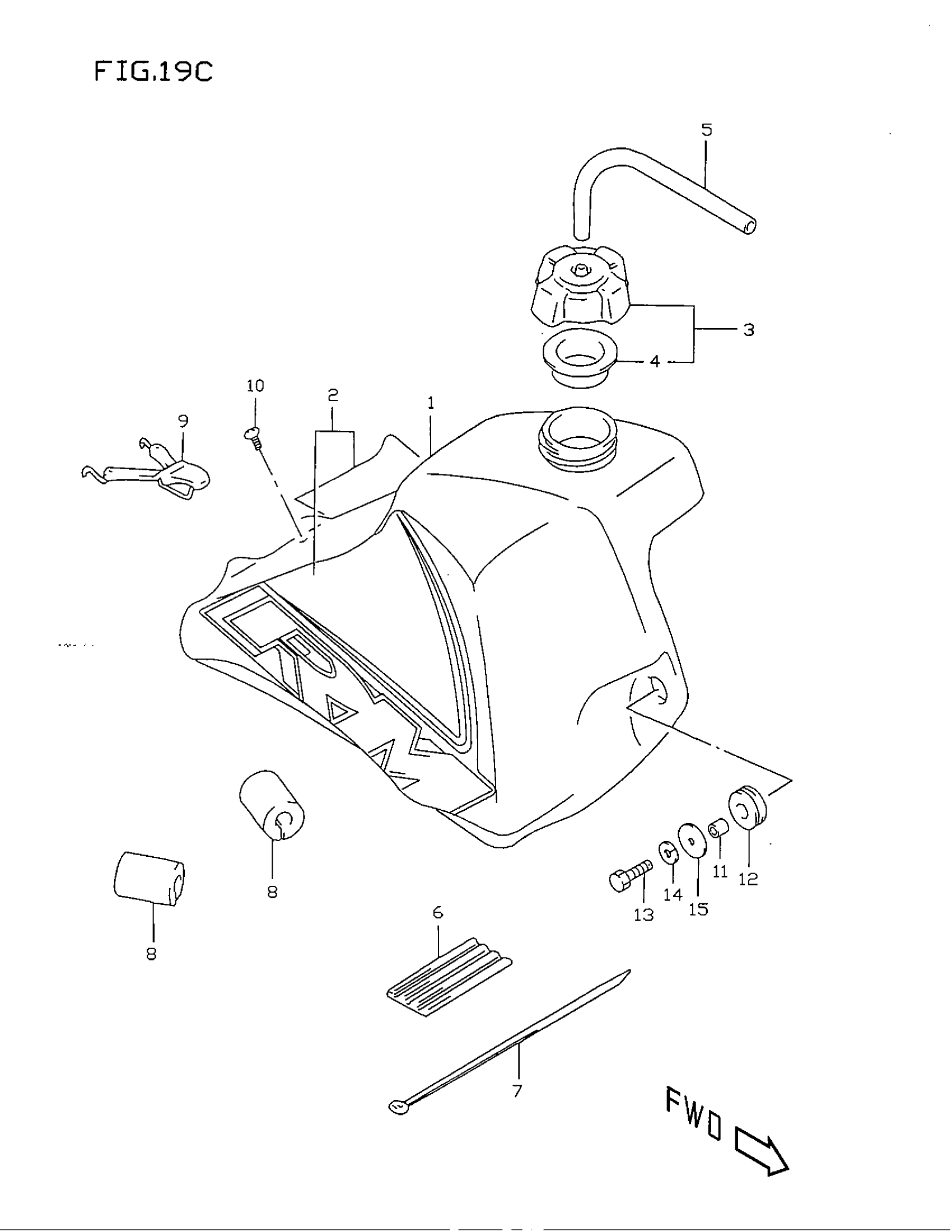

1999 Suzuki RM80 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW)

44110-02B00-25Y

1
Out of stock

2

TAPE SET, FUEL TANK

68110-03B70-M2V

1
Out of stock

3

CAP SET,FUEL TA | Includes Item(s) 4 This part replaces 44200-27870.

44200-27871

1
Out of stock

4

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

6

CUSHION, UPPER FRONT

44541-14300

1
Out of stock

7

CLAMP

09407-25402

1
Out of stock

8

CUSHION, UPPER REAR

44542-17300

2
Out of stock

9

BAND, REAR

44560-26C00

1
Out of stock

10

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

11

SPACER

09180-06289

2
Out of stock

12

CUSHION This part replaces 09320-10029.

09320-10080

2
Out of stock

13

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

2
Out of stock

14

2

$1.97

In stock

15

WASHER

09160-06501

2
Out of stock
