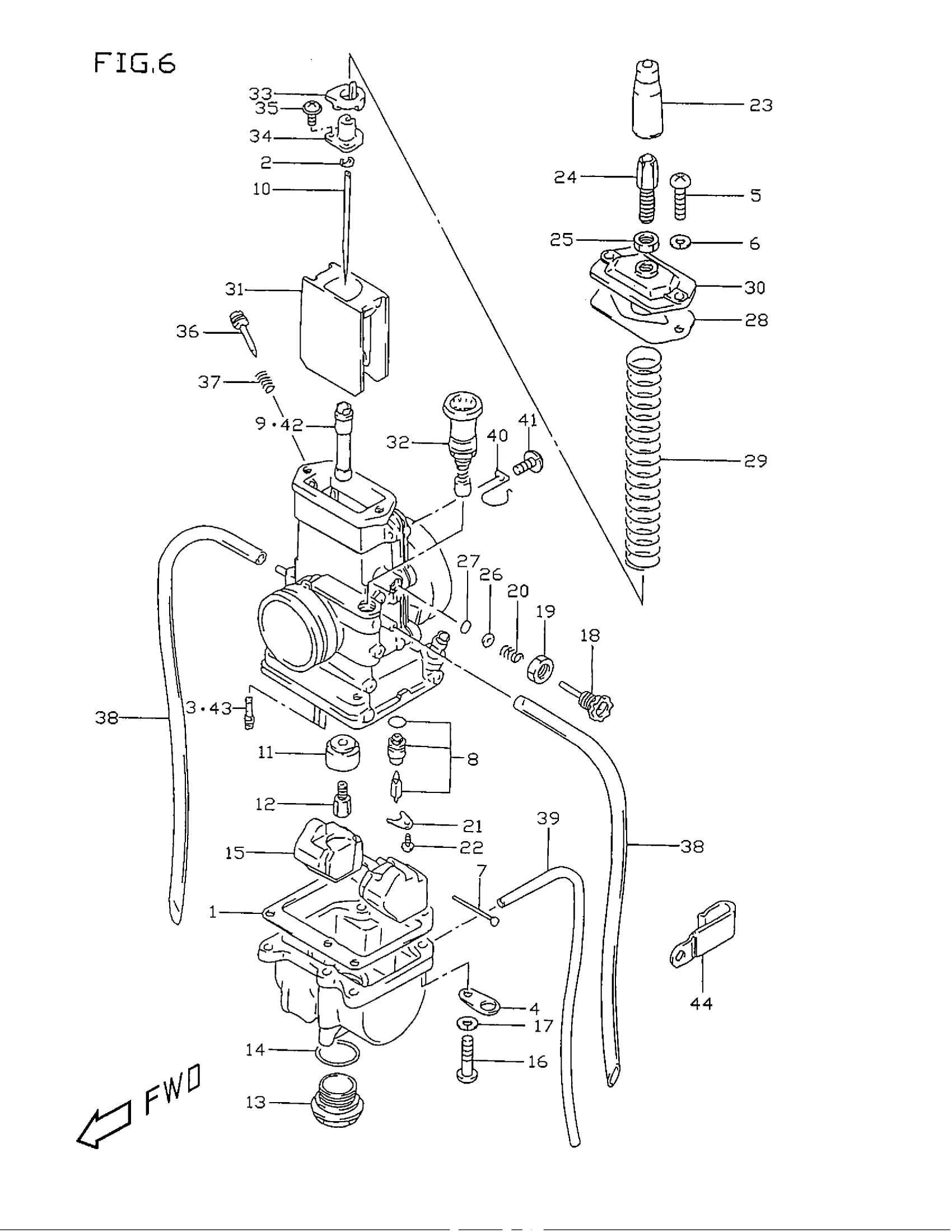

Suzuki RM80 (1999) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 41

13200-03B00

Unavailable

1

GASKET

13251-02B40

$12.43

2

E RING

13394-10010

$6.15

3

JET, PILOT (30)

09492-30006

$9.04

4

PLATE

13693-36500

$3.67

5

SCREW This part replaces 02112-04123.

02112-0412A

$1.27

6

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.92

7

PIN, FLOAT

13254-92311

$2.31

8

VALVE ASSY, NEEDLE

13370-02B50

$83.30

9

JET, NEEDLE (P-4)

09494-00523

Unavailable

10

NEEDLE, JET (5DP39-4)

13383-46900

$21.45

11

RING

13331-28710

Unavailable

12

JET, MAIN (210) | MODEL T/V/W This part replaces 09491-42001.

09491-42005

Unavailable

12

JET, MAIN (210) | MODEL X

09491-42005

Unavailable

13

PLUG, DRAIN

13247-46900

Unavailable

14

O RING

13246-29630

$7.12

15

FLOAT

13252-02B50

Unavailable

16

SCREW This part replaces 02112-04203.

02112-0420A

$1.36

17

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.92

18

ADJUSTER, THROTTLE STOP

13267-16700

$16.77

19

NUT

13661-02B00

$6.00

20

SPRING

13268-35010

$4.28

21

PLATE, NEEDLE VALVE

13373-39110

$6.54

22

SCREW

02112-04087

$1.15

23

CAP, ADJUSTER

13681-33010

$8.92

24

ADJUSTER, CABLE

13577-41612

$6.90

25

NUT

13661-16600

$4.57

26

WASHER

13291-35010

$4.72

27

O RING

13295-33010

$4.28

28

GASKET, TOP

13266-16700

Unavailable

29

SPRING, THROTTLE VALVE

13573-16700

Unavailable

30

CAP, TOP

13261-16700

Unavailable

31

VALVE, PISTON (CA:4.0)

13551-20910

Unavailable

32

PLUNGER ASSY

13410-26410

Unavailable

33

RING

13629-16700

Unavailable

34

CONNECTOR

13398-16700

Unavailable

35

SCREW This part replaces 02112-33103.

02112-3310B

$2.95

36

SCREW, AIR (1 1/2)

13269-16700

$14.73

37

SPRING

13268-01010

$4.29

38

HOSE (3.5X6.5X600) | L:600->330

09351-35653-600

$4.32

39

.HOSE (3X5X600) | L:600->250 This part replaces 09352-30503-600.

09352-30504-600

$4.64

40

CLIP

13692-14500

Unavailable

41

SCREW

13601-04148

$2.80

42

JET, NEEDLE (P-0) | OPT

09494-00519

Unavailable

42

JET, NEEDLE (P-2) | OPT

09494-00522

Unavailable

42

JET, NEEDLE (P-6) | OPT

09494-00585

Unavailable

43

JET, PILOT (25) | OPT

09492-25005

$9.04

43

JET, PILOT (35) | OPT

09492-35004

Unavailable

44

CLAMP This part replaces 09403-06307.

09403-06329

$2.52
