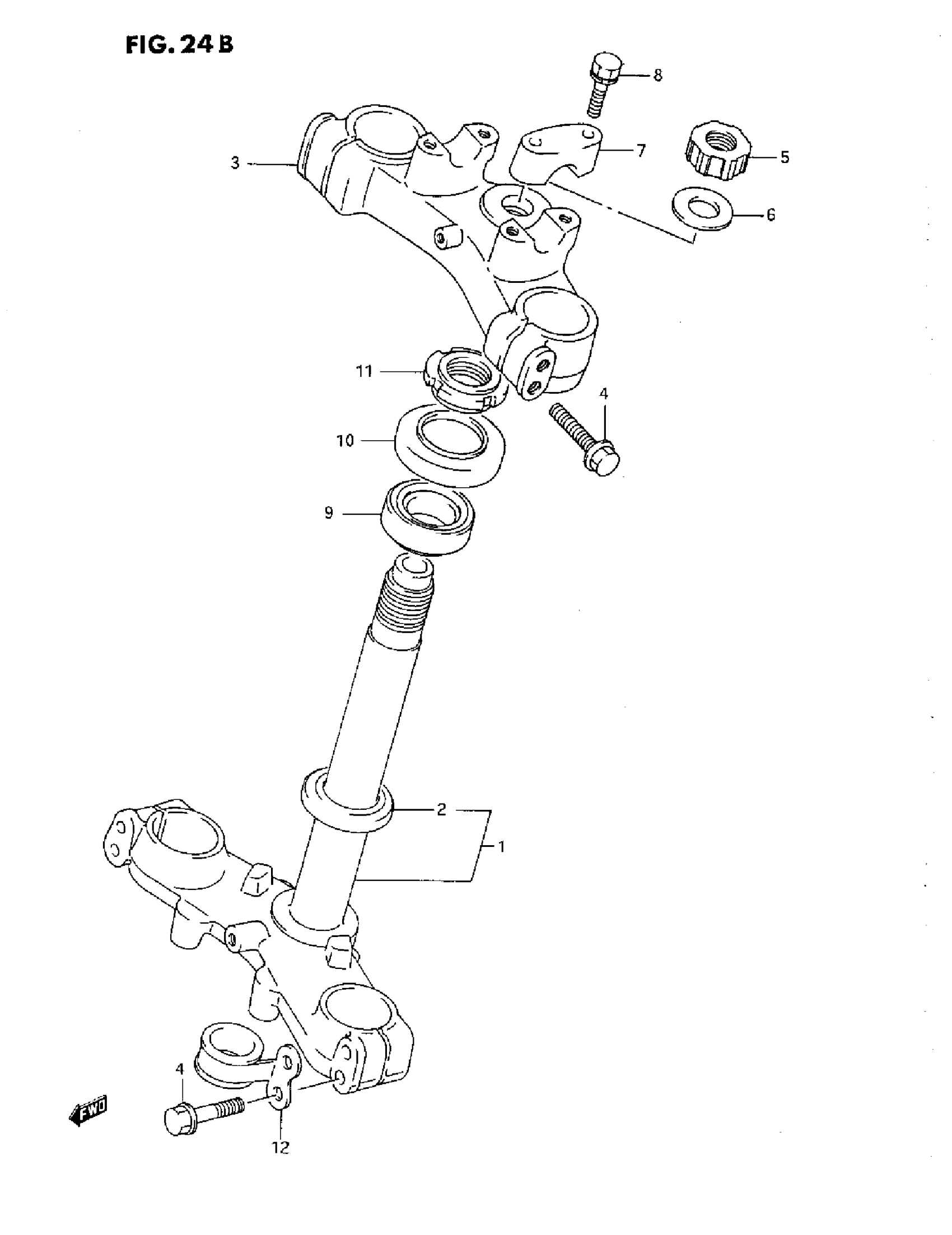

Suzuki RM80 (1993) STEERING STEM (L/M/N/P/R) Diagram

#

Description
Price

1

STEM, STEERING

51410-02B40

Unavailable

2

.BEARING (26X47X15) This part replaces 09265-26001.

09265-26002

$47.18

3

STEM HEAD, STEERING

51311-02B40

Unavailable

4

BOLT This part replaces 01517-08407.

01550-08407

$3.42

5

NUT | MODEL L This part replaces 51353-02B20.

51353-14D00

Unavailable

5

NUT | MODEL M/N/P This part replaces 51353-02B21.

51353-14D00

Unavailable

5

NUT | MODEL R

51353-14D00

Unavailable

6

WASHER | MODEL L This part replaces 51356-02B20.

51354-14D00

$12.08

6

WASHER | MODEL M/N/P This part replaces 51356-02B21.

51354-14D00

$12.08

6

WASHER | MODEL R

51354-14D00

$12.08

7

HOLDER, HANDLE UPPER

56211-27100

$15.23

8

BOLT This part replaces 01517-08357.

01550-08357

$3.49

9

BEARING (25X47X15) This part replaces 09265-25030.

09265-25038

$45.57

10

SEAL, STEERING DUST | MODEL L This part replaces 51643-34A00.

51643-49002

$12.32

10

SEAL, STEERING UPR DUST | MDOEL M/N/P/R

51643-03B00

$13.05

11

NUT, STEERING STEM | MODEL L

51631-28000

$17.37

11

NUT, STEERING | MODEL M/N/P/R

51631-03B00

$23.32

12

CLIP, LOWER LH

51452-02B00

Unavailable
