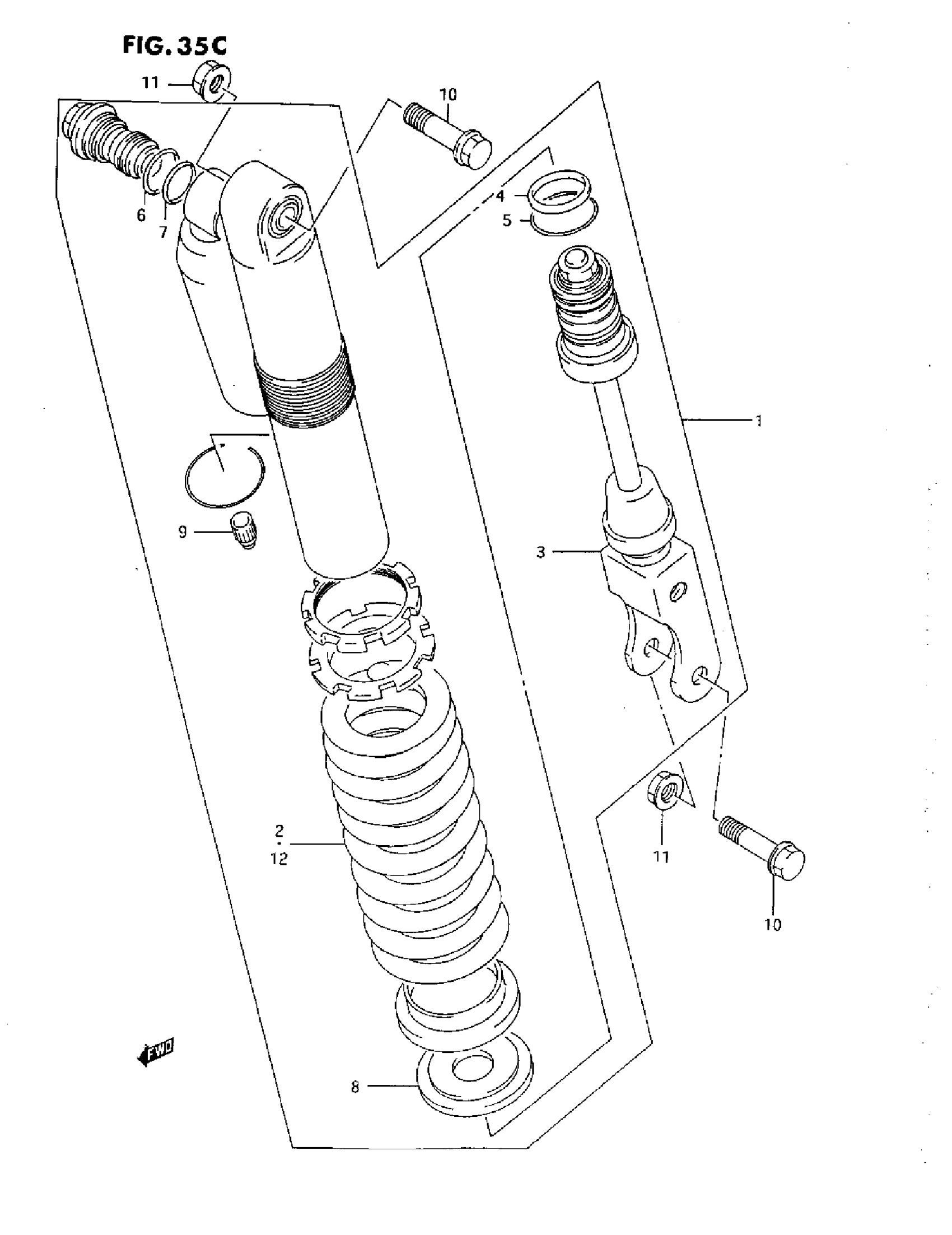

Suzuki RM80 (1993) SHOCK ABSORBER (M/N/P/R) Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (BLACK) (BLACK) (BLACK) This part replaces 62100-03B00-163.

62100-03B01-019

Unavailable

2

SPRING (K=4.89) This part replaces 62211-02B70.

62211-02B70-163

Unavailable

3

ROD, PISTON

62120-03B00

Unavailable

4

O RING

62153-03B00

Unavailable

5

RING, ROD STOPPER

62279-03B00

Unavailable

6

0 RING

62131-27C40

$5.43

7

O RING This part replaces 62132-27C40.

51175-03B30

$6.83

8

SEAT, SPRING STOPPER

62225-17C00

$36.87

9

CAP

51294-20400

$8.32

10

BOLT

62648-14500

$4.09

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

12

SPRING (SOFT) | OPT

62211-03B00

Unavailable

12

SPRING (HARD) | OPT

62211-03B10

Unavailable
