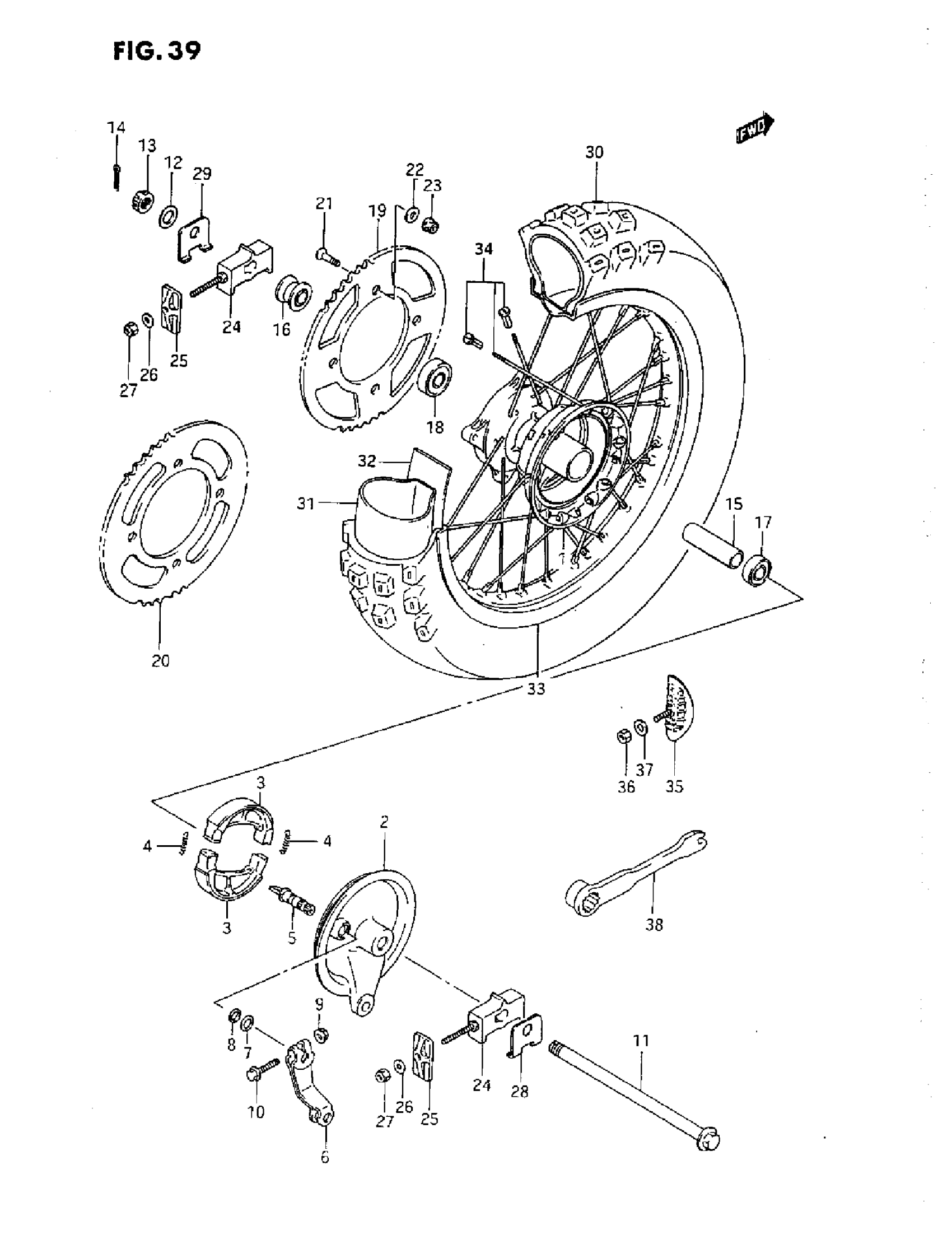

Suzuki RM80 (1993) REAR WHEEL (G/H/J/K) Diagram

#

Description
Price

1

DIAM, REAR HUB (WHITE) | MODEL G/H/J This part replaces 64110-20413.

64110-02B10

Unavailable

1

DRUM, REAR HUB (WHITE) | MODEL K

64110-02B10

Unavailable

2

PANEL, REAR HUB (WHITE) | MODEL G/H/J This part replaces 64210-20411.

64210-02B10

Unavailable

2

PANEL, REAR HUB (WHITE) | MODEL K

64210-02B10

Unavailable

3

SHOE SET, BRAKE | MODEL G/H/J This part replaces 64410-20402.

64400-02810

Unavailable

3

SHOE SET, BRAKE | MODEL K This part replaces 64410-02B20.

64400-02810

Unavailable

4

SPRING, BRAKE SHOE (L:33) | MODEL G

09443-07025

$1.68

4

SPRING | MODEL H/J/K This part replaces 09443-07001.

09443-07025

$1.68

5

CAM, REAR BRAKE

54441-20900

Unavailable

6

LEVER, BRAKE CAM

64451-02B00

Unavailable

7

WASHER

09160-12011

$1.48

8

DUST SEAL

09280-12001

$3.25

9

NUT This part replaces 09159-06017.

08319-31067

$2.01

10

BOLT This part replaces 01517-06307.

01550-06307

$2.73

11

NO DESCRIPTION AVAILABLE This part replaces 64711-02B00.

64711-02B0V

Unavailable

12

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

$2.79

13

NUT

09141-14004

$3.52

14

PIN This part replaces 04111-30308.

04111-3030A

$1.37

15

SPACER, HUB BEARING

09180-15069

$17.21

16

SPACER, AXLE LH

64740-20521

Unavailable

17

BEARING, RH

08123-60027

$25.32

18

BEARING, LH

08123-62027

$17.01

19

SPROCKET, REAR (NT:50) | MODEL G/H/J

64511-02B01

Unavailable

19

SPROCKET, REAR (NT:49) | MODEL G/H/J OPT

64511-02B10

Unavailable

19

SPROCKET, REAR (NT:51) | MODEL G/H/J OPT

64511-02B20

Unavailable

19

SPROCKET, REAR (NT:48) | MODEL G/H/J OPT

64511-02B30

Unavailable

20

SPROCKET, REAR (NT:48) | MODEL K

64511-20920

Unavailable

20

SPROCKET, REAR (NT:46) | MODEL K OPT

64511-20980

Unavailable

20

SPROCKET, REAR (NT:47) | MODEL K OPT

64511-20550

Unavailable

20

SPROCKET, REAR (NT:49) | MODEL K OPT

64511-02B40

Unavailable

21

BOLT | MODEL G/H/J

09120-08010

$2.39

21

BOLT | MODEL K

09120-08004

$2.95

22

WASHER This part replaces 08322-21088.

08322-01087

$1.86

23

NUT

08319-31087

$2.31

24

ADJUSTER, CHAIN

61410-02B02

Unavailable

25

PLATE,CHAIN ADJ This part replaces 61421-02B00.

61421-02B0V

$7.85

26

WASHER This part replaces 08322-21067.

08322-01067

$1.86

27

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

28

GUIDE WASHER, RH

64712-02B00

$4.05

29

GUIDE WASHER, LH

64713-02B00

$3.90

30

TIRE, REAR (90/100-14) | MODEL G ->65100-02810 This part replaces 65100-02B00.

65110-02B40

Unavailable

30

TIRE, REAR (90/100-14) | MODEL H/J This part replaces 65100-02B10.

65110-02B40

Unavailable

30

TIRE, REAR (90/100-14) | MODEL K This part replaces 65100-02B11.

65110-02B40

Unavailable

31

TUBE ASSY, INNER This part replaces 65200-20300.

65200-02B40

Unavailable

32

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.90

33

RIM, WHEEL (L6OXL4)

65311-02B00

Unavailable

34

SPOKE ASSY, REAR

65320-20410

Unavailable

35

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$66.32

36

NUT This part replaces 08310-12088.

08310-00087

$1.83

37

WASHER This part replaces 08322-11088.

08322-01087

$1.86

38

BOX, SPANNER | MODEL K

09816-00126

Unavailable
