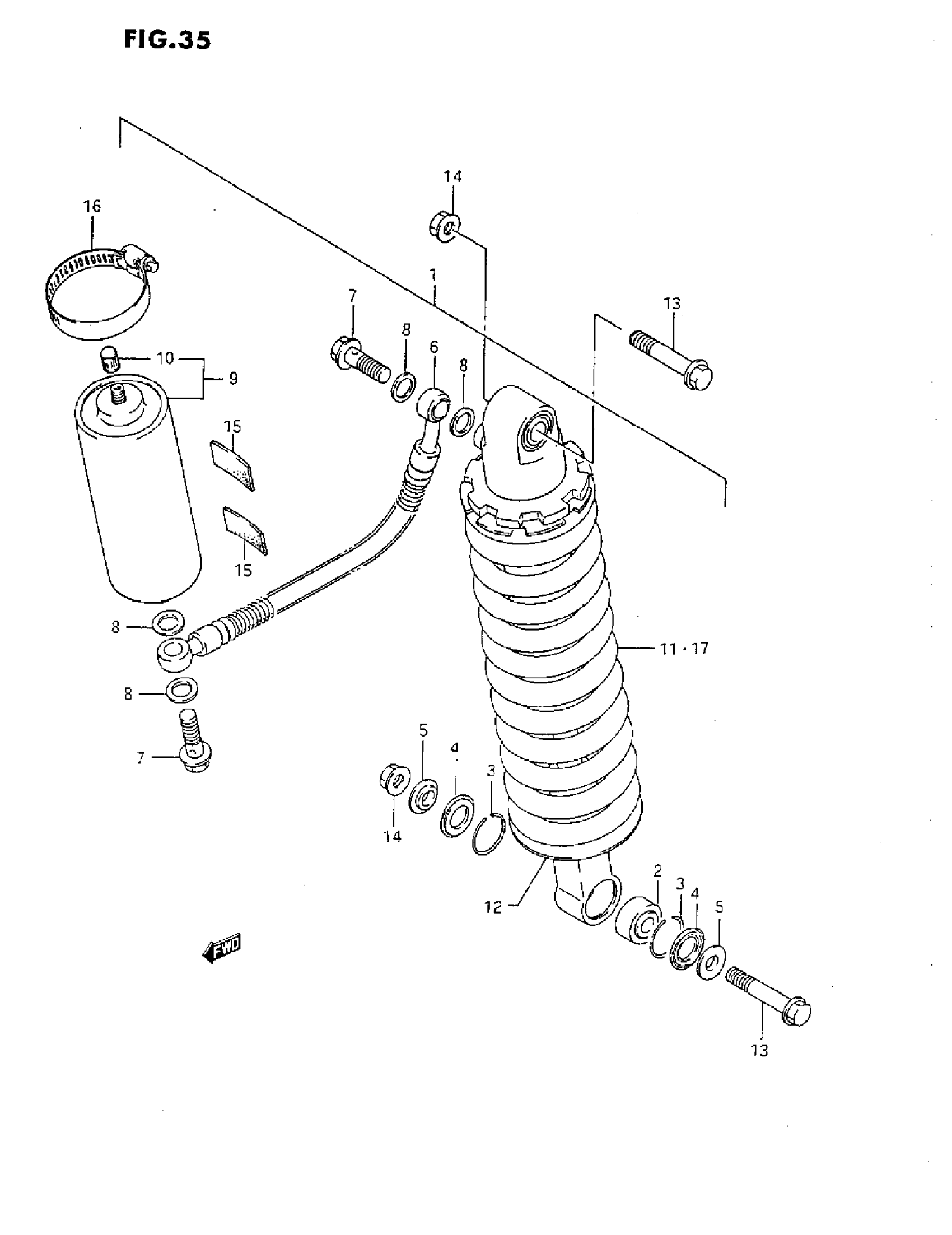

Suzuki RM80 (1993) REAR SHOCK ABSORBER (H/J) Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | YELLOW

62100-02B30-163

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 62175-20920.

62175-00B00

$61.15

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$1.99

4

DUST SEAL

62226-02B00

$13.05

5

COLLAR

62684-31300

$12.40

6

HOSE

62280-02B00

Unavailable

7

BOLT

62281-20900

Unavailable

8

WASHER (10X15X1.5)

09161-10009

$1.84

9

TANK

62270-02B00

Unavailable

10

CAP

51294-40400

$8.12

11

SPRING

62211-02B30

Unavailable

12

SEAT

62249-02B30

Unavailable

13

BOLT

62648-14500

$4.34

14

NUT

08319-31107

$2.73

15

CUSHION

62423-02B00

Unavailable

16

CLAMP This part replaces 09402-70501.

09402-70503

$18.42

17

SPRING (HARD) | OPT

62211-02B35

Unavailable
