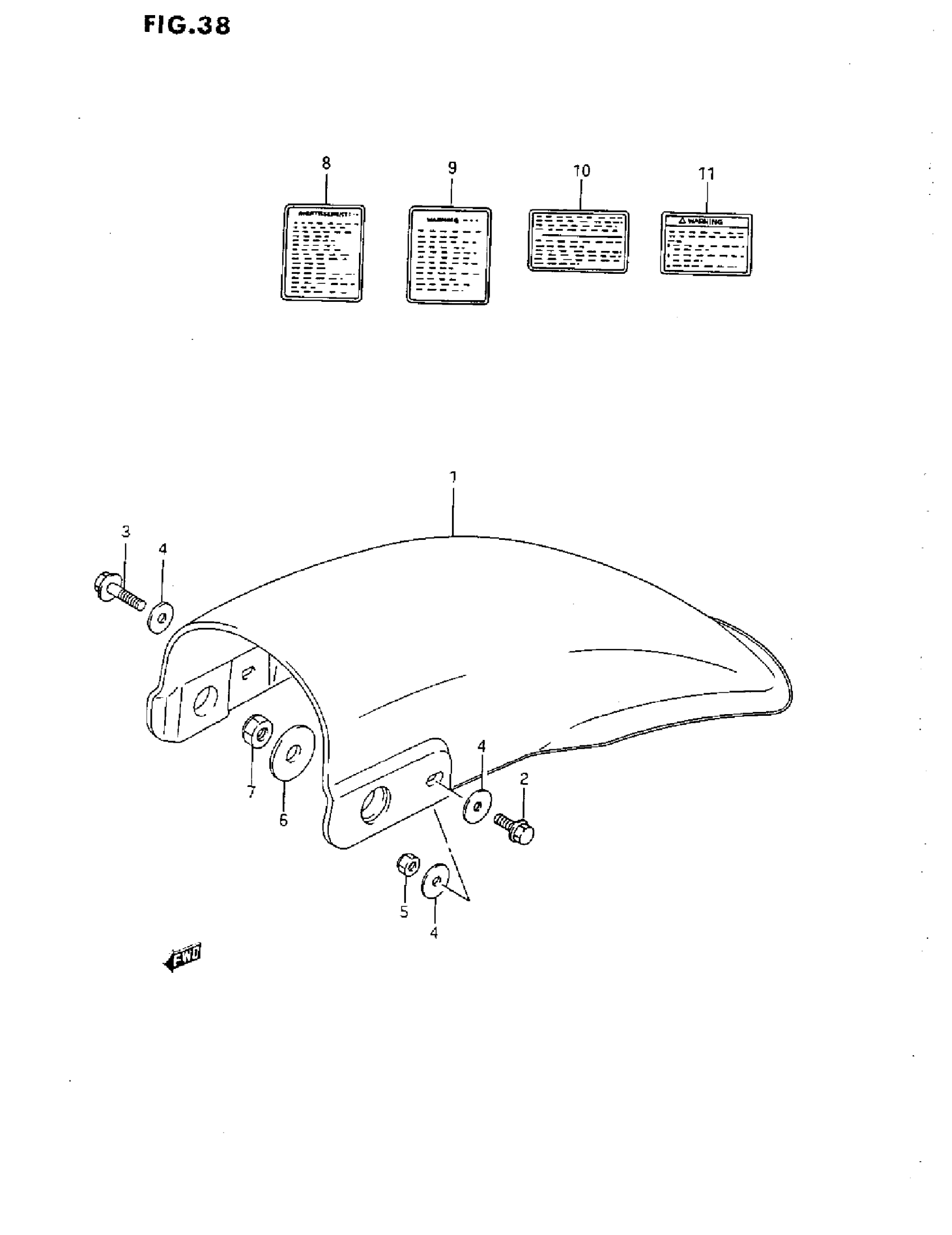

Suzuki RM80 (1993) REAR FENDER (G/H/J/K/L/M) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW) | MODEL G This part replaces 63111-02B00-163.

63111-02B00-25Y

Unavailable

1

FENDER, REAR (YELLOW) | MODEL H/J/K/L/M

63111-02B00-25Y

Unavailable

2

SCREW | MODEL G/H/J This part replaces 02142-06166.

02142-0616A

$1.49

2

BOLT, LH | MODEL K/L/M

01547-06167

$1.65

3

BOLT, REAR | MODEL G/H/J This part replaces 01107-06307.

01500-06307

$2.48

3

BOLT, RH | MODEL K/L/M

01547-06307

$2.03

4

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

5

.NUT This part replaces 08319-21066.

08319-2106A

$1.91

6

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

7

NUT

09159-10027

$3.10

8

LABEL, WARNING | MODEL G/H/J/K

68366-46001

Unavailable

8

LABEL, WARNING | MODEL L/M

68369-02B50

Unavailable

9

LABEL, WARNING | MODEL G/H/J/K

68372-46001

Unavailable

9

LABEL, WARNING | MODEL L/M

68369-02B40

$7.05

10

LABEL, WARNING | MODEL G/H/J/K

68369-41300

Unavailable

10

LABEL,WARNING | MODEL L/M This part replaces 68369-02B30.

68369-02B31

Unavailable

11

LABEL,GENERAL W | MODEL L/M This part replaces 68319-28C00.

68319-33E02

$7.25
