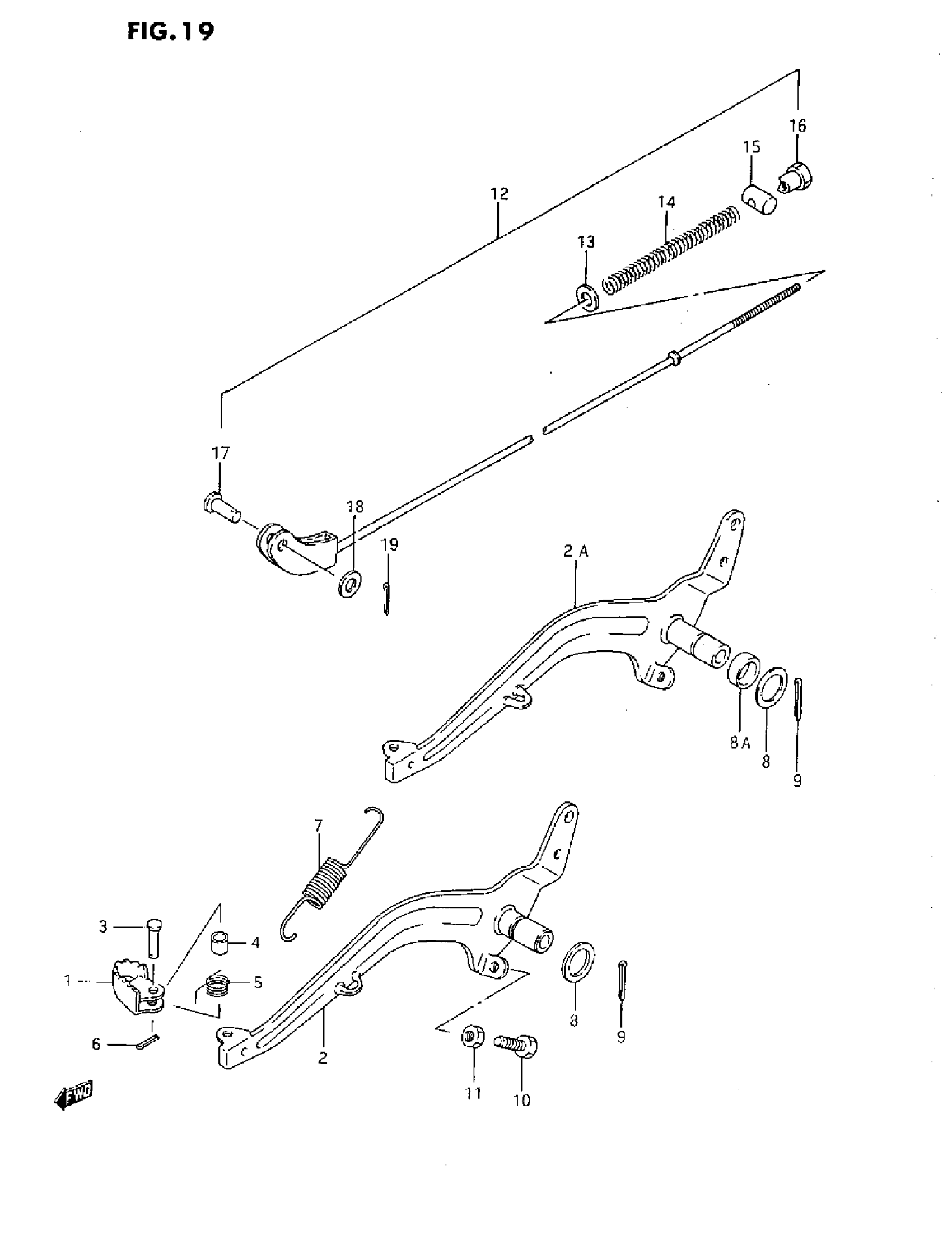

Suzuki RM80 (1993) REAR BRAKE (G/H/J/K) Diagram

#

Description
Price

1

PEDAL, BRAKE | MODEL G

43110-14130

$16.15

1

PEDAL, BRAKE | MODEL H/J/K

43110-01B10

Unavailable

2

ARM, BRAKE PEDAL | MODEL G This part replaces 43120-02B00.

43120-02B11

Unavailable

2

ARM, BRAKE PEDAL | MODEL H/J

43120-02B11

Unavailable

2

ARM, BRAKE PEDAL | MODEL K

43120-02B20

Unavailable

3

PIN | MODEL G

09200-06038

$2.38

3

PIN | MODEL H/J/K

09200-06060

Unavailable

4

SPACER

09180-06137

Unavailable

5

SPRING | MODEL G This part replaces 09444-11004.

09444-11005

$2.86

5

SPRING | MODEL H/J/K

09444-11005

$2.86

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

7

SPRING | MODEL G This part replaces 09443-13015.

09443-13024

$4.50

7

SPRING | MODEL H/J/K

09443-13024

$4.50

8

WASHER

09160-15002

$1.91

8

SPACER | MODEL K

09180-15053

Unavailable

9

PIN This part replaces 04111-25258.

04111-2530A

$1.49

10

BOLT, ADJUSTER

09128-06028

$1.98

11

.NUT This part replaces 08310-11067.

08310-00067

$2.13

12

ROD ASSY, REAR BRAKE

43300-02B00

Unavailable

13

WASHER This part replaces 08322-21067.

08322-01067

$2.13

14

-SPRING

09440-09004

$2.20

15

PIN, REAR

09209-11002

$2.19

16

.NUT This part replaces 09150-06009.

09150-06010

$3.10

17

PIN

09200-06025

Unavailable

18

WASHER This part replaces 08322-21067.

08322-01067

$2.13

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
