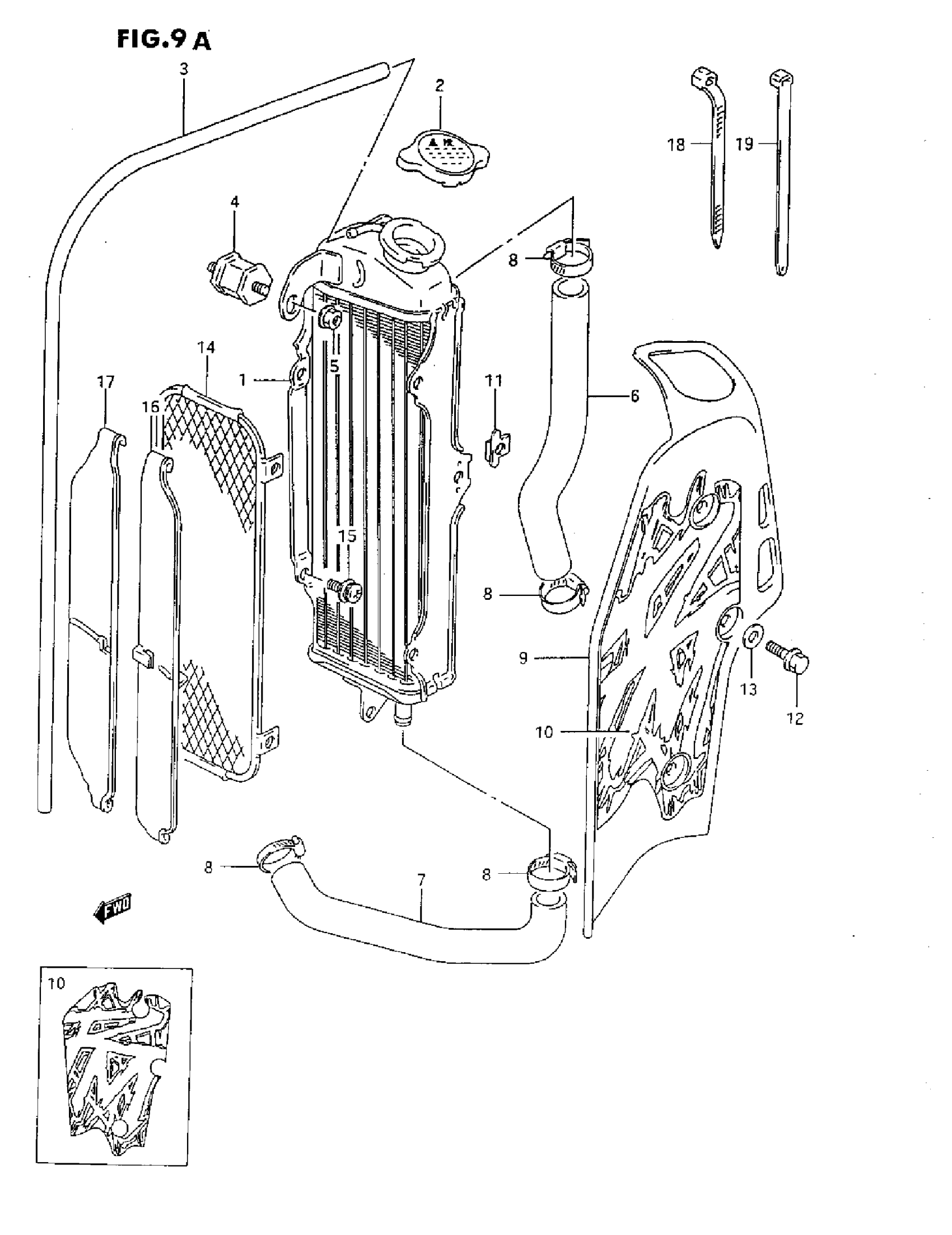

Suzuki RM80 (1993) RADIATOR (R) Diagram

#

Description
Price

1

RADIATOR, WATER This part replaces 17710-02B03.

17710-02B04

Unavailable

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

$42.50

3

HOSE (5X8X2000) This part replaces 09351-50801-600.

09351-50803-00B

$9.10

4

BOLT,RADIATOR C This part replaces 17788-02B01.

17788-02B02

Unavailable

5

NUT This part replaces 08316-10063.

08316-1006B

$2.50

6

HOSE, INLET

17851-02B40

Unavailable

7

HOSE, OUTLET

17852-02B40

Unavailable

8

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

9

COVER, RADIATOR

17761-20931-25Y

Unavailable

10

TAPE SET

68671-03B30-C2M

Unavailable

11

PLATE, FITTING

17785-20930

Unavailable

12

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

13

WASHER (6.5X18X1.0)

09160-06028

$1.49

14

BUMPER, RADIATOR

17810-02B40

Unavailable

15

SCREW This part replaces 02112-76103.

02112-7610A

$2.28

16

NO DESCRIPTION AVAILABLE This part replaces 17831-20900-25Y.

17830-20900-25Y

Unavailable

17

LOUVER, RADIATOR INNER

17832-20900-25Y

Unavailable

18

CLAMP (L:235)

09407-25401

$4.66

18

CLAMP (L:125)

09407-14403

$2.26

19

CLAMP (L:214)

09407-22404

Unavailable
