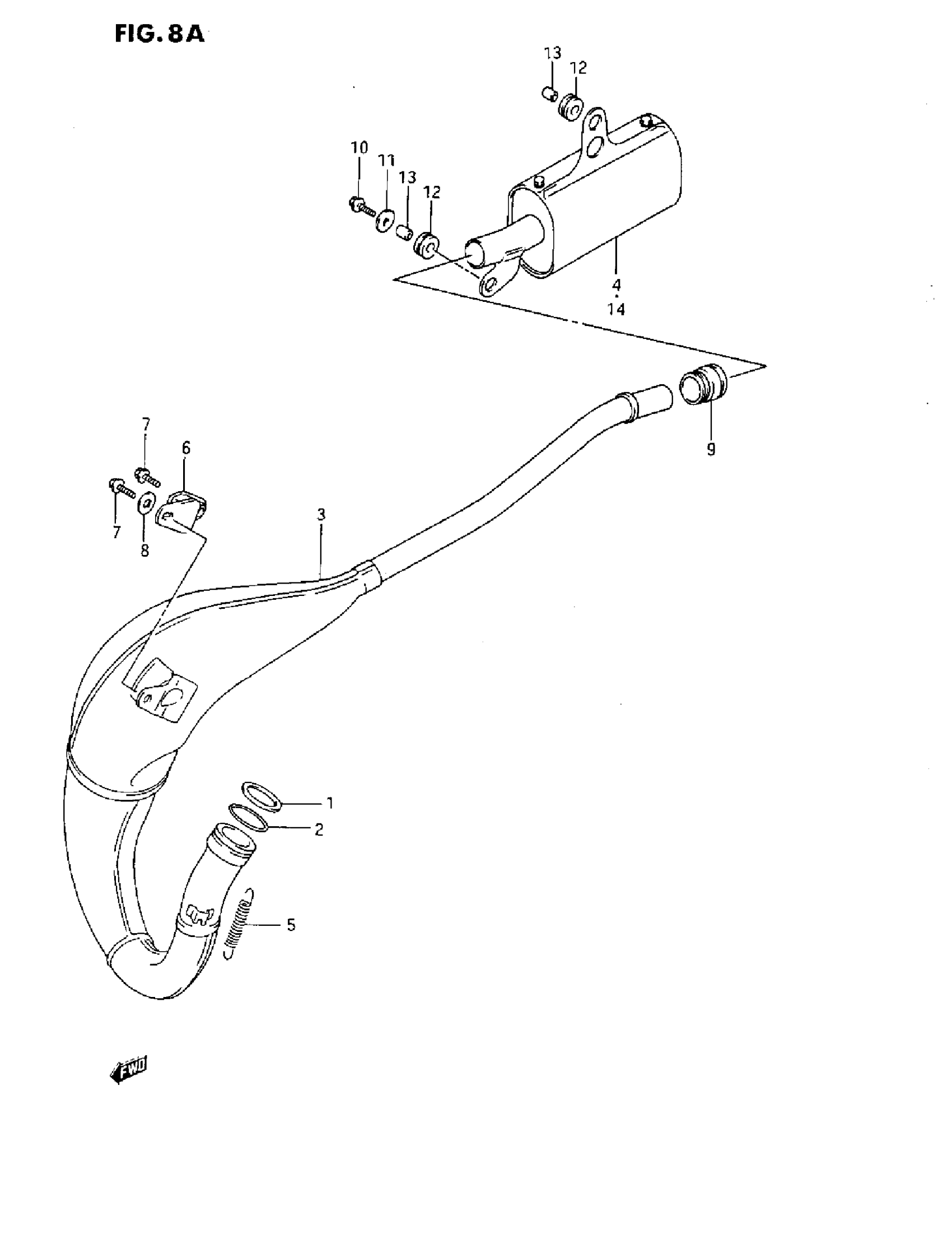

Suzuki RM80 (1993) MUFFLER (K/L/M/N/P/R) Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-02B40

Unavailable

2

O-RING, EXHAUST PIPE

14171-02B40

Unavailable

3

MUFFLER, 1ST | MODEL K/L This part replaces 14310-02B41-H01.

14310-02B42

Unavailable

3

MUFFLER, 1ST | MODEL M/N/P/R This part replaces 14310-02B42-H01.

14310-02B42

Unavailable

4

MUFFLER, 2ND This part replaces 14330-02B70-H01.

14330-03B00

Unavailable

5

SPRING

09443-12033

$4.78

6

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

7

BOLT | MODEL K/L/M/N This part replaces 01547-06165.

01547-0616B

$2.45

7

BOLT | MODEL P/R This part replaces 01547-06163.

01547-0616B

$2.45

8

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

9

CONNECTOR, 2ND MUFFLER | MODEL K

14771-48002

$13.04

9

CONNECTOR | MODEL L/M/N This part replaces 14771-02B00.

14771-48002

$13.04

9

CONNECTOR, 2ND MUFFLER | MODEL P/R

14771-48002

$13.04

10

BOLT

01547-06207

$2.01

11

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

12

CUSHION

09320-08037

$3.72

13

SPACER This part replaces 09180-06152.

09180-06262

$2.55

14

SILENCER, MUFFLER I | MODEL P/R OPT

14351-02B50

Unavailable
