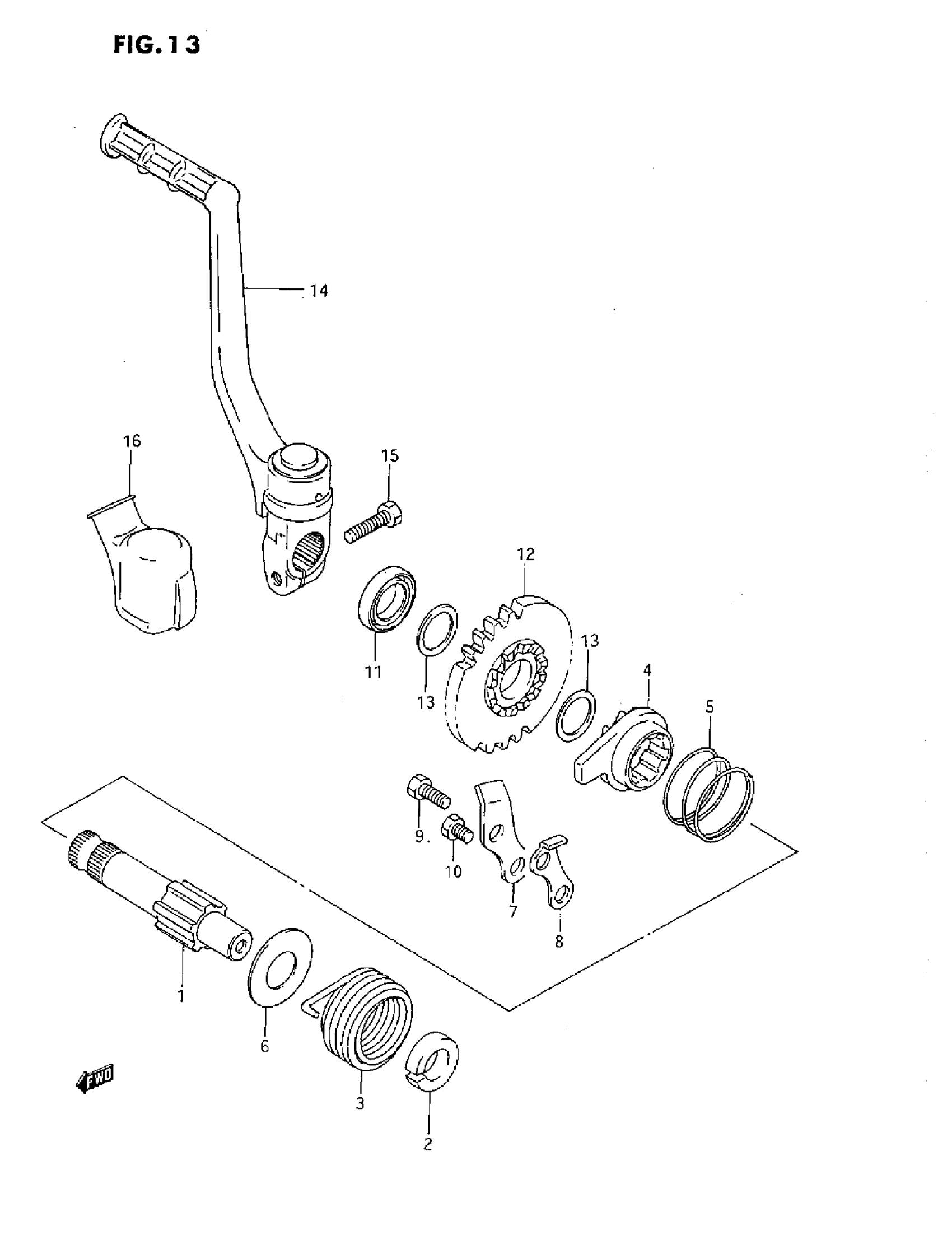

Suzuki RM80 (1993) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-02B02.

26211-02B04

$97.05

2

GUIDE, SPRING

26221-02B00

$3.25

3

SPRING | MODEL G/H/J

09448-34003

Unavailable

3

SPRING | MODEL K/L/M/N/P/R

09448-35007

$10.77

4

STARTER, KICK This part replaces 26231-02B00.

26231-02B02

$36.17

5

SPRING

09440-31002

$2.22

6

PLATE

08211-12301

$2.03

7

GUIDE, KICK STARTER

26232-40200

$7.08

8

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

9

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

10

BOLT, PLATE (6X8) | MODEL G/H/J This part replaces 09100-06092.

09100-06157

$2.72

11

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

12

GEAR, KICK DRIVE (NT:23) | MODEL G/H/J

26241-02B01

Unavailable

12

GEAR, KICK DRIVE (NT:26) | MODEL K/L/M/N/P/R This part replaces 26241-02B40.

26241-02B41

$83.92

13

WASHER (14X20X1.0) This part replaces 08211-14201.

09181-14139

$2.60

14

LEVER, KICK STARTER | MODEL G This part replaces 26300-02B01.

26300-02B12

$125.18

14

LEVER, KICK STARTER | MODEL H/J/K/L/M/N/P This part replaces 26300-02B11.

26300-02B12

$125.18

14

LEVER, KICK STARTER | MODEL R

26300-02B12

$125.18

15

BOLT, GEAR SHIFT LINK | MODEL G This part replaces 01107-06205.

01500-0620A

$1.78

15

BOLT | MODEL H/J/P/R This part replaces 01107-06207.

01500-06207

$2.28

15

BOLT | MODEL K/L/M This part replaces 09100-06144.

01500-06207

$2.28

15

BOLT | MODEL N This part replaces 01107-06207.

01500-06207

$2.28

16

COVER,JOINT This part replaces 26341-20401.

26341-20402

$8.52
