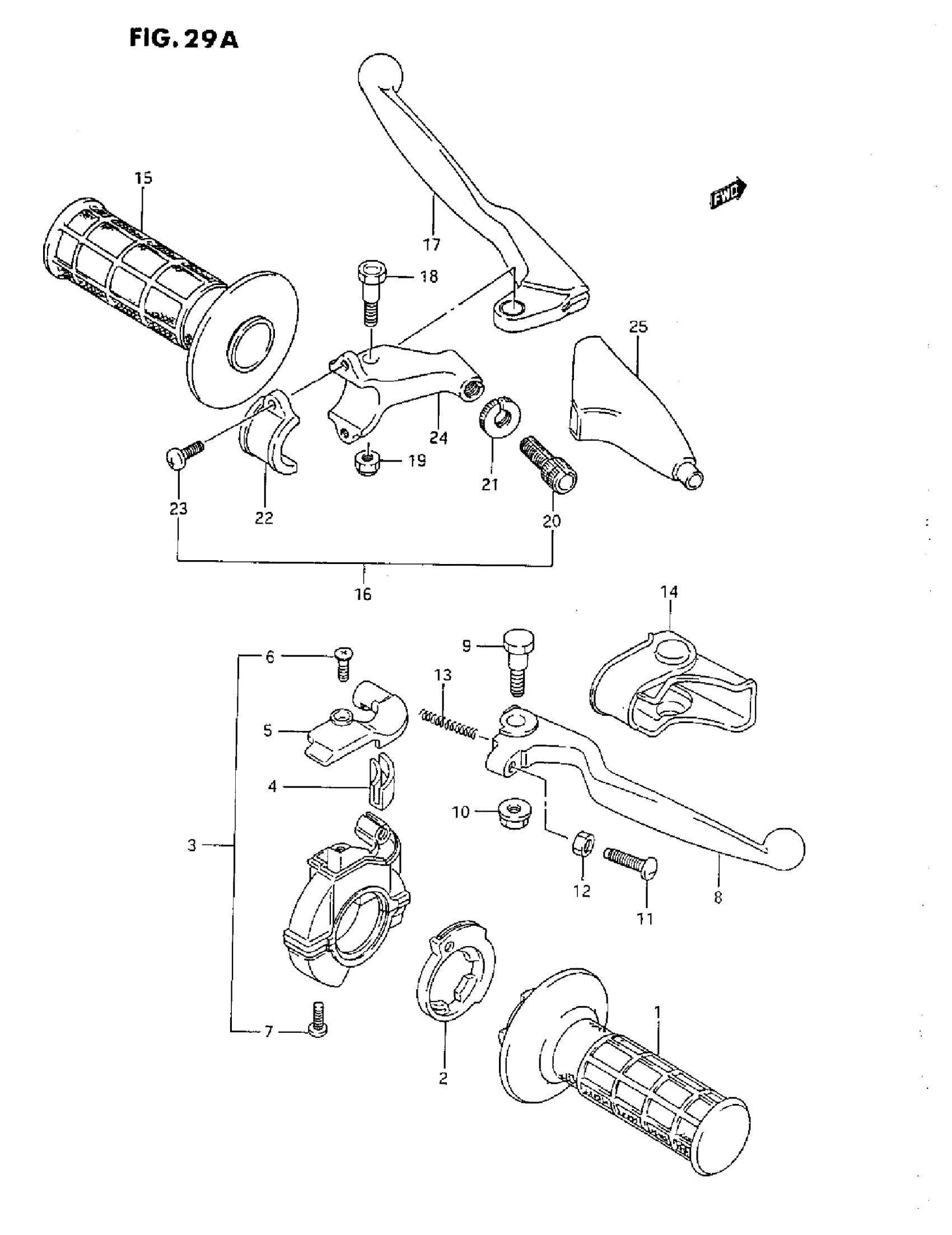

Suzuki RM80 (1993) HANDLE SWITCH (K/L/M/N/P/R) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-20410

$7.22

3

CASE ASSY, THROTTLE

57100-20411

Unavailable

4

GUIDE, PIECE

57122-20410

$6.38

5

COVER

57129-20411

$11.95

6

SCREW This part replaces 02132-04105.

02122-0410A

$1.49

7

SCREW

02112-05167

$1.97

8

LEVER, BRAKE

57421-27C00

$14.24

9

BOLT, BRAKE LEVER

57431-14500

$6.28

10

NUT This part replaces 57442-14500.

08316-1006B

$2.50

11

BOLT, ADJUST

57431-14511

$5.80

12

NUT This part replaces 08310-12055.

08310-0005A

$1.84

13

SPRING, RETURN

57318-14502

$4.48

14

COVER, BRAKE LEVER

57341-14501

$7.97

15

GRIP LH

57211-27C00

$12.28

16

LEVER ASSY, CLUTCH

57500-14300

Unavailable

17

LEVER, CLUTCH

57620-14300

$20.83

18

BOLT

57431-14301

$6.43

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

20

ADJUSTER, CABLE

57441-14210

$8.44

21

NUT

57442-14200

$6.72

22

BRACKET

57512-14300

$40.93

23

SCREW

09125-05102

$1.61

24

HOLDER, LEVER

57511-14300

Unavailable

25

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

25

CALIPER ASSY, LH (WHITE) | MODEL G/H/J ->59300-02BOI This part replaces 59300-02B00.

59300-02B05

Unavailable

25

CALIPER ASSY, LH (WHITE) | MODEL K ->59300-02BO3 This part replaces 59300-02B01.

59300-02B05

Unavailable

25

CALIPER ASSY, LH (WHITE) | MODEL L ->59300-02BO4 This part replaces 59300-02B03.

59300-02B05

Unavailable

25

CALIPER ASSY, LH (WHITE) | MODEL M/N/P/R This part replaces 59300-02B04.

59300-02B05

Unavailable
