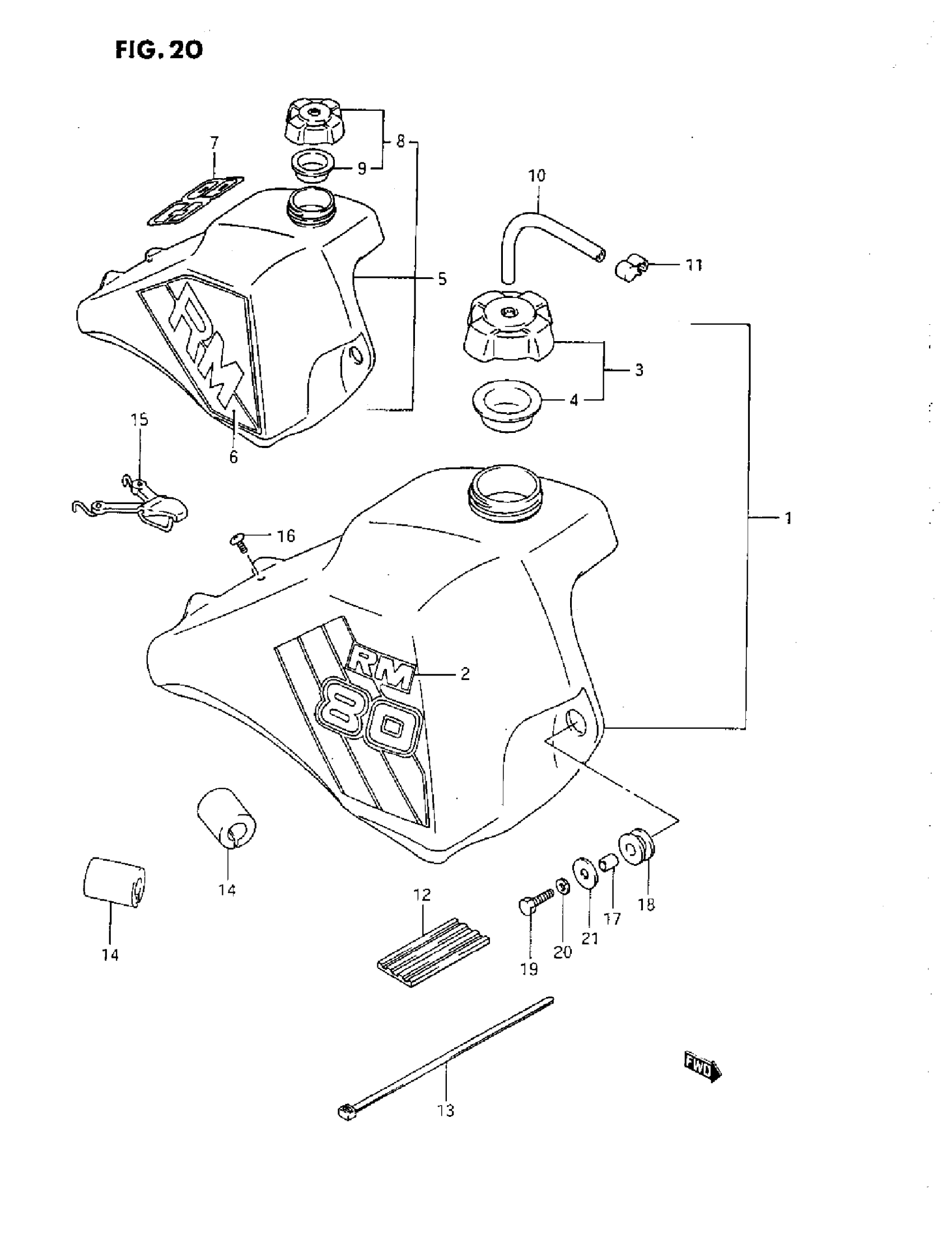

Suzuki RM80 (1993) FUEL TANK (G/H) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 44100-02B00-163.

44100-02850-163

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 68110-02B00-74H.

68110-02B01-74H

Unavailable

3

CAP SET,FUEL TA | MODEL G This part replaces 44200-14820.

44200-27871

$22.96

4

GASKET | MODEL G This part replaces 44248-40400.

44248-05211

$3.76

5

TANK, FUEL (YELLOW) | MODEL H This part replaces 44100-02860-25Y.

44110-02B00-25Y

Unavailable

6

TAPE SET, FUEL TANK | MODEL H

68110-02B10-9BV

Unavailable

7

EMBLEM, FUEL TANK | MODEL H This part replaces 68111-02B00-9BV.

68111-03B00-0WN

Unavailable

8

CAP SET,FUEL TA | MODEL H This part replaces 44200-14820.

44200-27871

$22.96

9

GASKET | MODEL H This part replaces 44248-40400.

44248-05211

$3.76

10

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

11

CLAMP

44486-32101

$3.65

12

CUSHION, UPPER FRONT

44541-14300

$8.12

13

CLAMP | MODEL G

09407-25401

$4.66

13

CLAMP | MODEL H This part replaces 09407-20401.

09407-25402

$4.64

14

CUSHION, UPPER REAR

44542-17300

$8.12

15

BAND, REAR

44560-02B00

Unavailable

16

SCREW This part replaces 09125-06009.

09125-06073

$1.84

17

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

18

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

19

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

20

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

21

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

$1.86
