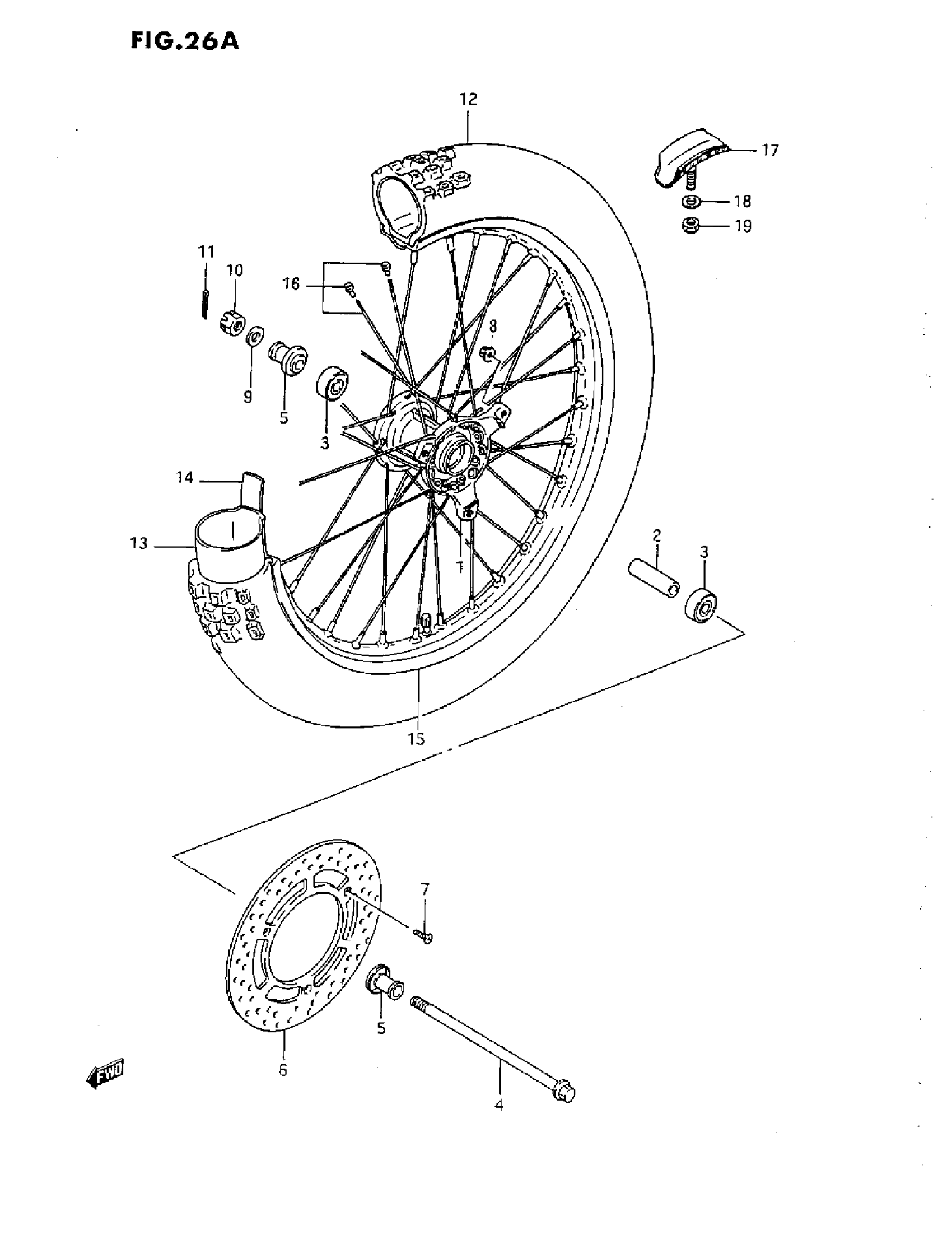

Suzuki RM80 (1993) FRONT WHEEL (L/M/N/P/R) Diagram

#

Description
Price

1

HUB, FR WHEEL This part replaces 54111-02B41.

54111-02B42

$316.32

2

SPACER, FR HUB BEARING

54731-02B40

$13.67

3

BEARING

08133-62017

$18.47

4

AXLE, FRONT

54711-02B40

$43.68

5

SPACER, FR AXLE

54740-02B40

$15.68

6

DISC,FRONT BRAK This part replaces 59221-02B20.

59221-02B21

Unavailable

7

SCREW

09126-06009

$2.70

8

NUT

08319-31067

$2.03

9

WASHER

08211-12204

$4.32

10

NUT | MODEL L/M/N/P This part replaces 08314-41128.

08314-4012A

$2.50

10

NUT | MODEL R This part replaces 08314-40123.

08314-4012A

$2.50

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

TIRE, FRONT (70/100-17) This part replaces 55110-02B40.

55110-02B41

Unavailable

13

TUBE ASSY, WHEEL INNER This part replaces 55200-02B40.

55200-08G01

$22.77

14

PROTECTOR

55261-02B40

$6.88

15

RIM, FRONT, WHEEL (1.4OXL7)

55311-02B00

Unavailable

16

SPOKE SET, FRONT WHEEL

55320-02B00

Unavailable

17

STOPPER, BEAD

65270-28600

$54.75

18

WASHER | MODEL L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

18

WASHER | MODEL R This part replaces 08322-01083.

08322-0108A

$1.92

19

NUT | MODEL L/M/N/P This part replaces 08310-12088.

08310-00087

$2.13

19

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84
