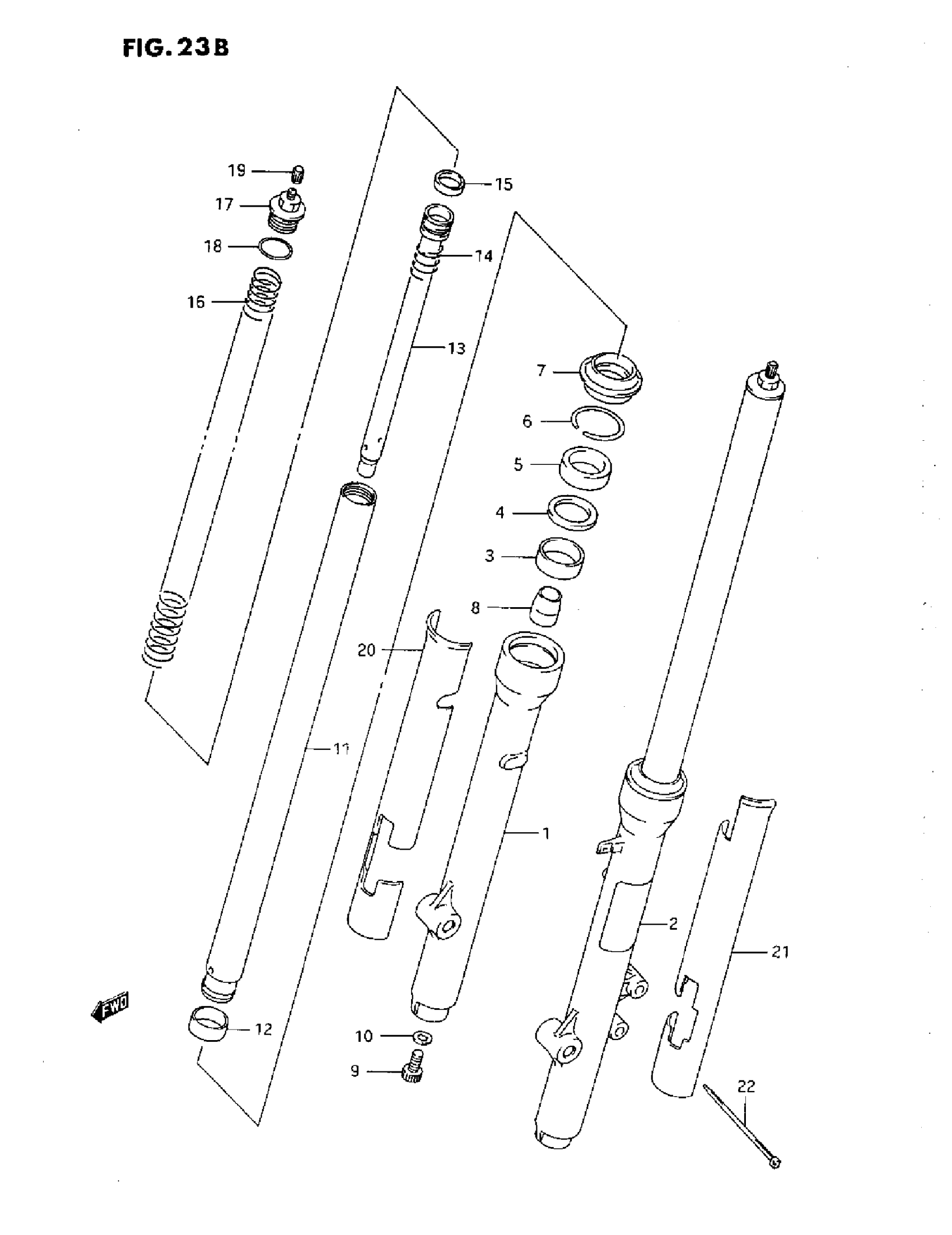

Suzuki RM80 (1993) FRONT FORK (L/M/N/P/R) Diagram

#

Description
Price

1

TUBE, OUTER RH This part replaces 51130-02B40.

51130-02B60

Unavailable

2

TUBE, OUTER LH This part replaces 51140-02B40.

51140-02B60

Unavailable

3

BUSH, GUIDE

51152-45400

$15.10

4

SPACER, SEAL

51168-30B00

$6.31

5

SEAL, OIL | MODEL L/M/N/P This part replaces 51153-34A00.

51153-19D10

$22.96

5

SEAL, OIL | MODEL R

51153-19D10

$22.96

6

RING, STOPPER

51156-01A00

$4.34

7

SEAL, DUST This part replaces 51571-34A00.

51571-03B20

$29.82

8

PIECE, OIL LOCK

51195-02B40

Unavailable

9

BOLT

51147-48130

$4.34

10

0 RING

51148-36011

$3.56

11

TUBE, INNER

51110-02B40

Unavailable

12

BUSH, SLIDE

51121-34A00

Unavailable

13

SEAT, UNDER

51194-02B40

Unavailable

14

SPRING, REBOUND

51177-02B20

Unavailable

15

RING, PISTON

51196-02B40

Unavailable

16

SPRING

51171-02B40

Unavailable

17

BOLT, FORK

51351-02B20

Unavailable

18

0 RING

51117-02B20

Unavailable

19

CAP, VALVE

51294-20400

$7.37

20

PROTECTOR, FRONT FORK RH | OPT

51201-02B00

Unavailable

21

PROTECTOR, FRONT FORK LH | OPT

51202-02B00

Unavailable

22

CLAMP | OPT This part replaces 09407-20401.

09407-25402

$4.64
