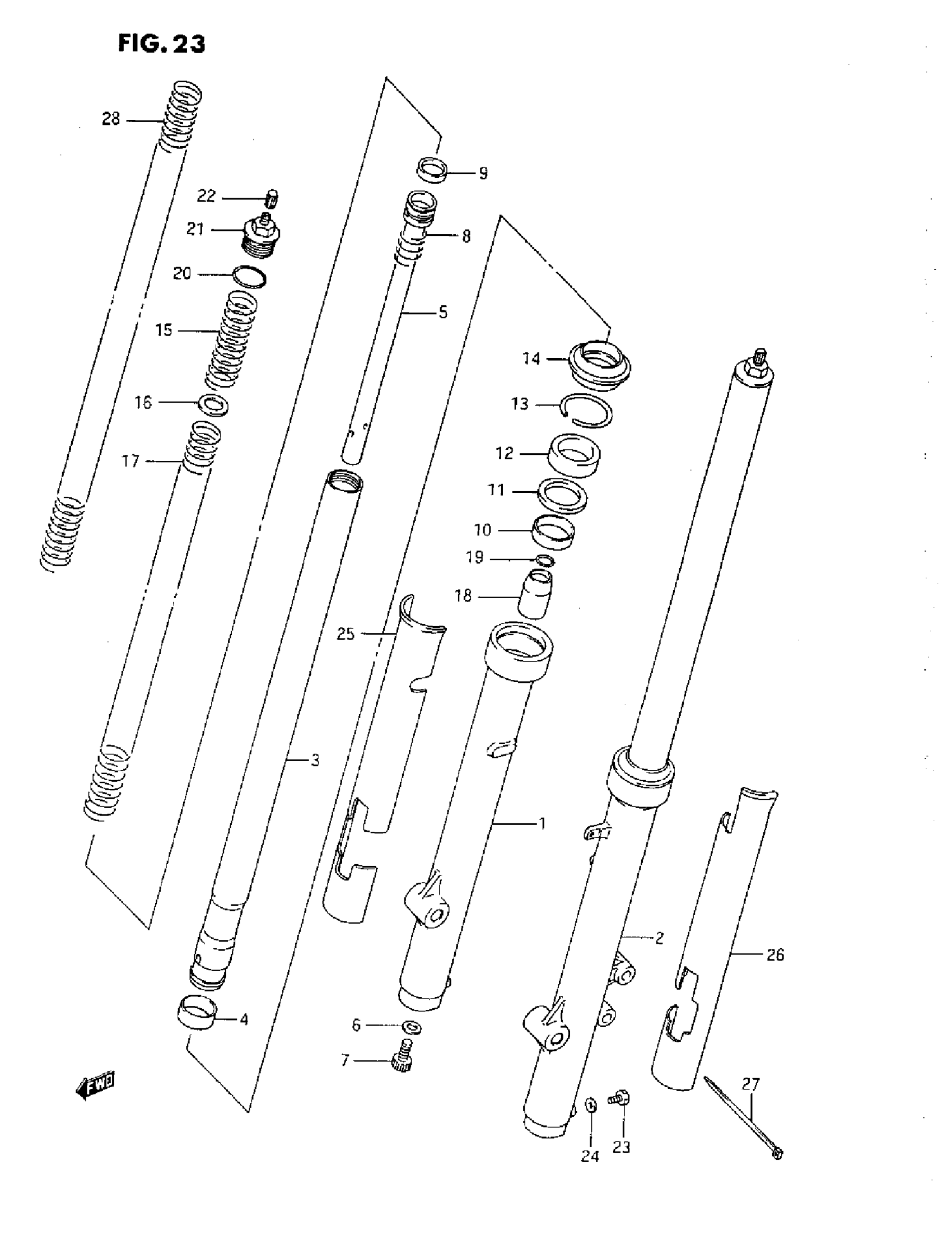

Suzuki RM80 (1993) FRONT FORK (G/H/J) Diagram

#

Description
Price

1

TUBE, OUTER RH

51130-02B00

Unavailable

2

TUBE, OUTER LH

51140-02B00

Unavailable

3

TUBE, INNER

51110-02B00

Unavailable

4

PISTON

51121-02B00

Unavailable

5

CYLINDER

51194-02B00

Unavailable

6

GASKET

51148-02B00

Unavailable

7

BOLT This part replaces 51147-02B00.

51147-02B01

Unavailable

8

SPRING

51177-01A00

Unavailable

9

RING, PISTON

51196-02B00

Unavailable

10

BUSH, GUIDE

51152-02B00

Unavailable

11

SEAL SPACER

51168-02B00

Unavailable

12

OIL SEAL

51153-02B00

$20.06

13

RING, OIL SEAL STOPPER

51156-02B00

$5.36

14

.SEAL, DUST This part replaces 51173-02B00.

51571-26B00

$33.15

15

SPRING A

51171-02B00

Unavailable

16

SEAT, SPRING

51192-20510

Unavailable

17

SPRING B

51174-02B00

Unavailable

18

PIECE, OIL LOCK

51195-02B00

Unavailable

19

RING, OIL LOCK PIECE

51169-01A30

Unavailable

20

0 RING

51117-43500

Unavailable

21

BOLT

51351-02B00

Unavailable

22

CAP, VALVE

51294-20400

$7.37

23

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

24

WASHER

51183-31030

$3.77

25

PROTECTOR, OUTER TUBE RH | OPT

51201-02B00

Unavailable

26

PROTECTOR, OUTER TUBE LH | OPT

51202-02B00

Unavailable

27

CLAMP | OPT This part replaces 09407-20401.

09407-25402

$4.64

28

SPRING (HARD) | OPT

51171-02B10

Unavailable

28

DAMPER ASSY, RH

51103-02B20

Unavailable

28

DAMPER ASSY, LH

51104-02B20

Unavailable
