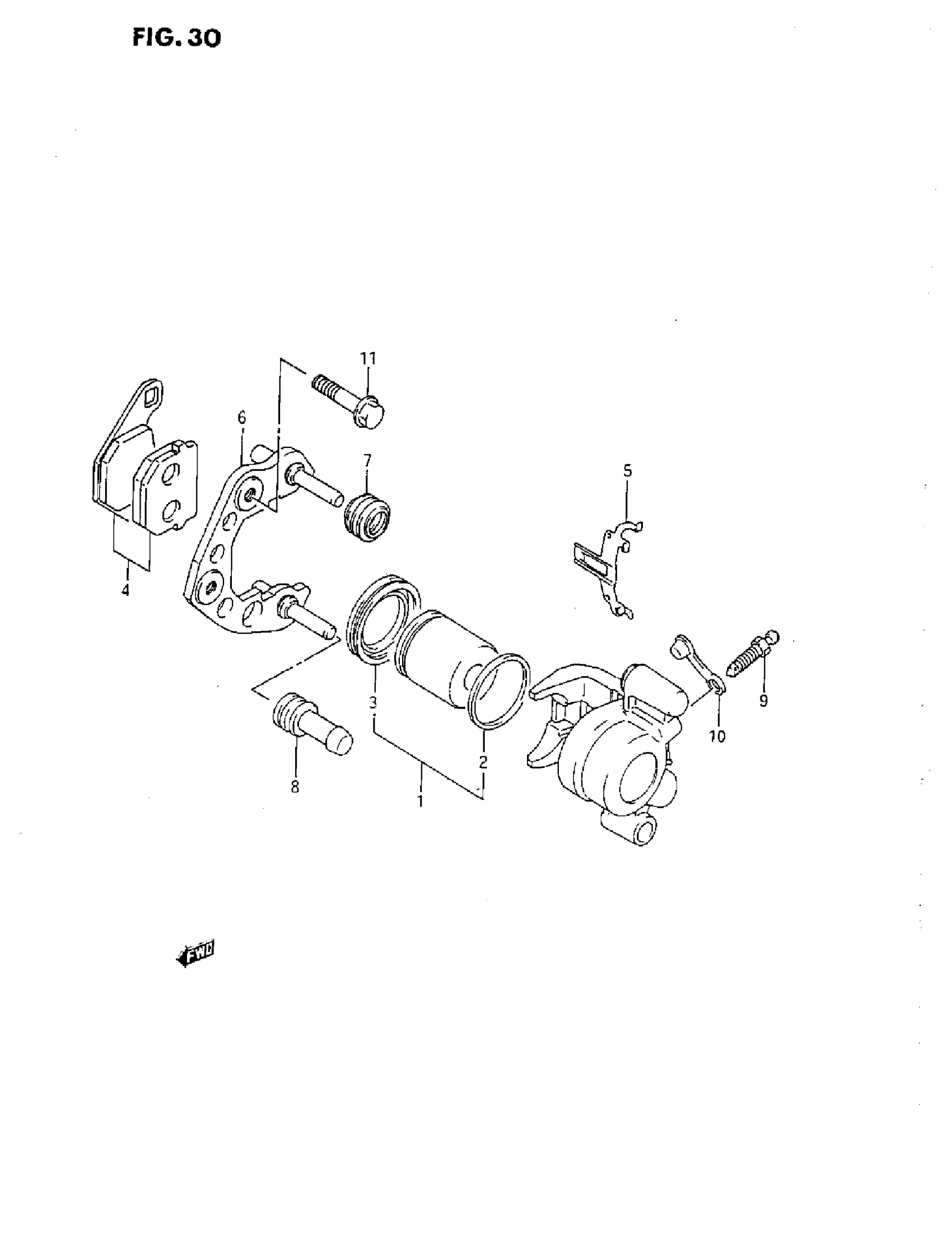

Suzuki RM80 (1993) FRONT CALIPER Diagram

#

Description
Price

1

PISTON SET | MODEL G/H/J/K/L This part replaces 59300-03810.

59300-02811

$34.88

1

PISTON SET | MODEL M/N/P/R This part replaces 59300-02810.

59300-02811

$34.88

2

SEAL,PISTON This part replaces 59107-03A00.

59307-35F00

$8.73

3

BOOT

59308-03A00

Unavailable

4

PAD SET | MODEL G/H/J/K This part replaces 59100-02820.

59100-02830

Unavailable

4

PAD SET | MODEL L/M/N/P/R

59100-02830

Unavailable

5

SPRING

59315-36500

$9.38

6

CARRIER

59350-02B00

Unavailable

7

.BOOT, AXLE

59312-36500

$5.07

8

.INSULATOR, AXLE

59313-36500

$5.99

9

BLEEDER | MODEL G/H/J/K

59121-18410

$8.73

9

BLEEDER | MODEL L/M/N/P/R This part replaces 59121-02B40.

59121-18410

$8.73

10

CAP, BLEEDER | MODEL G/H/J/K This part replaces 59122-18410.

55156-66310

$5.17

10

CAP, BLEEDER | MODEL L/M/N/P/R This part replaces 59122-02B40.

55156-66310

$5.17

11

BOLT | MODEL G/H/J

09103-08142

Unavailable

11

BOLT | MODEL K/L/M/N/P/R

09103-08083

$3.70
