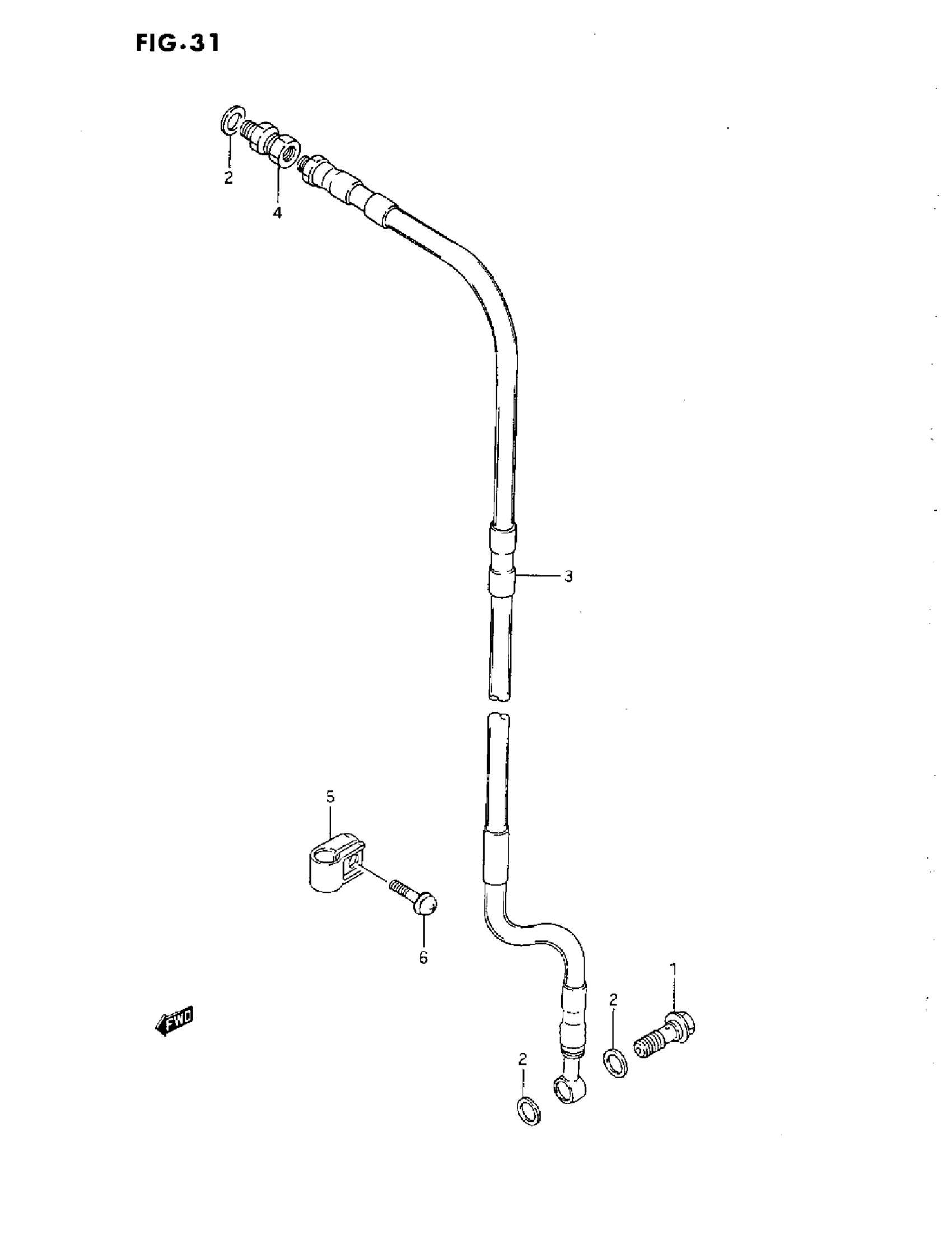

Suzuki RM80 (1993) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT

09360-10017

$3.42

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE | MODEL G/H/J

59480-02B00

Unavailable

3

HOSE | MODEL K/L/M/N/P/R This part replaces 59480-02B21.

59480-02B22

Unavailable

4

ADAPTER, BRAKE HOSE

59290-14501

$36.17

5

CLAMP. BRAKE HOSE This part replaces 59243-14500.

59243-14501

Unavailable

6

SCREW | MODEL G/H/J/K/L/M/N/P This part replaces 02112-16168.

02142-06167

$1.49

6

SCREW | MODEL R This part replaces 02142-06163.

02142-0616A

$1.49

6

CYLINDER ASSY, FRONT MASTER | MODEL G/H ->59600-02BOL This part replaces 59600-02B00.

59600-27C01

$292.48

6

CYLINDER ASSY, FRONT MASTER | MODEL J This part replaces 59600-02B01.

59600-27C01

$292.48
