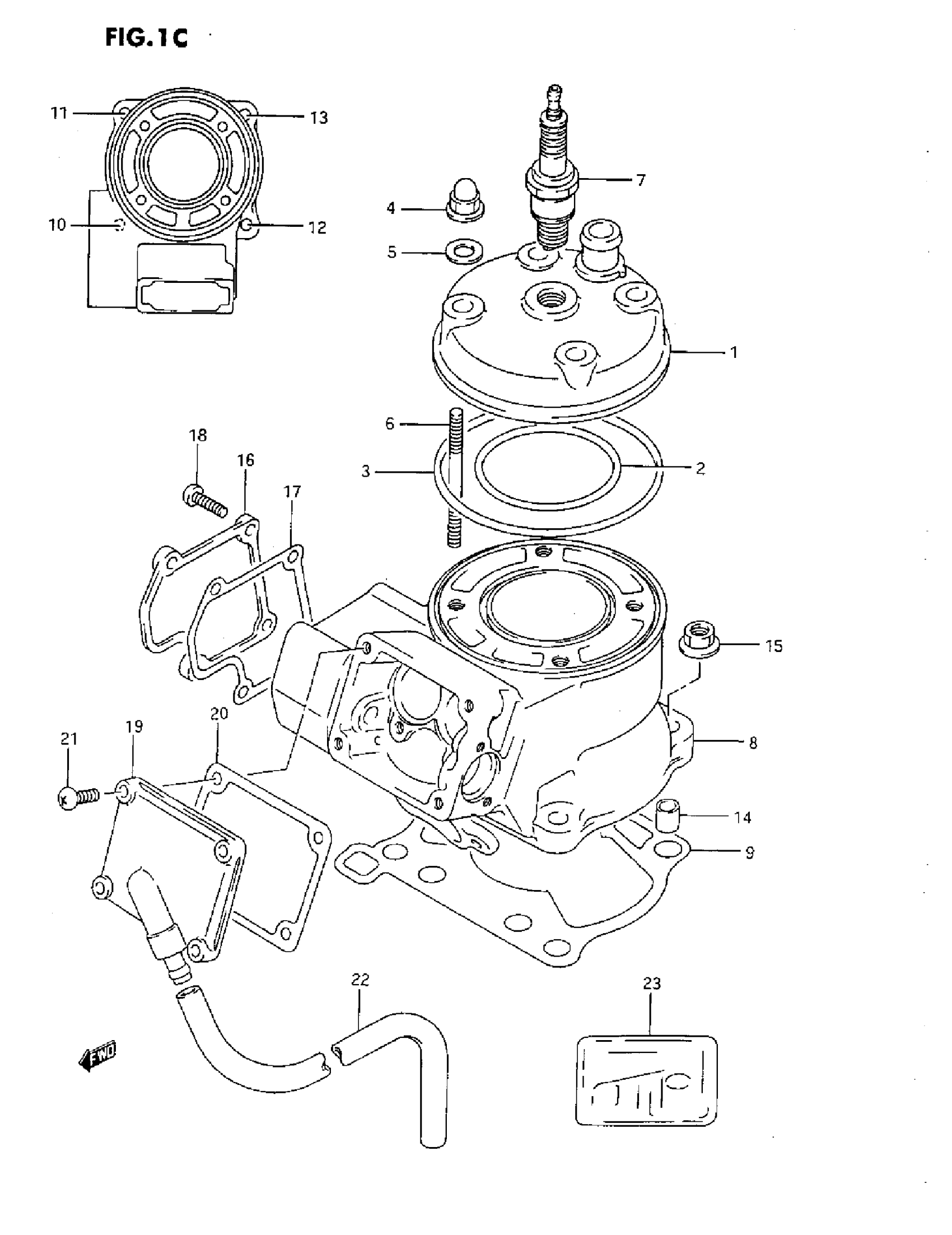

Suzuki RM80 (1993) CYLINDER (M/N/P/R) Diagram

#

Description
Price

1

HEAD, CYLINDER This part replaces 11111-03B00.

11111-03B10

$140.02

2

0 RING, CYLINDER HEAD NO.1

11147-03B00

$10.20

3

0 RING, CYLINDER HEAD NO.2

11148-03B00

$5.35

4

NUT

09159-08074

$5.36

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38)

09108-08231

$3.42

7

SPARK PLUG (NGK,BR10ES) This part replaces 09482-00478.

09482-00360

$3.20

8

CYLINDER COMP This part replaces 11210-03B00-0F0.

11210-03B01-0F0

Unavailable

9

GASKET, CYLINDER This part replaces 11241-03B00.

11241-03B01

$8.34

10

BOLT,T/M SIDE M This part replaces 09108-08200.

09108-08255

$3.93

11

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

12

STUD BOLT (8X3O)

09108-08142

$3.18

13

STUD BOLT (8X33)

09108-08220

$3.18

14

PIN

09206-11004

$5.36

15

NUT (CHROME) | MODEL M/N/P This part replaces 08316-16088.

08316-10087

$2.26

15

NUT | MODEL R This part replaces 08316-10083.

08316-1008B

$2.66

16

COVER, CYLINDER NO.1

11231-02B40

$33.75

17

GASKET, CYLINDER COVER NO.1 This part replaces 11233-02B41.

11233-02B42

$6.22

18

SCREW | MODEL M/N/P This part replaces 02112-05168.

02112-05167

$1.97

18

BOLT | MODEL R This part replaces 01500-05163.

01500-0516B

$2.15

19

COVER, CYLINDER NO.2 This part replaces 11240-02B50.

11240-19D20

$37.75

20

GASKET, CYLINDER COVER NO.2

11238-01B30-H17

$4.03

21

SCREW | MODEL M/N/P This part replaces 02112-05168.

02112-05167

$1.97

21

BOLT | MODEL R This part replaces 01500-05163.

01500-0516B

$2.15

22

HOSE(6.5X11.5X6 | L:300 4140 This part replaces 09354-65113-300.

09355-65001-600

$12.00

23

NO DESCRIPTION AVAILABLE This part replaces 11401-03820.

11401-03823

Unavailable
