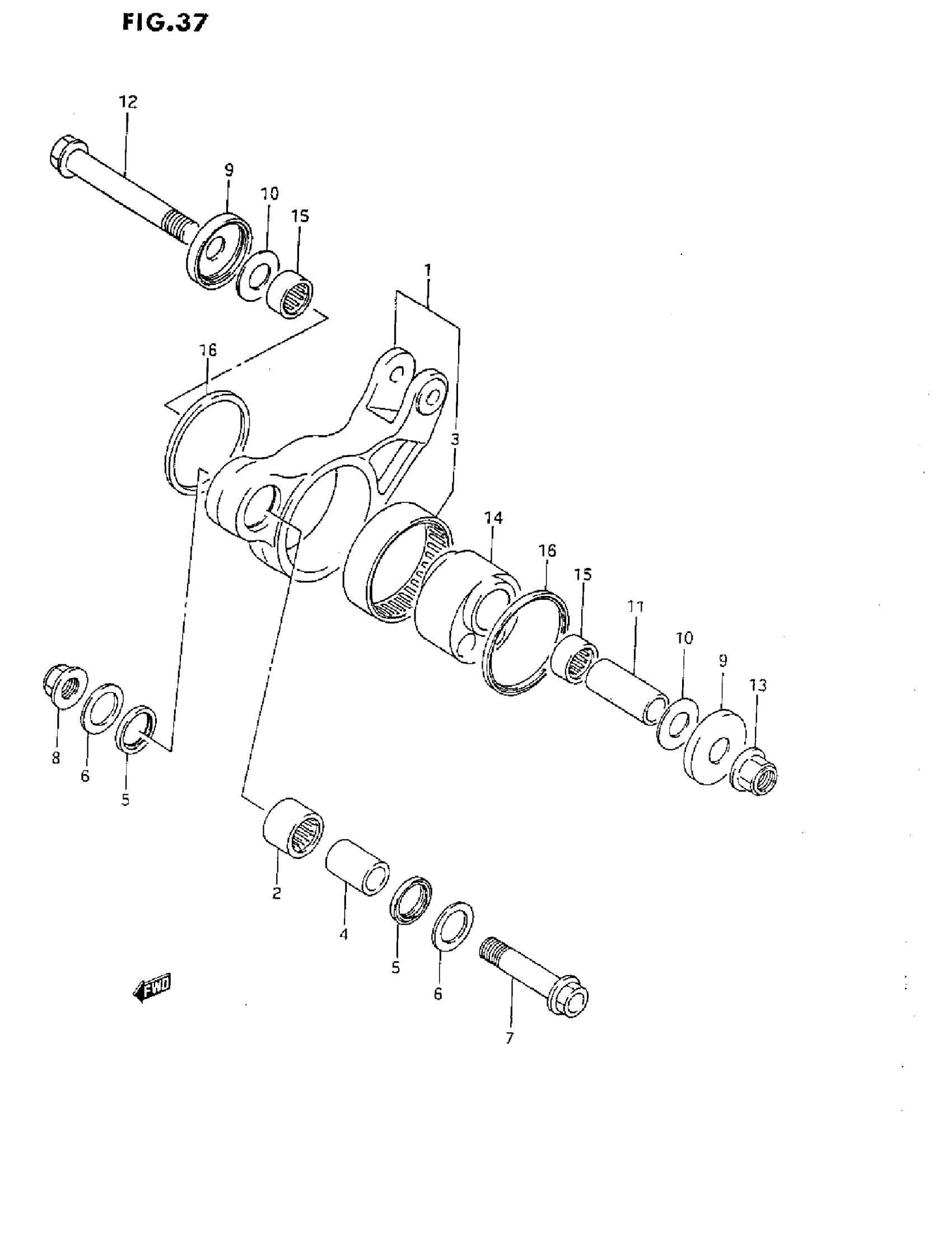

Suzuki RM80 (1993) CUSHION LEVER (H/J/K) Diagram

#

Description

Price

1

LEVER SET, REAR CUSHION

62600-02830

Unavailable

2

BEARING, FRONT

09263-20065

Unavailable

3

BEARING

09263-55002

Unavailable

4

SPACER, FRONT

62317-02B10

Unavailable

5

SEAL, DUST FRONT

09285-20007

Unavailable

6

WASHER, FRONT

09160-20065

Unavailable

7

BOLT, FRONT

62658-02B00

Unavailable

8

NUT This part replaces 08319-31148.

08319-3114A

$9.66

9

SEAL This part replaces 62683-01B00.

62683-27C01

Unavailable

10

THRUST WASHER

08211-14321

$3.85

11

SPACER, CENTER

62646-02B01

Unavailable

12

SHAFT

62621-02B00

Unavailable

13

NUT This part replaces 08319-31148.

08319-3114A

$9.66

14

SPACER, ECCENTRIC

62623-02B01

Unavailable

15

BEARING

09263-20041

$26.47

16

SEAL, DUST

62624-01B01

Unavailable
