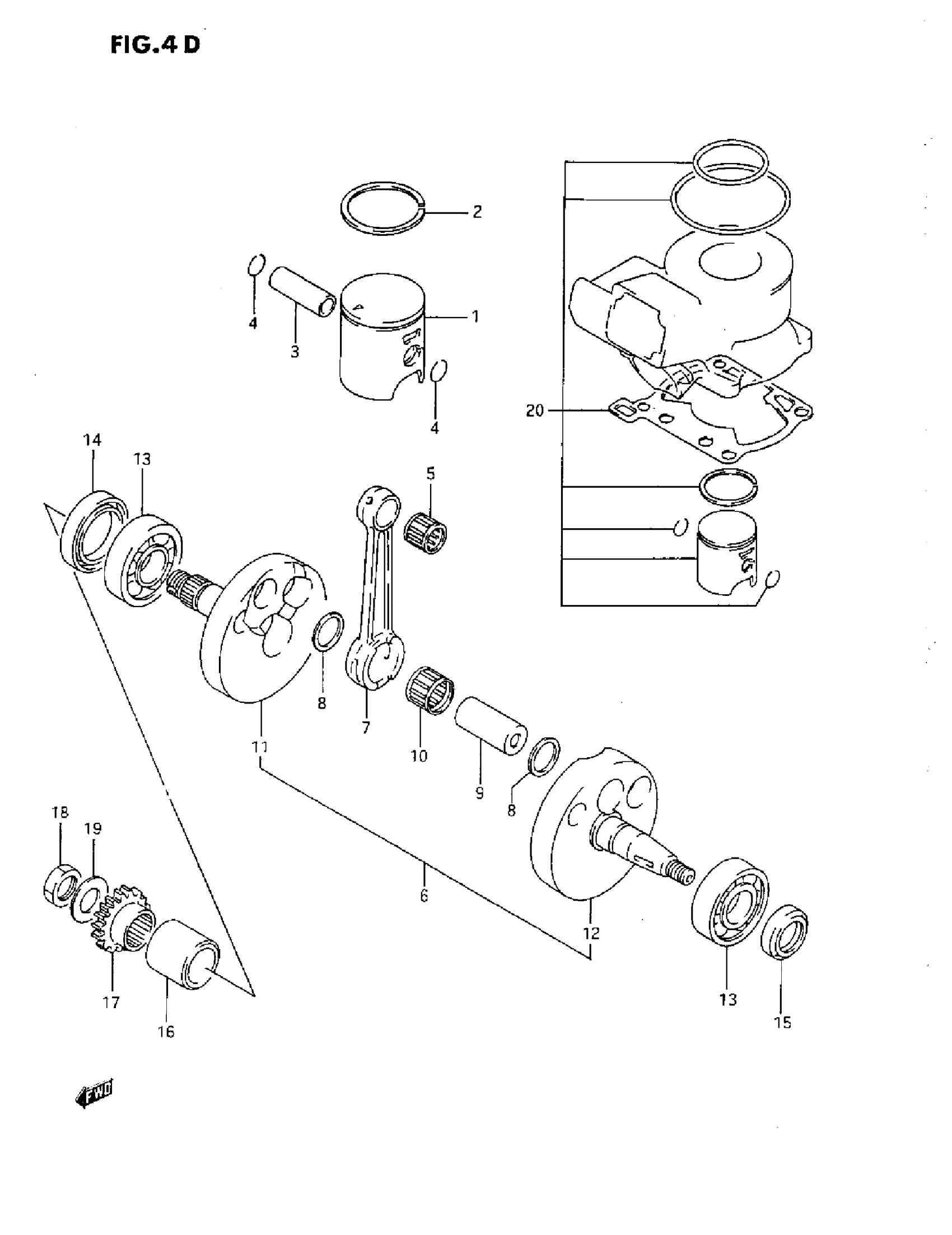

Suzuki RM80 (1993) CRANKSHAFT (M/N/P/R) Diagram

#

Description
Price

1

PISTON

12110-03B00-0F0

Unavailable

1

PISTON SET (OS:0.5) | OPT This part replaces 12110-03B00-050.

12100-03B00-050

$131.10

1

PISTON SET (OS:1.0) | OPT This part replaces 12110-03B00-100.

12100-03B00-100

Unavailable

2

RING, PISTON

12141-02B70

$29.65

2

RING, PISTON (O S:0.5) | OPT

12141-02B70-050

Unavailable

2

RING, PISTON (OS:I.0) | OPT

12141-02B70-100

Unavailable

3

PIN, PISTON

12151-20910

$15.70

4

RING

09381-14001

$1.49

5

BEARING, PISTON PIN

09263-14016

$13.52

6

CRANKSHAFT ASSY

12200-03B00

Unavailable

7

ROD, CONNECTING

12161-02B52

Unavailable

8

WASHER

08211-20252

$3.83

9

PIN, CRANK

12211-02B50

$36.17

10

BEARING

09263-20079

Unavailable

11

CRANKSHAFT, RH This part replaces 12221-03B00.

12221-03B01

Unavailable

12

CRANKSHAFT, LH This part replaces 12261-03B00.

12261-03B01

Unavailable

13

BEARING (2OX52XL5)

09262-20082

$30.63

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$15.32

15

OIL SEAL, LH (18X3OX6)

09283-18006

$12.14

16

SPACER, PRI DRIVE GEAR

12359-27C30

$19.72

17

GEAR, PRIMARY DRIVE (NT:18) This part replaces 21111-02B40.

21111-02B41

$62.32

18

NUT

09140-16019

$3.70

19

WASHER

09164-16002

$3.16

20

TOP END KIT, ENGINE (STD) | OPT

12100-03830

Unavailable

20

TOP END KIT, ENGINE (OS:0.5) | OPT

12100-03830-050

Unavailable

20

CARBURETOR ASSY | MODEL G/H This part replaces 13200-02B00.

13200-02B10

Unavailable

20

CARBURETOR ASSY | MODEL J

13200-02B10

Unavailable
