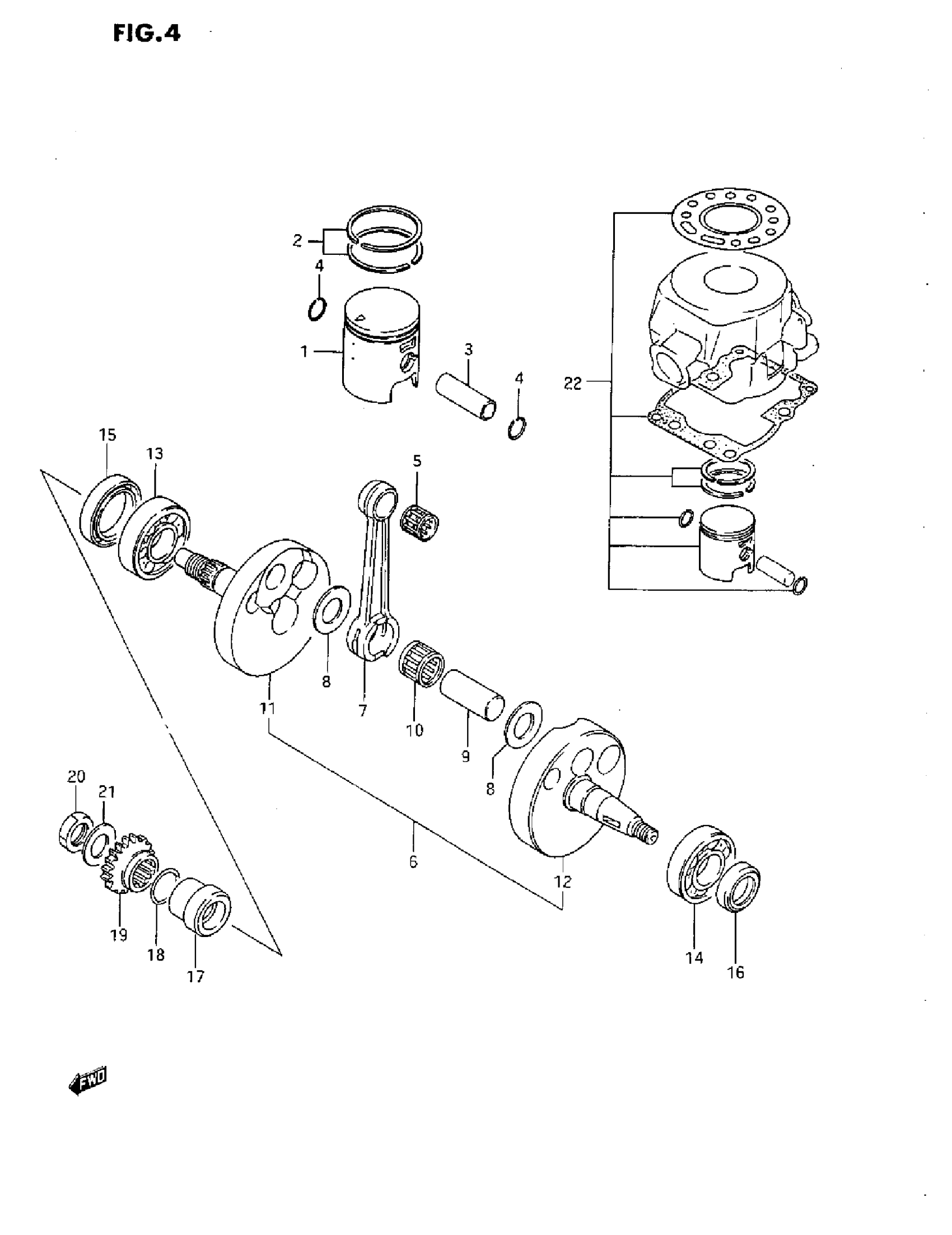

Suzuki RM80 (1993) CRANKSHAFT (G/H) Diagram

#

Description
Price

1

PISTON (STD) This part replaces 12110-02B01.

12110-02B22-0F0

Unavailable

1

PISTON SET | OPT This part replaces 12110-02B01-050.

12103-02811-050

Unavailable

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-02B01-100.

12103-02811-100

Unavailable

2

RING SET, PISTON

12140-02B10

Unavailable

2

RING SET, PISTON (O S:0.5) | OPT

12140-02B10-050

Unavailable

2

RING SET, PISTON (OS:1.0) | OPT

12140-02B10-100

Unavailable

3

PIN, PISTON

12151-20910

$15.70

4

RING

09381-14001

$1.49

5

BEARING, PISTON PIN

09263-14016

$13.52

6

CRANKSHAFT ASSY This part replaces 12200-02B00.

12200-02B10

Unavailable

7

ROD, CONNECTING

12161-02B00

Unavailable

8

WASHER

09160-18016

$7.82

9

PIN, CRANK This part replaces 12211-20901.

12211-02B42

Unavailable

10

BEARING This part replaces 09263-18024.

09263-18026-0C0

Unavailable

11

CRANKSHAFT, RH

12221-02B02

Unavailable

12

CRANKSHAFT, LH

12261-02B01

Unavailable

13

BEARING, RH (2OX52XL5)

09262-20082

$30.63

14

BEARING, LH (2OX47XL4)

09262-20083

Unavailable

15

OIL SEAL, RH (32X52X8.4)

09289-32003

$14.73

16

OIL SEAL, LH (18X3OX8)

09283-18004

$5.24

17

SPACER, PRI DRIVE GEAR

12359-02B00

Unavailable

18

0 RING

09280-20004

$1.58

19

GEAR, PRIMARY DRIVE (NT:18)

21111-02B01

Unavailable

20

NUT

09140-16024

Unavailable

21

WASHER

09164-16002

$3.16

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02830.

12101-02872

Unavailable

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12101-02830-050.

12101-02872-050

Unavailable
