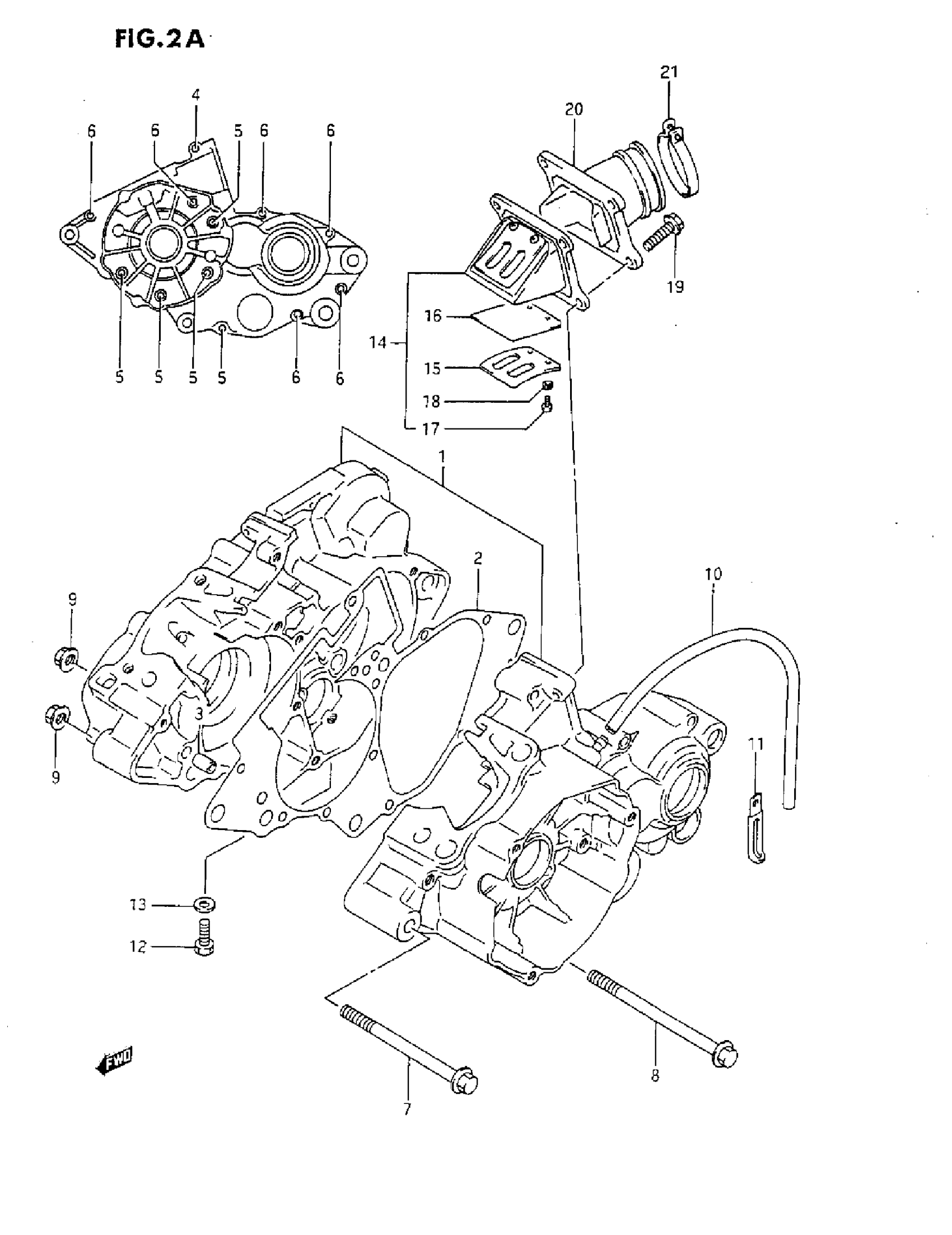

Suzuki RM80 (1993) CRANKCASE (K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11305-02830.

11300-03812

Unavailable

2

GASKET, CRANKCASE

11481-02B40

Unavailable

3

PIN

04211-09129

$1.65

4

BOLT

01547-06357

$2.03

5

BOLT

01547-06407

$2.32

6

BOLT

01547-06507

$2.41

7

BOLT (8X95)

09103-08183

Unavailable

8

BOLT (8XLO5)

09103-08184

Unavailable

9

NUT

09159-08067

$5.57

10

HOSE 4X7X600 | L:600-+350 This part replaces 09352-40703-600.

09352-40706-600

$5.11

11

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

12

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

13

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

14

VALVE ASSY,REED This part replaces 13150-02B40.

13150-02B51

$143.92

15

STOPPER, REED VALVE

13152-02B40

Unavailable

16

VALVE, REED

13153-02B40

$13.20

17

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

18

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

19

BOLT

01547-06207

$2.01

20

PIPE, INTAKE

13110-02B40

Unavailable

21

CLAMP This part replaces 09402-42306.

09402-42303

$4.77
