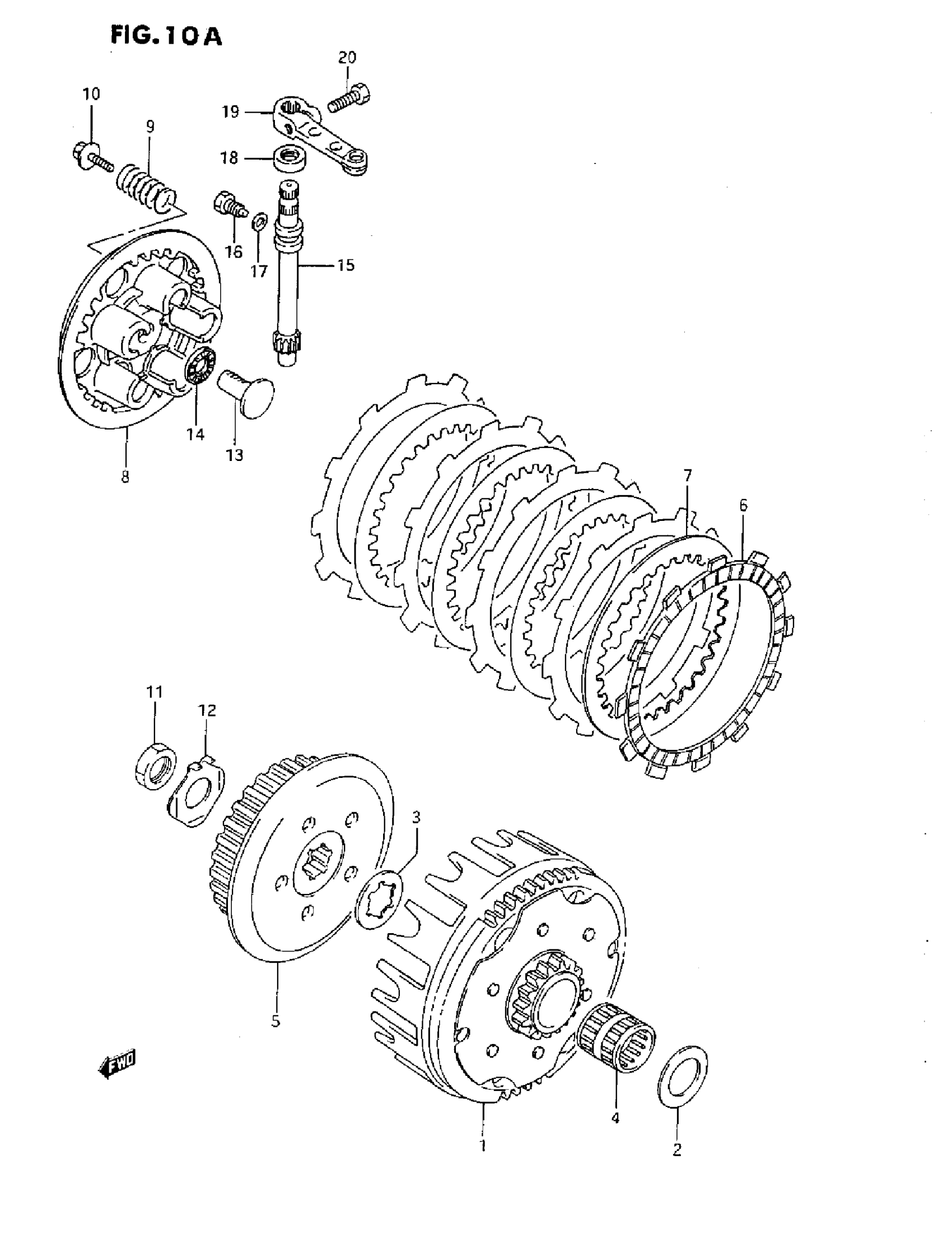

Suzuki RM80 (1993) CLUTCH (K/L/M/N/P/R) Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:62/16

21200-02B41

$263.80

2

WASHER, SEC DRIVEN This part replaces 08211-20321.

09181-20223

$2.92

3

WASHER

09167-20024

$3.58

4

BEARING (2OX25X26)

09263-20023

$19.98

5

HUB, SLEEVE This part replaces 21410-01B00.

21410-01B01

$70.49

6

PLATE, DRIVE (T:3) | MODEL K/L

21441-13A01

$14.73

6

PLATE, CLUTCH DRIVE | MODEL M/N This part replaces 21441-03B00.

21441-13A01

$14.73

6

PLATE, CLUTCH DRIVE | MODEL P/R This part replaces 21441-03B01.

21441-13A01

$14.73

7

PLATE, DRIVEN (T:2)

21451-36200

$7.58

8

DISC, PRESSURE This part replaces 21462-02B40.

21462-02B41

$28.95

9

SPRING | MODEL K/L This part replaces 09440-16016.

09440-16017

$4.66

9

SPRING | MODEL M/N/P/R

09440-16017

$4.66

10

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

11

NUT

09140-16027

$6.70

12

LOCK WASHER

09169-16005

$2.35

13

RACK,CLUTCH RELEASE | MODEL G/H/J/K/L/M/N This part replaces 23165-02B00.

23165-44B01

$24.92

13

RACK,CLUTCH RELEASE | MODEL P/R

23165-44B01

$24.92

14

THRUST BEARING

09263-10002

$10.19

15

PINION,CLUTCH RELEASE | MODEL K/L/M/N This part replaces 23261-20A00.

23261-20A01

$52.98

15

PINION,CLUTCH RELEASE | MODEL P/R

23261-20A01

$52.98

16

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

17

WASHER (6.2XLLXL.2)

09168-06004

$1.49

18

OIL SEAL (10XL7X5)

09285-10004

$3.37

19

ARM, CLUTCH RELEASE | MODEL K/L/M/N This part replaces 23271-20900.

23271-20902

$29.60

19

ARM, CLUTCH RELEASE | MODEL P/R This part replaces 23271-20901.

23271-20902

$29.60

20

BOLT, CANISTER | MODEL G/H/J/K/L/M/N This part replaces 01107-06167.

01500-06167

$1.97

20

BOLT | MODEL P/R This part replaces 01547-06163.

01547-0616B

$2.45
