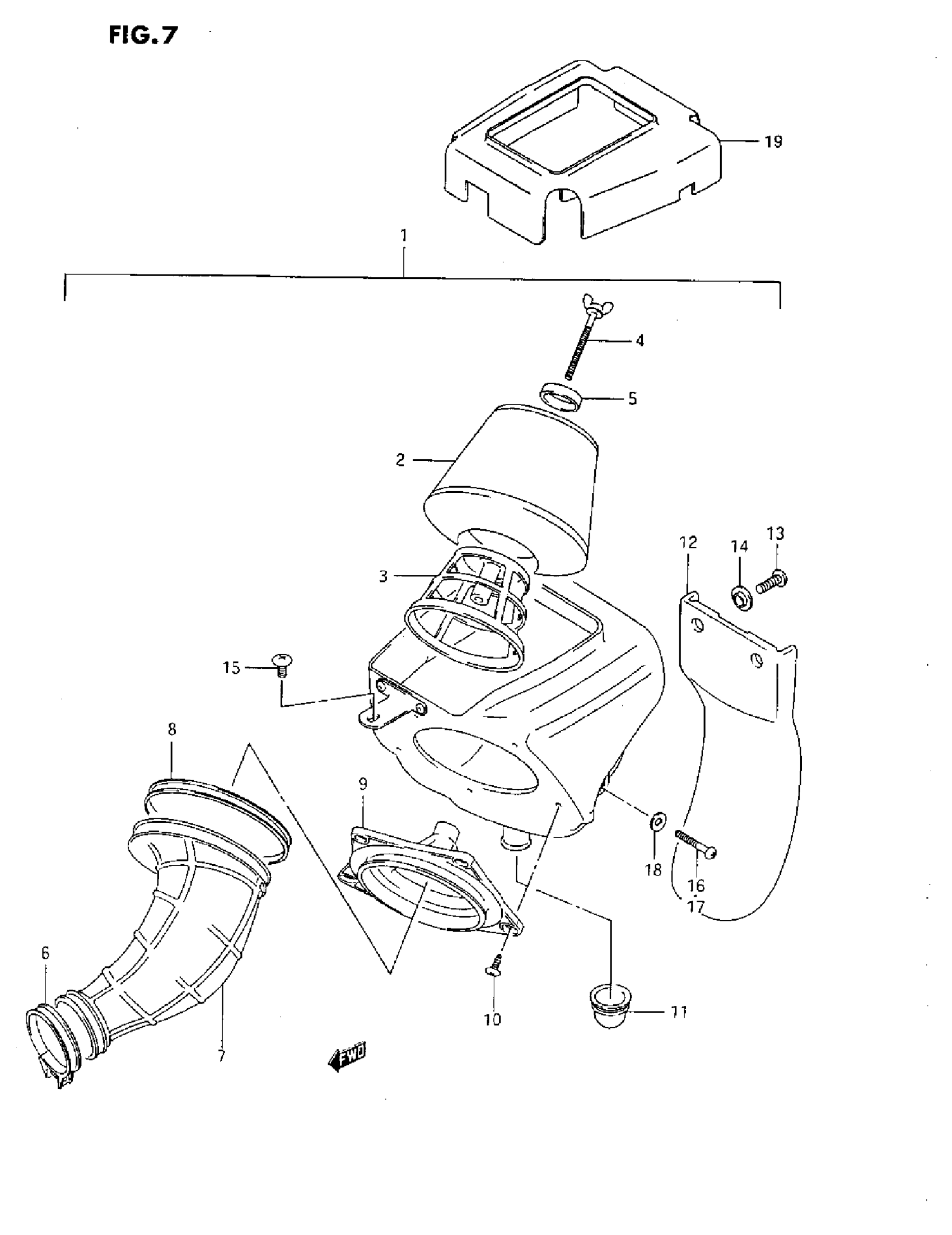

Suzuki RM80 (1993) AIR CLEANER (H/J/K/L/M/N/P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 13700-02B10.

13700-02B11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 13700-02B40.

13700-02B41

Unavailable

1

CLEANER ASSY, AIR | MODEL L

13700-02B50

Unavailable

1

CLEANER ASSY, AIR | MODEL M/N This part replaces 13700-02B51.

13700-02B53

Unavailable

1

CLEANER ASSY, AIR | MODEL P/R This part replaces 13700-02B52.

13700-02B53

Unavailable

2

FILTER

13780-02B00

$50.85

3

HOLDER, FILTER

13791-02B00

$17.41

4

BOLT, WING

13831-02B00

$5.71

5

WASHER

13792-13A01

$4.15

6

CLAMP

09402-50208

$4.46

7

TUBE, OUTLET | MODEL H/J

13881-02B10

Unavailable

7

TUBE, OUTLET | MODEL K

13881-02B40

Unavailable

7

TUBE, OUTLET | MODEL L/M/N/P/R

13881-02B50

Unavailable

8

CLAMP This part replaces 13826-02B10.

09402-00303

$5.43

9

BASE, FILTER

13790-02B10

$27.55

10

SCREW | MODEL H/J/K/L/M/N This part replaces 03242-05124.

03241-0512A

$1.40

10

SCREW | MODEL P/R This part replaces 03241-05123.

03241-0512A

$1.40

11

TUBE, DRAIN

13873-18900

Unavailable

12

MUD GUARD

13738-02B00

$19.11

13

SCREW

02142-06167

$1.41

14

WASHER

13838-02B00

$3.41

15

SCREW

02142-06127

$1.43

16

SCREW | MODEL H/J

02142-06357

$1.95

17

BOLT | MODEL K

01547-06357

$2.09

17

BOLT | MODEL L/M/N/P/R

01547-06457

$2.39

18

WASHER | MODEL H/J/K This part replaces 09160-06006.

09160-06084

$1.82

19

MUD GUARD | MODEL H/J/K/L/M/N This part replaces 13739-02B12.

13739-02B14

$40.83

19

MUD GUARD | MODEL P/R This part replaces 13739-02B13.

13739-02B14

$40.83
