1985 Suzuki RM80 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1985 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

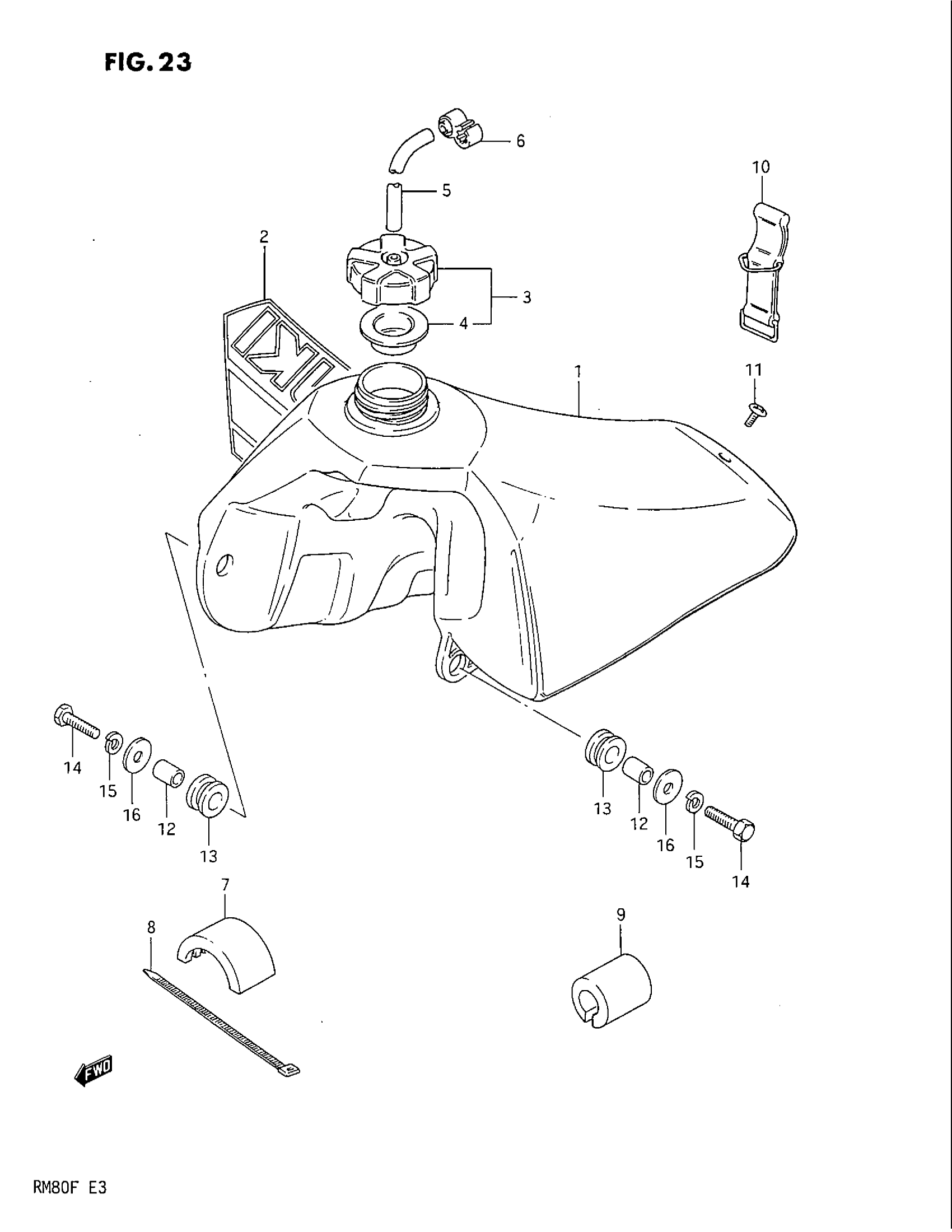

1985 Suzuki RM80 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 4

44100-20870-163

1
Out of stock

2

TAPE SET

68110-20920-95C

1
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-14820.

44200-27871

1
Out of stock

4

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

5

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

6

CLAMP

44486-32101

1
Out of stock

7

CUSHION, UPPER FRONT

44541-14300

1
Out of stock

8

CLAMP This part replaces 09407-20401.

09407-25402

1
Out of stock

9

CUSHION, UPPER REAR

44542-17300

2
Out of stock

10

BAND, REAR

44560-41300

1
Out of stock

11

SCREW This part replaces 09125-06009.

09125-06073

1
Out of stock

12

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

2
Out of stock

13

CUSHION This part replaces 09320-10029.

09320-10080

2
Out of stock

14

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

2
Out of stock

15

LOCK WASHER This part replaces 08321-21064.

08321-0106A

2
Out of stock

16

WASHER, 6.5X24X1.6 This part replaces 09160-06074.

09160-06501

2
Out of stock
