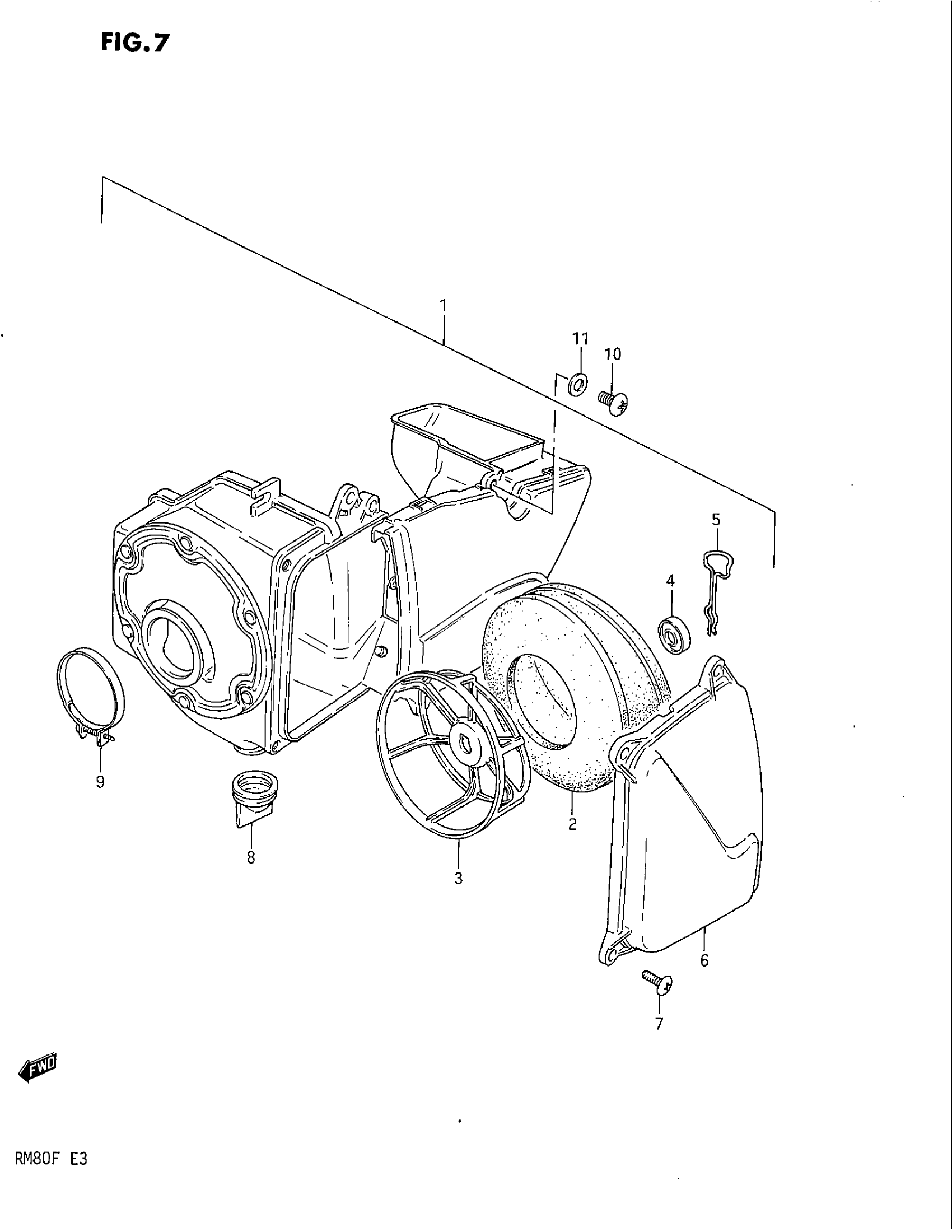

Suzuki RM80 (1985) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL D This part replaces 13700-20450.

13700-20451

Unavailable

1

CLEANER ASSY, AIR | MODEL E/F; Includes Item(s) 2 - 9

13700-20451

Unavailable

2

FILTER

13781-20400

Unavailable

3

HOLDER, FILTER

13791-20400

Unavailable

4

WASHER

13796-20400

$2.86

5

SNAP PIN

13823-20400

$2.95

6

CAP

13740-20400

Unavailable

7

.SCREW This part replaces 02142-05125.

02142-0512A

$1.41

8

HOSE, DRAIN (1) | MODEL D This part replaces 13873-20410.

13873-18900

Unavailable

8

TUBE, DRAIN | MODEL E/F

13873-18900

Unavailable

9

CLAMP

09402-50306

$4.52

10

SCREW This part replaces 02142-06128.

02142-06127

$1.43

11

WASHER This part replaces 09160-06007.

09160-06084

$1.82
