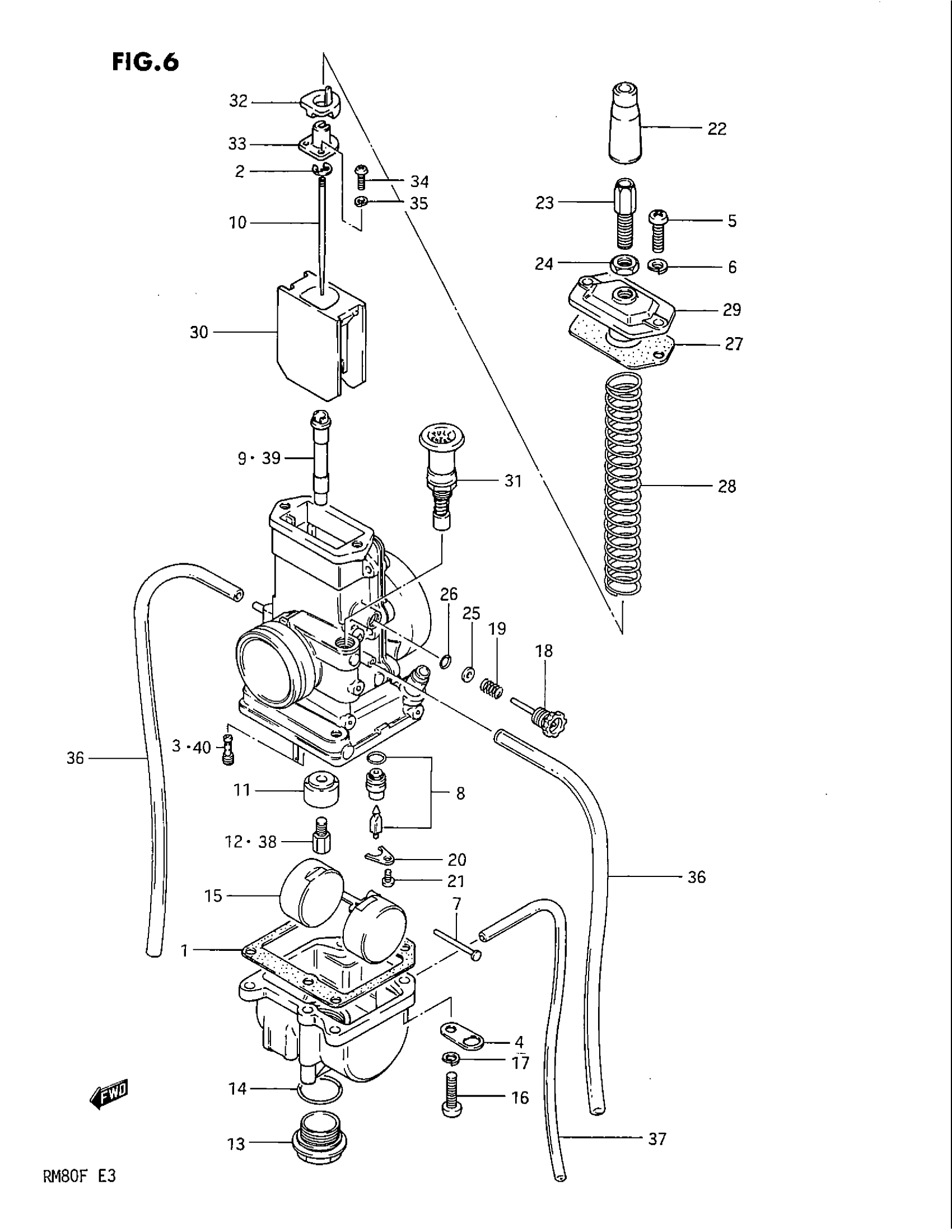

Suzuki RM80 (1985) CARBURETOR (MODEL E/F) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 37

13200-20911

Unavailable

1

GASKET

13251-29630

Unavailable

2

E RING

13394-10010

$6.15

3

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

$8.74

4

PLATE

13693-36500

$3.67

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.24

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.86

7

PIN

13254-92311

$2.31

8

VALVE ASSY, NEEDLE

13370-46900

Unavailable

9

JET, NEEDLE (0-7) This part replaces 09494-00458.

09494-00466

Unavailable

9

JET, NEEDLE (0-7)

09494-00466

Unavailable

10

NEEDLE, JET (5DP39-3)

13383-46900

$21.45

11

RING

13331-28710

Unavailable

12

JET, MAIN (170)

09491-34002

Unavailable

13

PLUG, DRAIN

13247-46900

Unavailable

14

O RING

13246-29630

$7.12

15

FLOAT

13252-29630

$30.98

16

SCREW This part replaces 02112-04168.

02112-0416A

$1.24

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

18

ADJUSTER

13267-16700

$16.77

19

SPRING, AIR SCREW

13268-35010

$4.09

20

PLATE, NEEDLE VALVE

13373-39110

$6.25

21

SCREW This part replaces 02112-04086.

02112-0408A

$1.09

22

CAP, ADJUSTER

13681-33010

$8.54

23

ADJUSTER, CABLE

13577-41612

$6.60

24

NUT

13661-16600

$4.37

25

WASHER

13291-35010

$4.72

26

O RING

13295-33010

$4.09

27

GASKET, TOP

13266-16700

Unavailable

28

SPRING, THROTTLE VALVE

13573-16700

Unavailable

29

TOP

13261-16700

Unavailable

30

THROTTLE VALVE (CA:4.0)

13551-20910

Unavailable

31

PLUNGER ASSY This part replaces 13400-20910.

13410-26410

Unavailable

32

RING

13629-16700

Unavailable

33

CONNECTOR

13398-16700

Unavailable

34

SCREW This part replaces 02112-03106.

02112-0310B

$0.89

35

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.78

36

HOSE,5X10X600 This part replaces 13683-05310.

44421-13ER0

$9.08

37

HOSE This part replaces 13684-16710.

13684-40A00

$12.72

38

JET,MAIN,150 | OPT This part replaces 09491-30003.

09491-30017

Unavailable

38

JET, MAIN (160) | OPT

09491-32002

Unavailable

38

JET, MAIN (180) | OPT This part replaces 09491-36003.

09491-36006

Unavailable

38

JET, MAIN (190) | OPT This part replaces 09491-38003.

09491-38009

Unavailable

38

JET, MAIN (200) | OPT This part replaces 09491-40004.

09491-40006

Unavailable

38

JET, MAIN (210) | OPT This part replaces 09491-42001.

09491-42005

Unavailable

39

JET, NEEDLE (O-2) | OPT

09494-00456

Unavailable

39

JET, NEEDLE (O-4) | OPT

09494-00457

Unavailable

39

JET, NEEDLE (O-8) | OPT

09494-00461

Unavailable

40

JET, PILOT (25) | OPT

09492-25005

$8.74

40

JET, PILOT (35) | OPT

09492-35004

Unavailable
