1980 Suzuki RM50 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

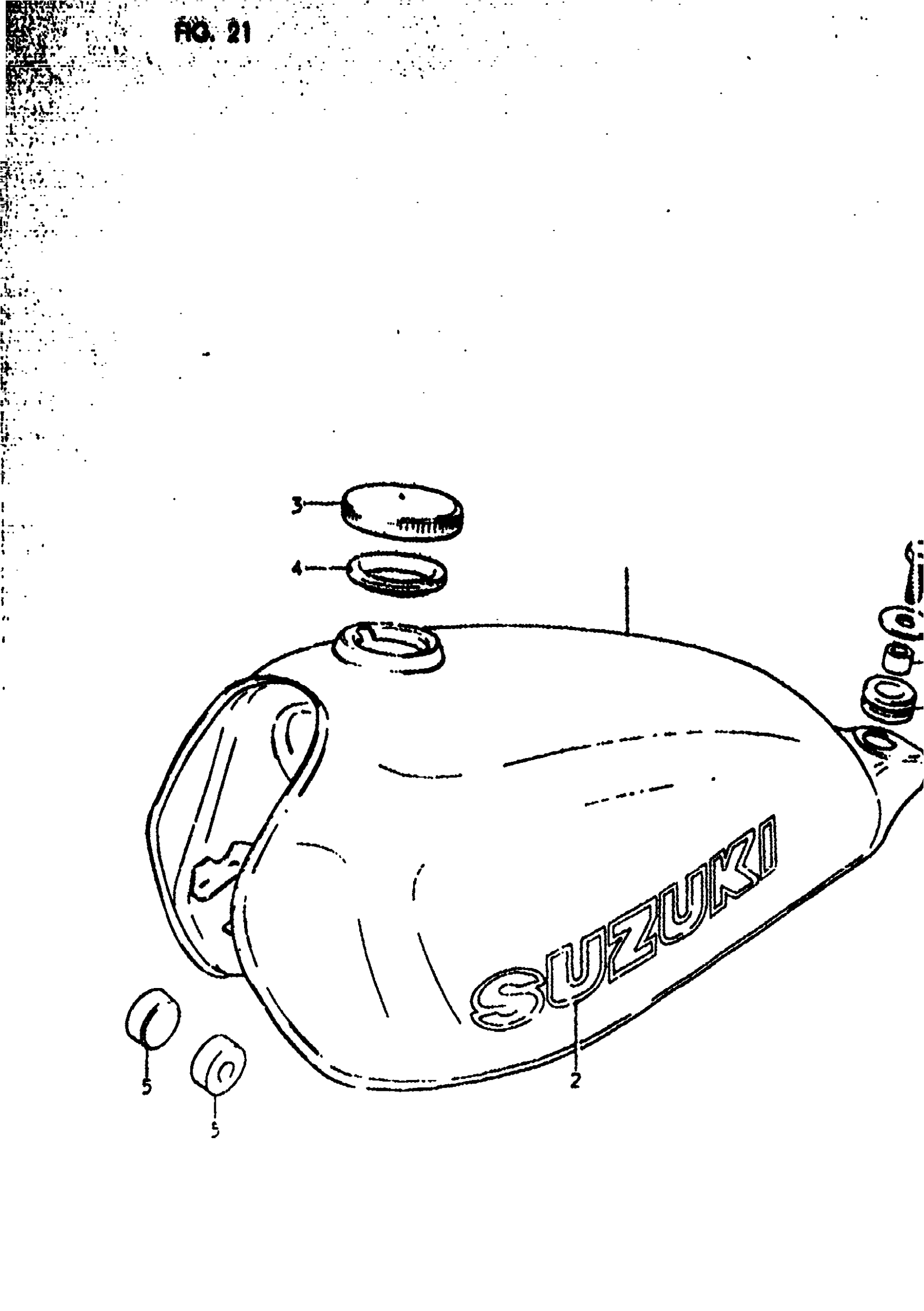

1980 Suzuki RM50 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44110-46600-163

1
Out of stock

2

EMBLEM FUEL TAN This part replaces 68111-46601-64D.

68111-46700-019

2
Out of stock

3

CAP FUEL TANK | Includes Item(s) 4 This part replaces 44210-04400.

44210-90101

1
Out of stock

4

GASKET,CAP This part replaces 44248-35000.

44248-35001

1
Out of stock

5

CUSHION, FRONT

09329-10005

2
Out of stock

6

CUSHION, REAR NO. 2

09320-09002

1
Out of stock

7

SPACER

09180-06038

1
Out of stock

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

1
Out of stock

9

1

$2.10

In stock
← Fuel Cock Fuel Tank (RM50N →
