1980 Suzuki RM50 AIR Cleaner (RM50N Diagram

← All diagrams

Find the part on the AIR Cleaner (RM50N diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

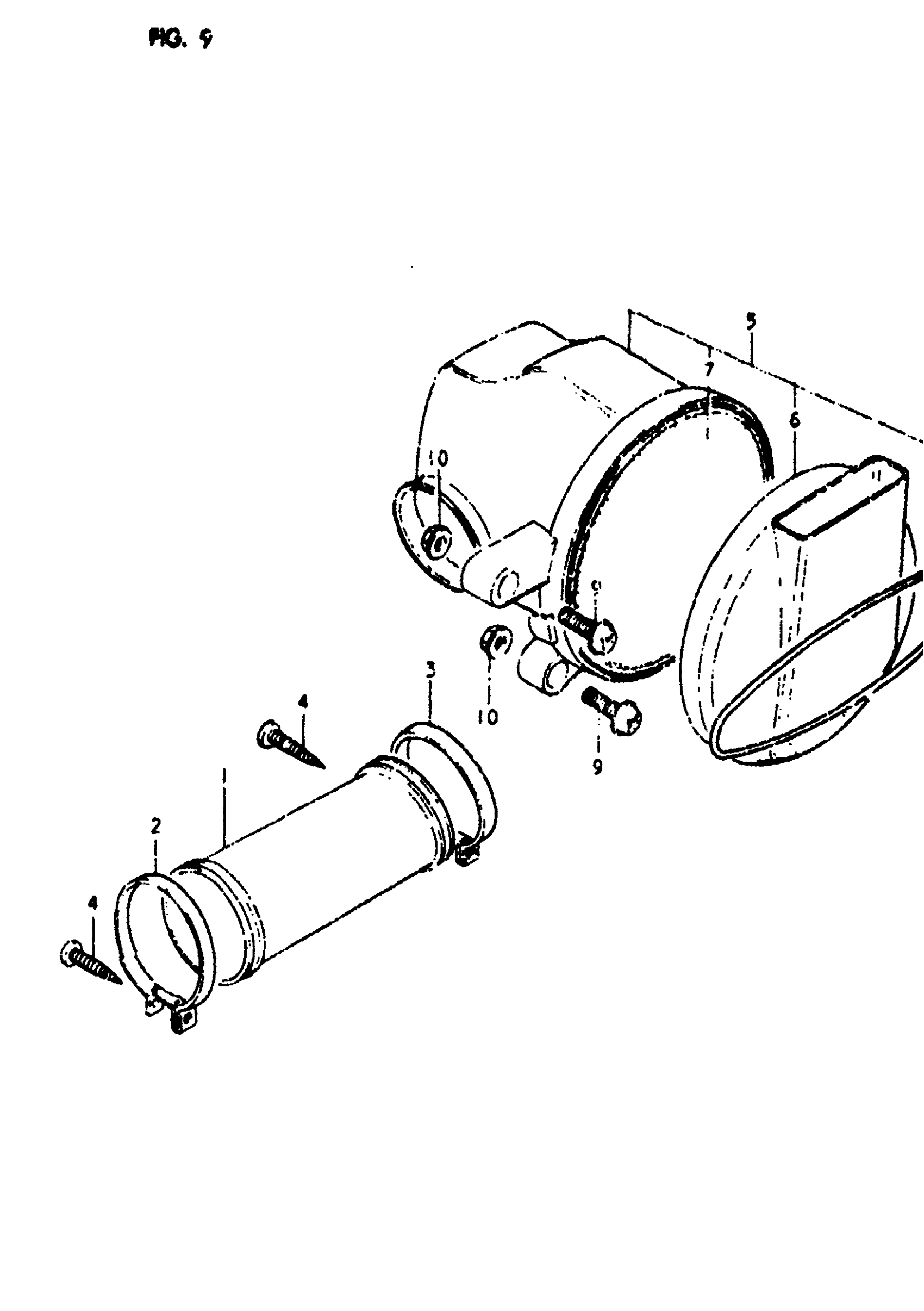

1980 Suzuki RM50 AIR Cleaner (RM50N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, AIR INLET | N,T

13881-46600

1
Out of stock

2

CLAMP | N,T This part replaces 09402-48306.

09402-48208

1
Out of stock

3

CLAMP, NO.2 | N,T; Includes Item(s) 4

09402-58306

1
Out of stock

4

SCREW | N,T This part replaces 03211-04258.

03211-0425B

2
Out of stock

5

CLEANER ASSY, AIR | N,T; Includes Item(s) 6 - 8

13700-46600

1
Out of stock

6

CAP | N,T

13741-46600

1
Out of stock

7

FILTER | N,T

13781-46600

1
Out of stock

8

O RING D:3.5 ID | N,T This part replaces 13751-46600.

09280-00021

1
Out of stock

9

SCREW | N,T This part replaces 02152-06168.

02112-16167

2
Out of stock

10

NUT | N,T This part replaces 08316-26065.

08316-2006A

2
Out of stock
← AIR Cleaner Carburetor →

More Air & Fuel diagrams
