1982 Suzuki RM465 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1982 Suzuki RM465, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

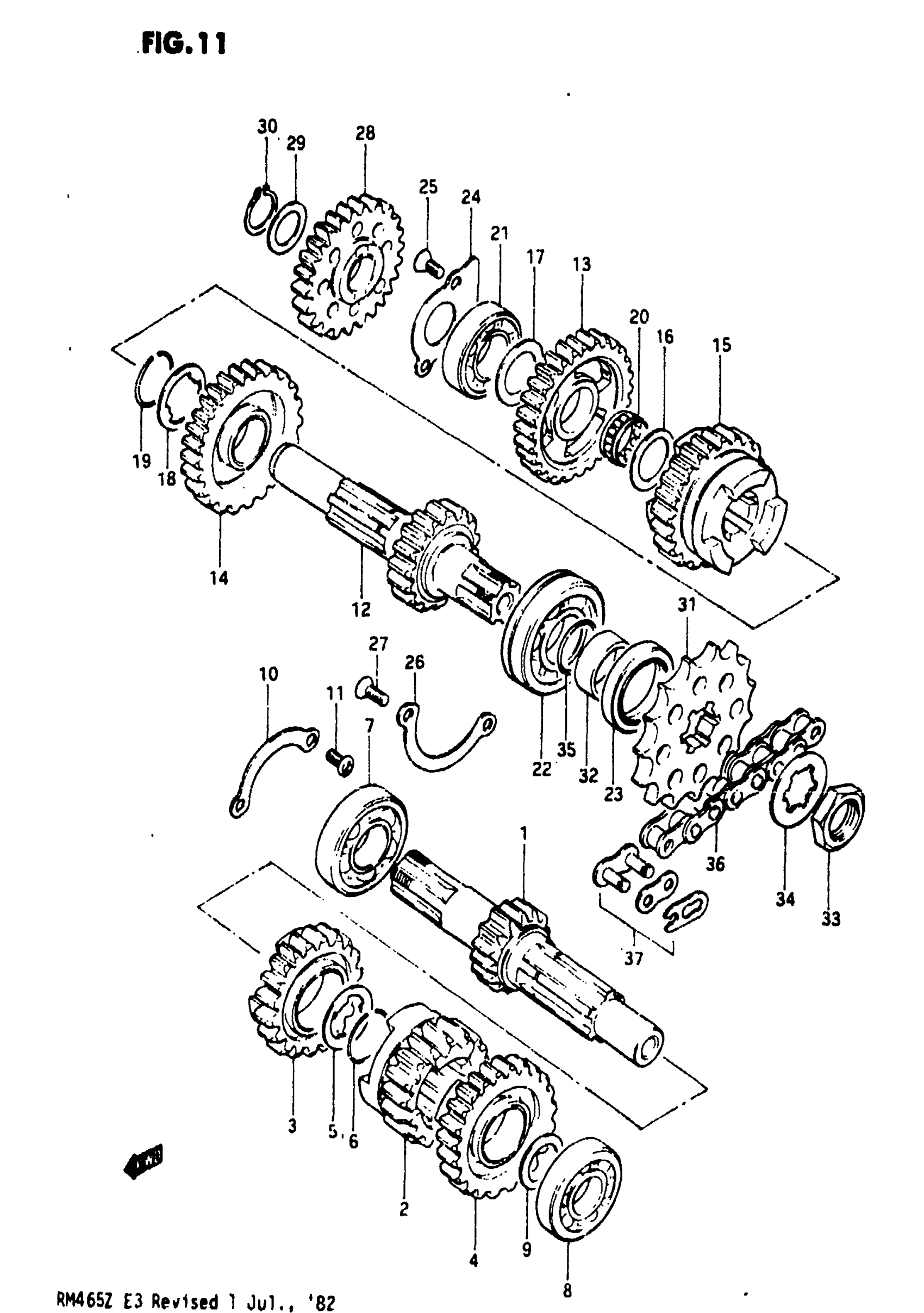

1982 Suzuki RM465 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:14)

24120-14220

1
Out of stock

2

GEAR, 2ND DRIVE (NT:18)

24221-14220

1
Out of stock

3

GEAR, 3RD DRIVE (NT:19)

24230-14220

1
Out of stock

4

GEAR, 4TH DRIVE (NT:22)

24240-14220

1
Out of stock

5

WASHER

08211-25301

1

$4.18

In stock

6

SNAP RING

09380-25003

1
Out of stock

7

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

1
Out of stock

8

BEARING (20X42X12) This part replaces 08113-60040.

09262-20106

1
Out of stock

9

WASHER

08211-20283

1
Out of stock

10

HOLDER, BEARING

24741-14210

1
Out of stock

11

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

12

DRIVESHAFT (4TH,NT:21)

24130-14220

1
Out of stock

13

GEAR, 1ST DRIVEN (NT:28)

24311-14220

1
Out of stock

14

GEAR, 2ND DRIVEN (NT:28)

24320-14220

1
Out of stock

15

GEAR, 3RD DRIVEN (NT:23)

24331-14220

1
Out of stock

16

WASHER, LH

08211-20301

1
Out of stock

17

WASHER, RH

08211-20363

1
Out of stock

18

WASHER

09167-28004

1
Out of stock

19

CIRCLIP

09380-28004

1
Out of stock

20

BEARING, 1ST DRIVEN GEAR

09263-20018

1
Out of stock

21

BEARING, RH

09264-20002

1
Out of stock

22

BEARING, LH

09262-28004

1
Out of stock

23

OIL SEAL

09283-35023

1
Out of stock

24

HOLDER, BEARING RH This part replaces 24751-14211.

24751-14212

1
Out of stock

25

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

26

HOLDER, BEARING LH

24752-14220

1
Out of stock

27

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

28

GEAR, KICK STARTER IDLE This part replaces 26260-14200.

26260-14201

1
Out of stock

29

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

1
Out of stock

30

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-11209.

08331-3120A

1
Out of stock

31

SPROCKET, ENGINE (NT:14)

27511-14220

1
Out of stock

31

SPROCKET, ENGINE (NT:13) | OPT

27511-14230

1
Out of stock

31

SPROCKET, ENGINE (NT:15) | OPT

27511-14240

1
Out of stock

32

SPACER

09180-28003

1
Out of stock

33

NUT This part replaces 09140-28001.

09140-28003

1
Out of stock

34

LOCK WASHER

09167-28003

1
Out of stock

35

O RING

09280-28004

1
Out of stock

36

CHAIN,DRIVE ASS | Includes Item(s) 37 This part replaces 27600-14252.

27600-46K00-116

1
Out of stock

37

JOINT (DID)

27620-14252

1
Out of stock

37

JOINT (RK) This part replaces 27620-14261.

27620-14262

1
Out of stock
