1982 Suzuki RM465 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1982 Suzuki RM465, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

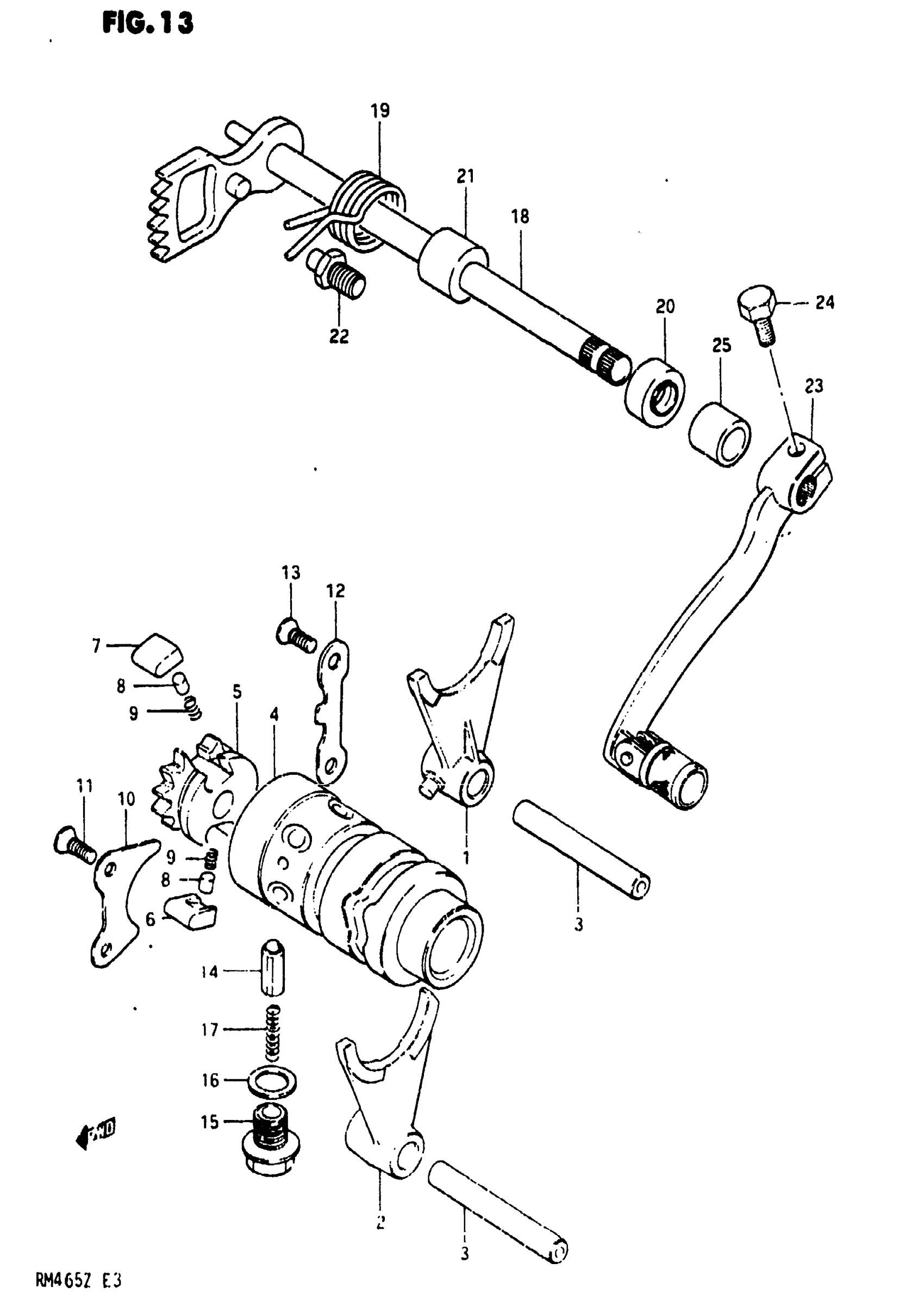

1982 Suzuki RM465 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFTING NO. 1

25211-14220

1
Out of stock

2

FORK, GEAR SHIFTING NO. 2

25221-14220

1
Out of stock

3

SHAFT, NO.1 This part replaces 25421-40400.

25421-35410

2
Out of stock

4

CAM, GEAR SHIFTING

25310-14220

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2
Out of stock

10

LIFTER, PAWL

25331-40400

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM This part replaces 25341-40400.

25341-40001

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

1

$11.55

In stock

15

1

$7.41

In stock

16

GASKET

09168-14004

1
Out of stock

17

SPRING

09440-06020

1
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 25510-14220.

25510-142V0

1
Out of stock

19

SPRING

09444-26013

1
Out of stock

20

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

21

SPACER

09180-12068

1
Out of stock

22

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

23

LEVER, GEAR SHIFTING

25600-14300

1
Out of stock

24

BOLT This part replaces 09100-06091.

01500-06207

1
Out of stock

25

CUSHION

09180-12068

2
Out of stock
