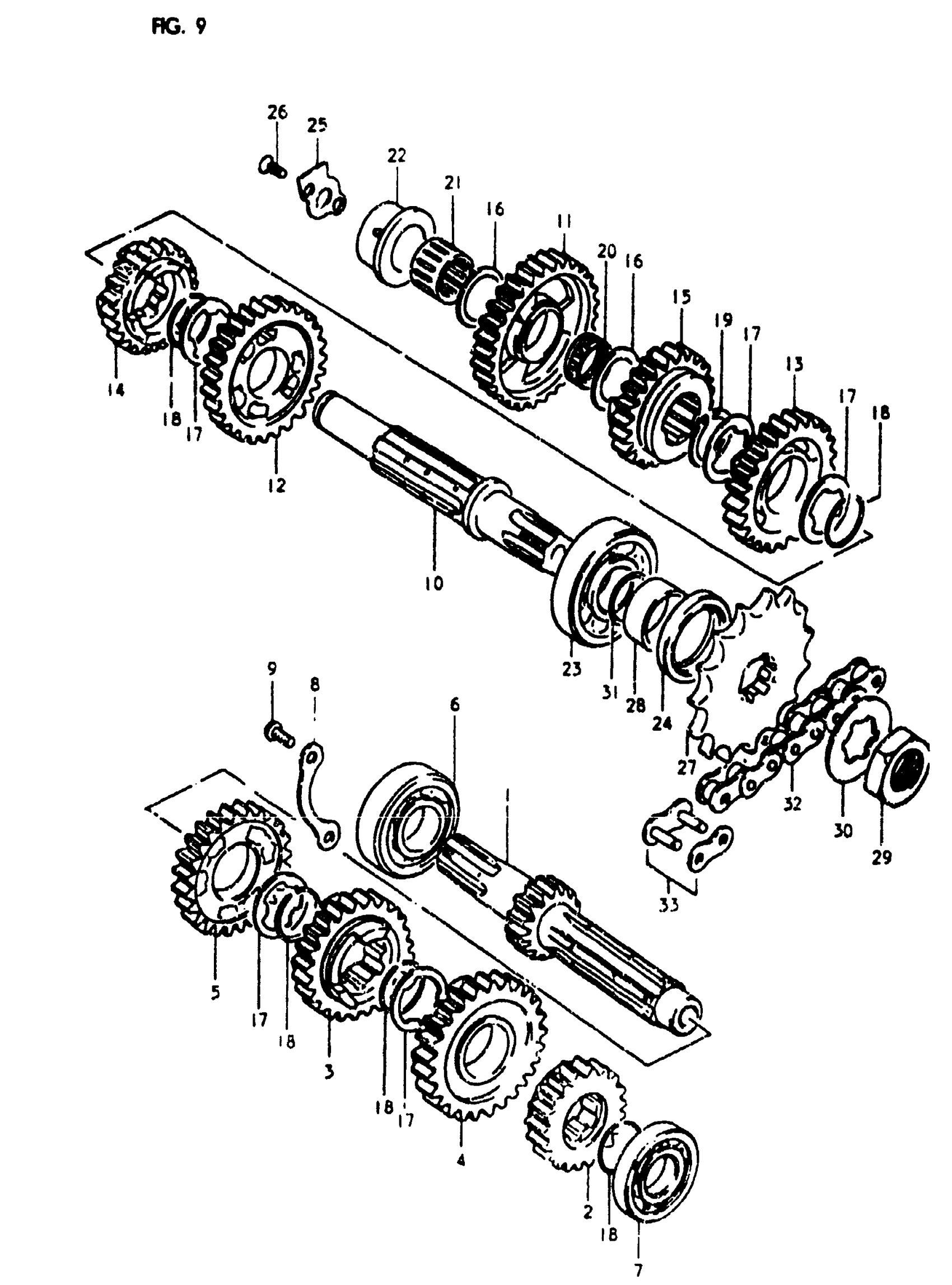

Suzuki RM400 (1980) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT

24120-40401

Unavailable

2

GEAR, 2ND DRIVE (NT:16)

24221-41202

Unavailable

3

GEAR, 3RD DRIVE (NT:19)

24231-41202

Unavailable

4

GEAR, 4TH DRIVE (NT:21)

24240-41201

Unavailable

5

GEAR, 5TH DRIVE (NT:23)

24251-41200

Unavailable

6

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

7

BEARING (20X42X12) This part replaces 08113-60040.

09262-20106

$29.35

8

HOLDER, BEARING

24741-40400

Unavailable

9

SCREW This part replaces 02112-06128.

02112-06127

$1.84

10

DRIVESHAFT

24131-40400

Unavailable

11

GEAR, 1ST DRIVEN (NT:28)

24311-40400

Unavailable

12

GEAR, 2ND DRIVEN (NT:26)

24320-41201

Unavailable

13

GEAR, 3RD DRIVEN (NT:24)

24331-41200

Unavailable

14

GEAR, 4TH DRIVEN (NT:21)

24341-41200

Unavailable

15

GEAR, 5TH DRIVEN (NT:20)

24351-41200

Unavailable

16

WASHER

09160-20004

Unavailable

17

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

18

CIRCLIP

09380-25006

Unavailable

19

CIRCLIP

09380-25010

$2.91

20

BEARING, 1ST DRIVEN GEAR

09263-20018

Unavailable

21

BEARING, RH

09263-20017

Unavailable

22

BUSH

09301-24001

Unavailable

23

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

24

OIL SEAL

09283-32003

$7.31

25

HOLDER, BEARING

24751-40400

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

SPROCKET, ENGINE (NT:14) This part replaces 27511-41120.

27511-14210

Unavailable

27

SPROCKET, ENGINE (NT:13) | OPT

27511-41110

Unavailable

27

SPROCKET, ENGINE (NT:15) | OPT

27511-41130

Unavailable

28

SPACER

09180-22007

Unavailable

29

NUT

09140-22006

Unavailable

30

LOCK WASHER

09167-22005

$2.11

31

O RING

09280-22003

$1.72

32

CHAIN,DRIVE ASS | Includes Item(s) 33 This part replaces 27600-41110.

27600-46K00-116

$167.95

33

JOINT (DID) This part replaces 27620-40000.

27620-14252

Unavailable
