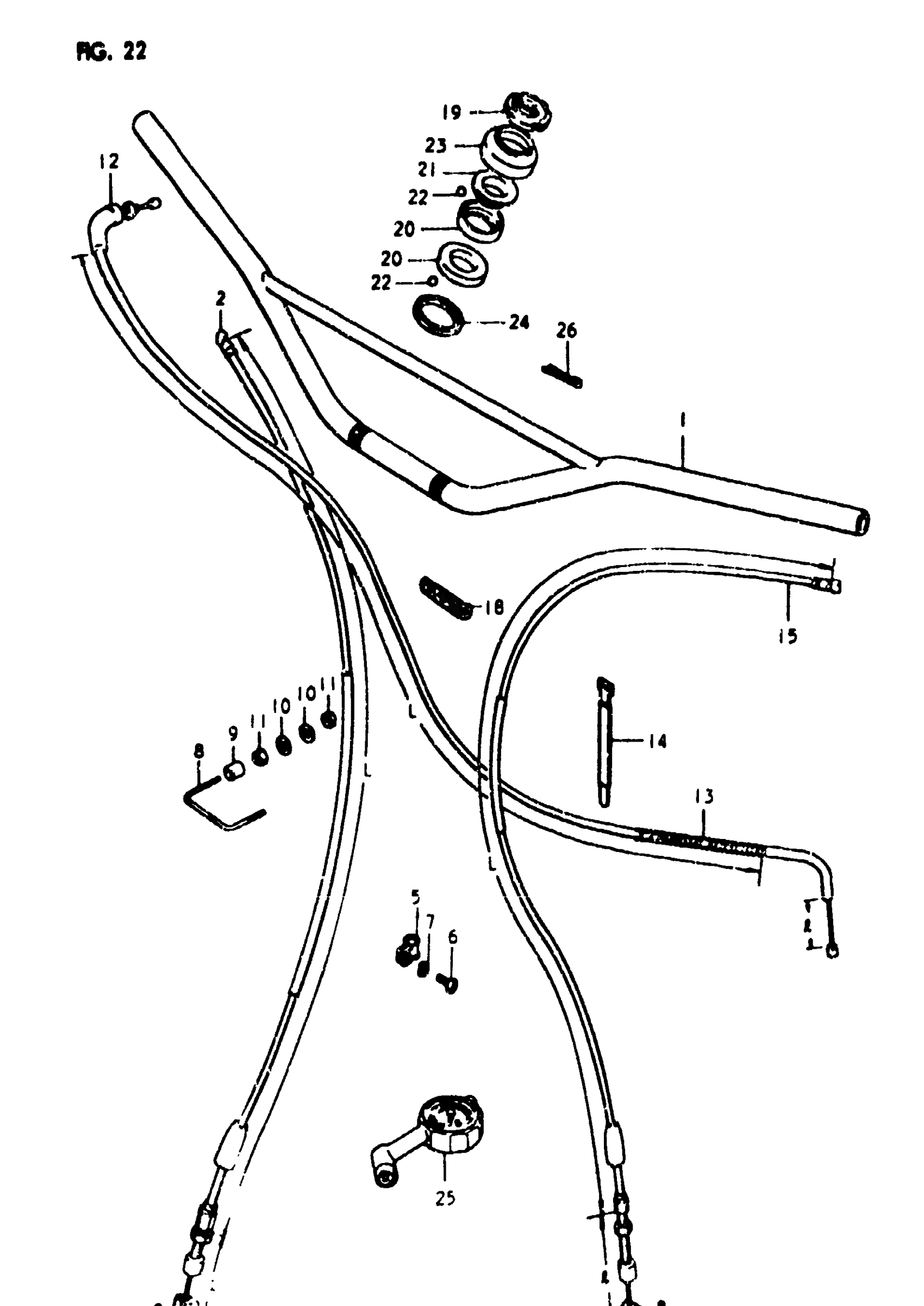

Suzuki RM400 (1980) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-40400-08C

Unavailable

2

CABLE,FR BRAKE This part replaces 58100-40400.

58100-37200

Unavailable

3

PIN

09200-05001

$1.65

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

CLAMP

58620-40401

Unavailable

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

GUIDE, CABLE

58626-41000

Unavailable

9

ROLLER

09306-04002

Unavailable

10

WASHER This part replaces 08322-21038.

08322-01037

$1.93

11

NUT This part replaces 08310-11038.

08310-0003B

$2.83

12

CABLE, THROTTLE This part replaces 58300-40411.

58300-40X05

Unavailable

13

PROTECTOR

58399-27100

$3.78

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

15

CABLE ASSY, CLUTCH (L:110,l:20

58200-40400

Unavailable

16

PIN

09200-06004

$2.20

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

19

NUT, STEERING STEM

51631-40200

Unavailable

20

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

21

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

22

STEEL BALL

06111-08003

$1.49

23

DUST SEAL, UPPER

51643-40200

$7.96

24

DUST SEAL, INNER

51651-40010

Unavailable

25

GAUGE, FRONT FORK AIR

96200-41330

Unavailable

26

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
