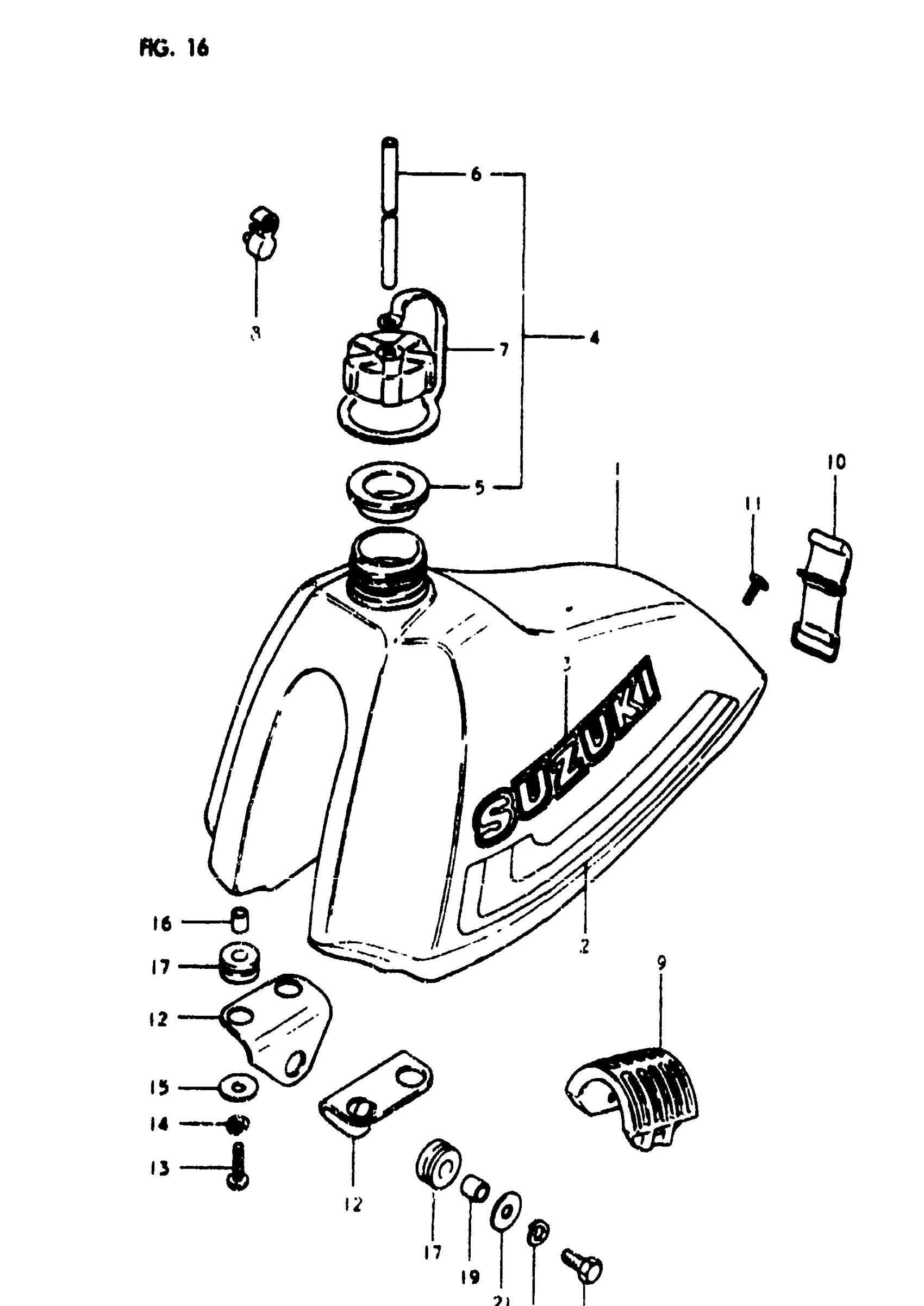

Suzuki RM400 (1980) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-40410-163.

44110-40400-163

Unavailable

2

TAPE SET

68110-40410-67H

Unavailable

3

EMBLEM This part replaces 68111-40200-019.

68111-40210-64D

Unavailable

4

CAP SET,FUEL TA | Includes Item(s) 5 - 8 This part replaces 44200-40400.

44200-40822

$14.76

5

GASKET This part replaces 44248-40400.

44248-05211

$3.76

6

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

7

BAND

44487-40400

Unavailable

8

CLAMP

44486-40200

$4.88

9

CUSHION, UPPER

44541-41300

Unavailable

10

BAND, REAR

44560-41300

Unavailable

11

SCREW

09125-06029

$1.72

12

BRACKET, LOWER

44521-40401

Unavailable

13

SCREW This part replaces 02112-06258.

02112-06257

$1.78

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

16

SPACER (6.8x12x11)

09180-06076

$2.68

17

CUSHION

09320-11008

$2.60

18

BOLT This part replaces 01304-08258.

01500-08257

$2.50

19

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

WASHER This part replaces 09160-08021.

09160-08130

$2.03
