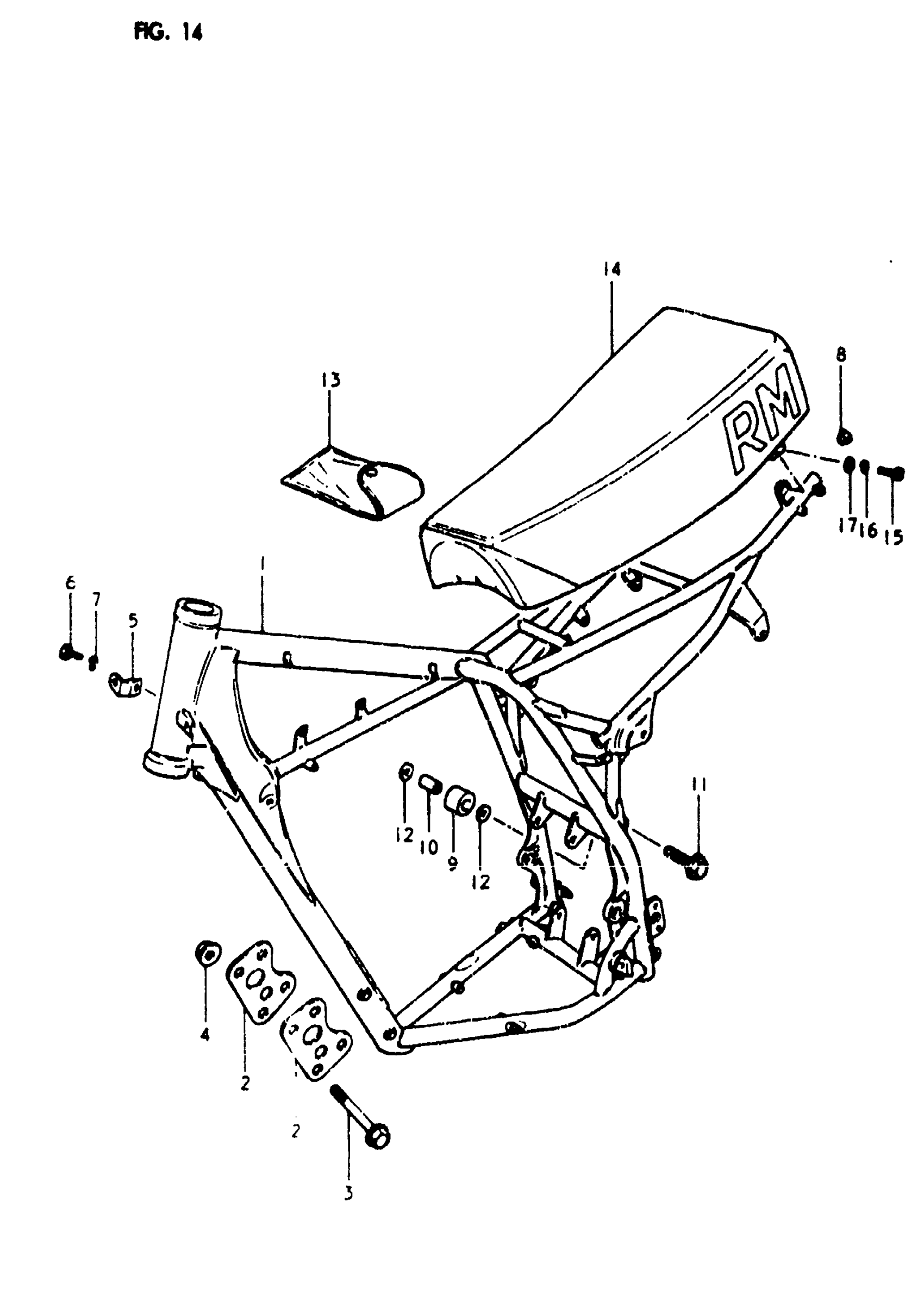

Suzuki RM400 (1980) FRAME - SEAT Diagram

#

Description
Price

1

FRAME (BLACK)

41100-40403-019

Unavailable

2

PLATE, ENGINE MOUNTING

41991-40400

Unavailable

3

BOLT

09103-08037

$5.57

4

NUT This part replaces 08319-31088.

08319-3108A

$2.32

5

BRACKET, CDI UNIT

41890-41300

Unavailable

6

BOLT This part replaces 01107-06128.

01500-06127

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

PLUG

09250-14005

$2.06

9

ROLLER, CHAIN LOWER This part replaces 43911-40410.

43911-14200

Unavailable

10

SPACER, CHAIN LENGTH ROLLER

43913-40400

Unavailable

11

BOLT

09103-08043

$3.18

12

WASHER This part replaces 09160-08035.

09160-08130

$2.03

13

TOOL SET This part replaces 09800-00218.

09800-08800

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 45100-40310-865.

45100-40651-48F

Unavailable

15

BOLT This part replaces 01107-06208.

01500-06207

$2.28

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER (6.5X18X1.0)

09160-06028

$1.49
