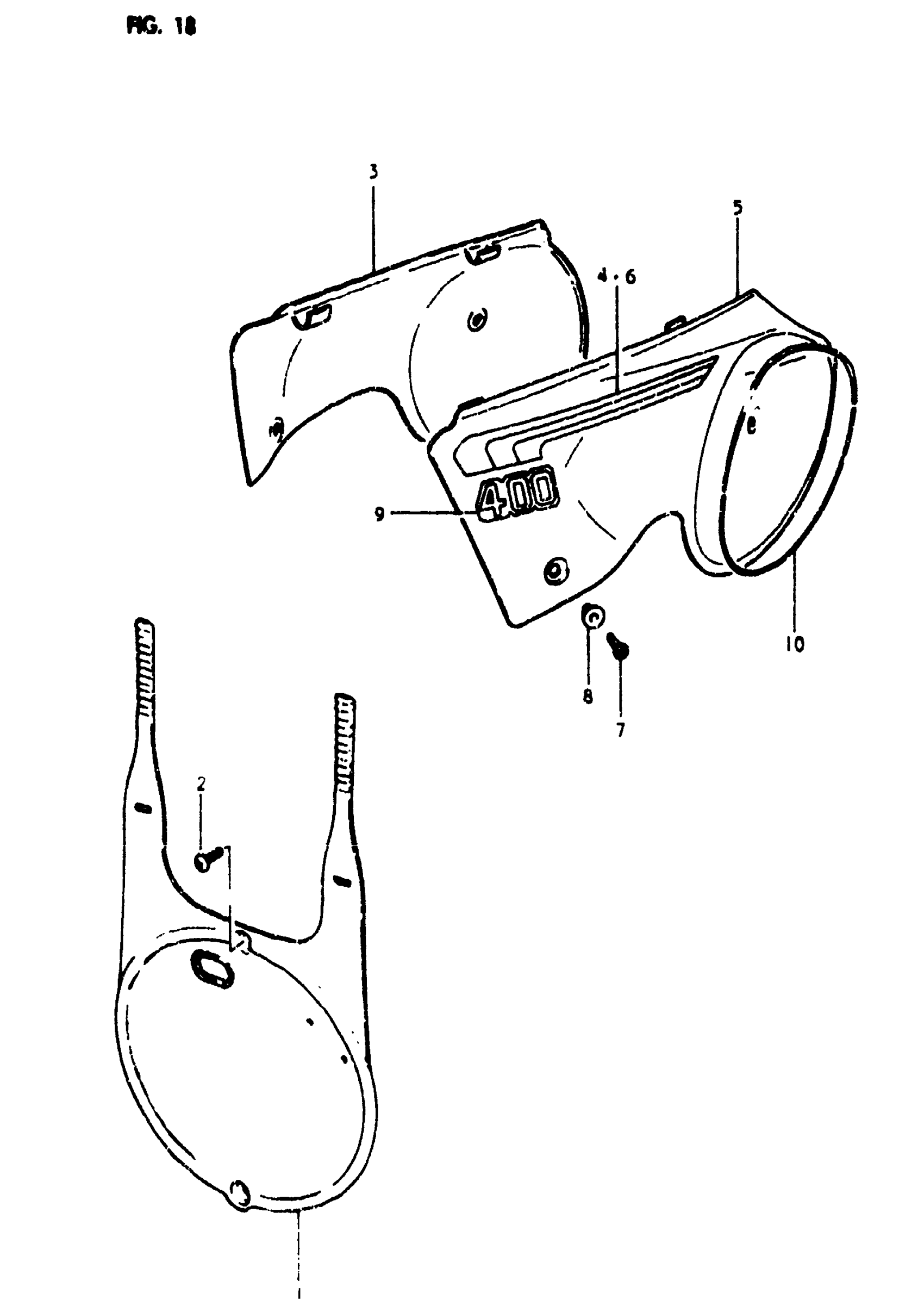

Suzuki RM400 (1980) FRAME COVER Diagram

#

Description

Price

1

PLATE, FRONT NUMBER

94911-41300

Unavailable

2

SCREW This part replaces 02142-05208.

02142-05207

$1.49

3

COVER FRAME RH This part replaces 47111-40400-163.

47111-40401-163

Unavailable

4

TAPE, STRIPING RH

68136-40410-67H

Unavailable

5

COVER, FRAME LH (YELLOW)

47211-40400-163

Unavailable

6

TAPE, STRIPING LH

68146-40410-67H

Unavailable

7

SCREW

02142-06127

$1.49

8

WASHER (6.3X16X1) This part replaces 09180-06048.

09169-06053

$1.49

9

NO DESCRIPTION AVAILABLE This part replaces 68131-40400-64D.

68131-37220-77D

Unavailable

10

TAPE, FRAME COVER

68146-41200

Unavailable
