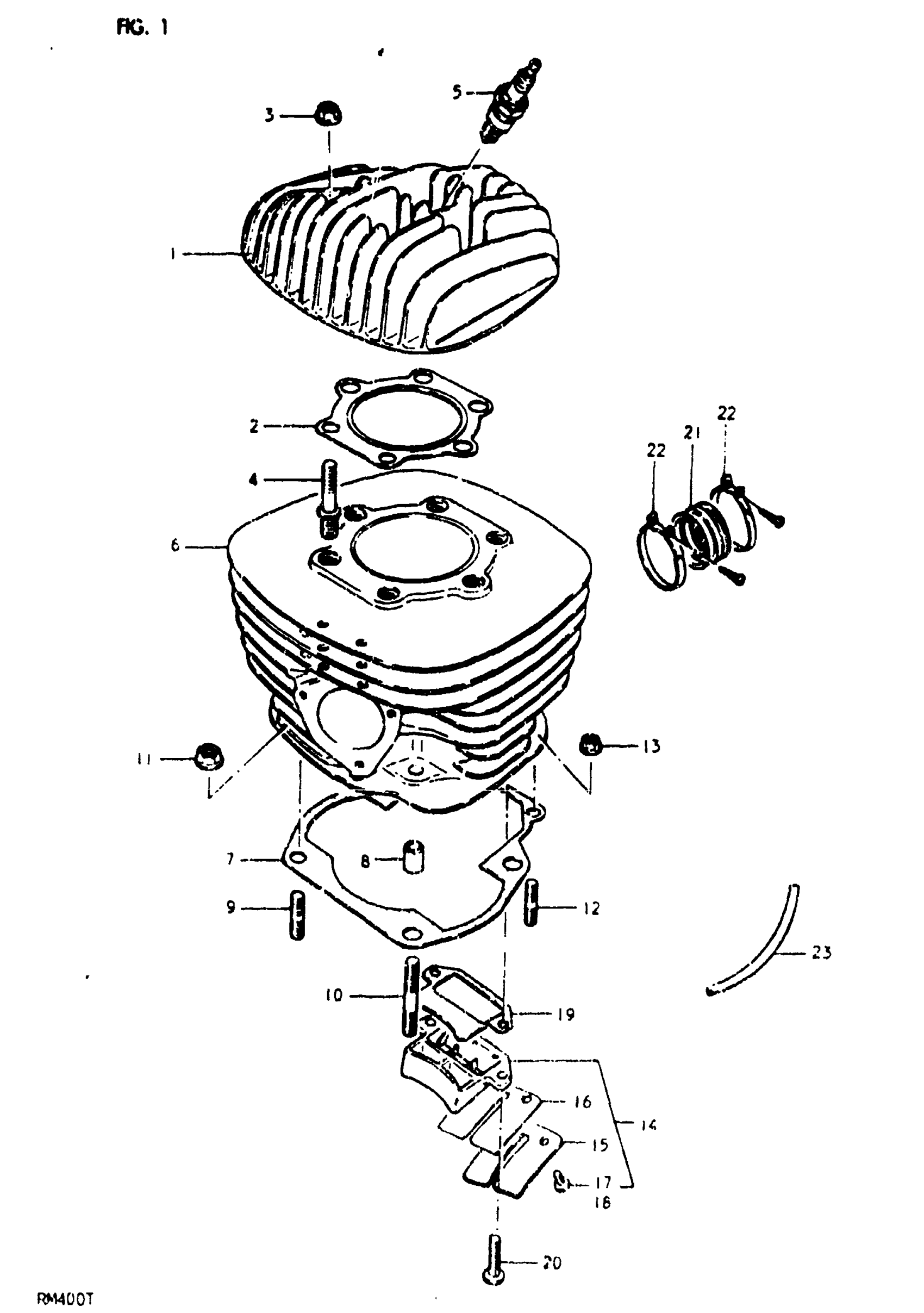

Suzuki RM400 (1980) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-40401

Unavailable

2

GASKET (T:1.0)

11141-40400

Unavailable

2

GASKET (T:0.5) | OPT

11141-40730

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08067

Unavailable

5

SPARK PLUG (NGK, B8EGV)

09482-00208

Unavailable

6

CYLINDER

11210-40401

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 11241-40401.

11241-40402

Unavailable

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

10

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

11

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

13

NUT This part replaces 08316-16068.

08319-31067

$2.03

14

REED VALVE ASSY | Includes Item(s) 15 - 18

13150-40400

Unavailable

15

STOPPER

13152-40400

Unavailable

16

REED VALVE

13153-40400

Unavailable

17

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

19

GASKET,REED VAL This part replaces 13156-40400.

13156-40400-H17

Unavailable

20

SCREW This part replaces 02112-06168.

02112-06167

$1.49

21

PIPE, INTAKE

13111-40401

Unavailable

22

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

23

HOSE 4X7X600 This part replaces 09343-04010.

09352-40706-600

$5.11
