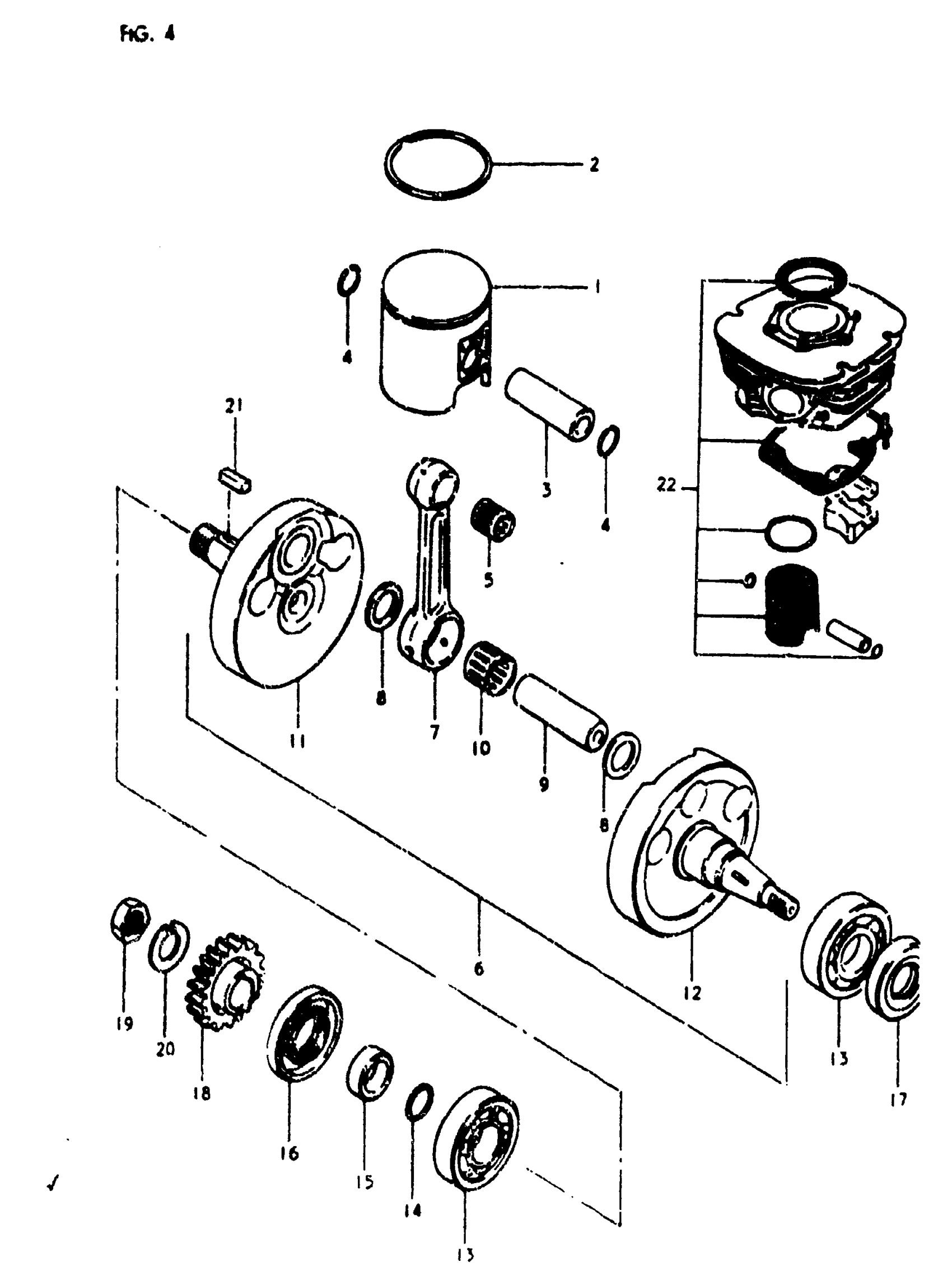

Suzuki RM400 (1980) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD)

12110-40400

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 12110-40400-025.

12103-40870-025

Unavailable

1

PISTON SET This part replaces 12110-40400-050.

12103-40870-050

Unavailable

2

RING, PISTON (STD)

12141-41220

Unavailable

2

RING, PISTON (OS:0.25)

12141-41220-025

Unavailable

2

RING, PISTON (OS:0.50)

12141-41220-050

Unavailable

3

PIN, PISTON This part replaces 12151-15002.

12151-13A00-0A0

$16.02

4

CIRCLIP

09381-18002

$1.67

5

BEARING

09263-18014

Unavailable

6

CRANKSHAFTY ASSY | Includes Item(s) 7 - 12

12200-40400

Unavailable

7

ROD, CONNECTING

12161-40400

Unavailable

8

WASHER

09160-24014

Unavailable

9

PIN,CRANK This part replaces 12211-41201.

12211-40900

Unavailable

10

BEARING This part replaces 09263-24007.

09263-24026

$69.90

11

CRANKSHAFT, RH

12221-40400

Unavailable

12

CRANKSHAFT, LH

12261-40400

Unavailable

13

BEARING, RH (30x72x19) This part replaces 08113-63060.

09262-30077

$58.43

14

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

15

SPACER

09180-22017

Unavailable

16

OIL SEAL, RH

09289-37001

Unavailable

17

OIL SEAL, LH

09283-24001

Unavailable

18

GEAR, PRIMARY DRIVE (NT:26) This part replaces 21111-40400.

21111-40402

Unavailable

19

NUT

09140-14017

Unavailable

20

WASHER

09166-14010

Unavailable

21

KEY

09421-07001

Unavailable

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-40840.

12100-40841

Unavailable

22

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-40840-025.

12100-40841-025

Unavailable
