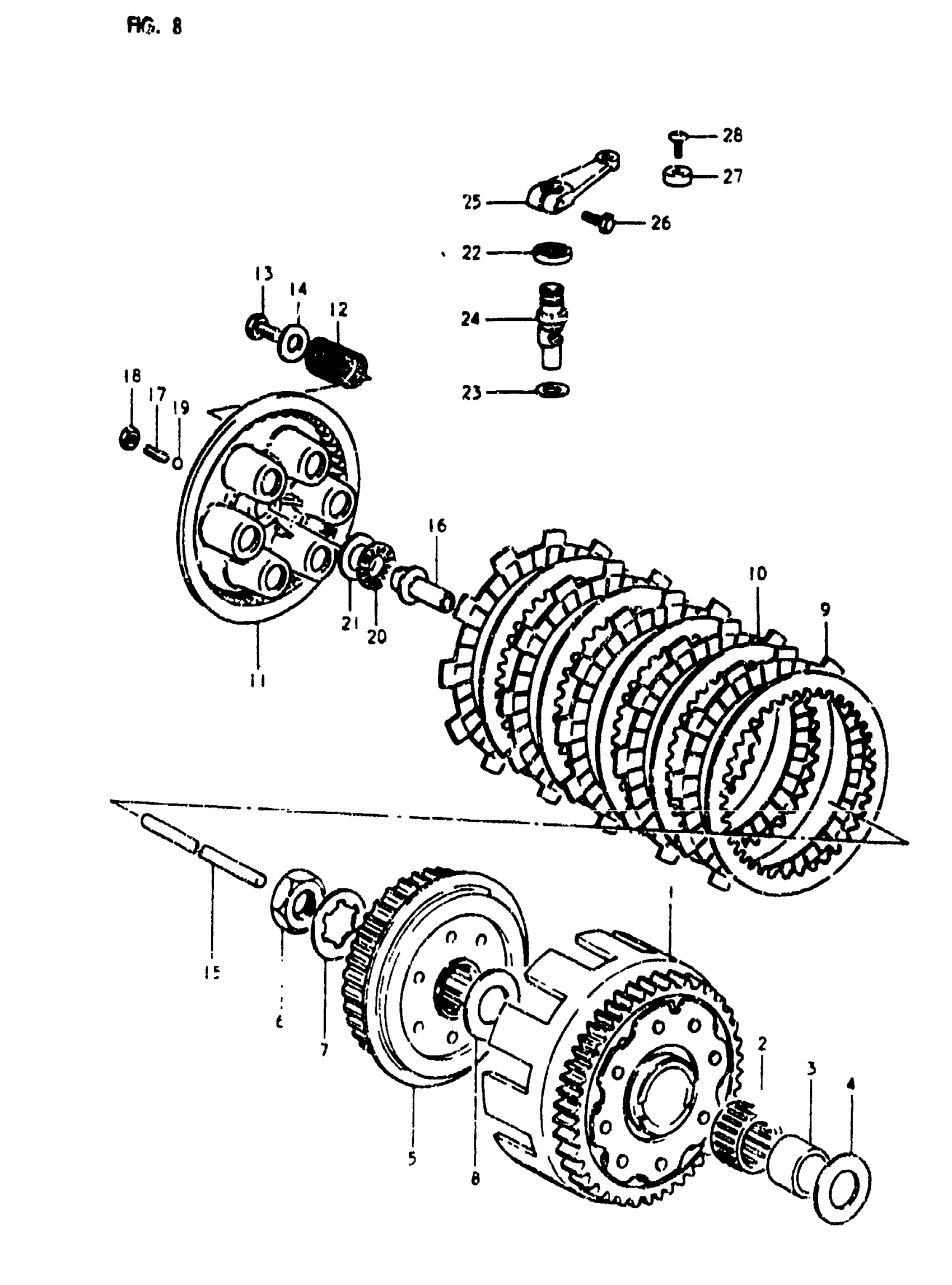

Suzuki RM400 (1980) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:62)

21200-40400

Unavailable

2

BEARING

09263-30007

$22.40

3

SPACER

09180-22008

Unavailable

4

WASHER (22X44X2.0) This part replaces 09160-22012.

09160-22068

$10.72

5

HUB, SLEEVE

21411-40400

Unavailable

6

NUT

09140-22005

$3.87

7

WASHER

09167-22005

$2.11

8

WASHER (22X44X2.0) This part replaces 09160-22012.

09160-22068

$10.72

9

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40402.

21441-37400

$18.13

10

PLATE, DRIVEN (IRON)

21451-31000

$10.40

10

PLATE, CLUTCH DRIVEN | OPT This part replaces 21451-40001.

21451-31000

$10.40

11

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

12

SPRING

09440-19007

$2.52

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

ROD,CLUTCH PUSH,L This part replaces 23111-39101.

23111-15501

$13.30

16

PIECE, CLUTCH PUSH This part replaces 23121-40300.

23121-38201

$26.73

17

SCREW This part replaces 09134-06001.

09134-06010

$3.12

18

.NUT This part replaces 08310-22068.

08310-00067

$2.13

19

STEEL BALL

06111-08003

$1.49

20

BEARING

09263-15003

$8.29

21

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

23

WASHER (14.5X22X1) This part replaces 09160-14003.

09160-14054

$2.07

24

CAMSHAFT, RELEASE This part replaces 23122-40400.

23122-40902

Unavailable

25

ARM, RELEASE

23271-40000

Unavailable

26

BOLT This part replaces 01107-06208.

01500-06207

$2.28

27

STOPPER

23281-40300

Unavailable

28

SCREW This part replaces 02152-06168.

02112-16167

$3.15
