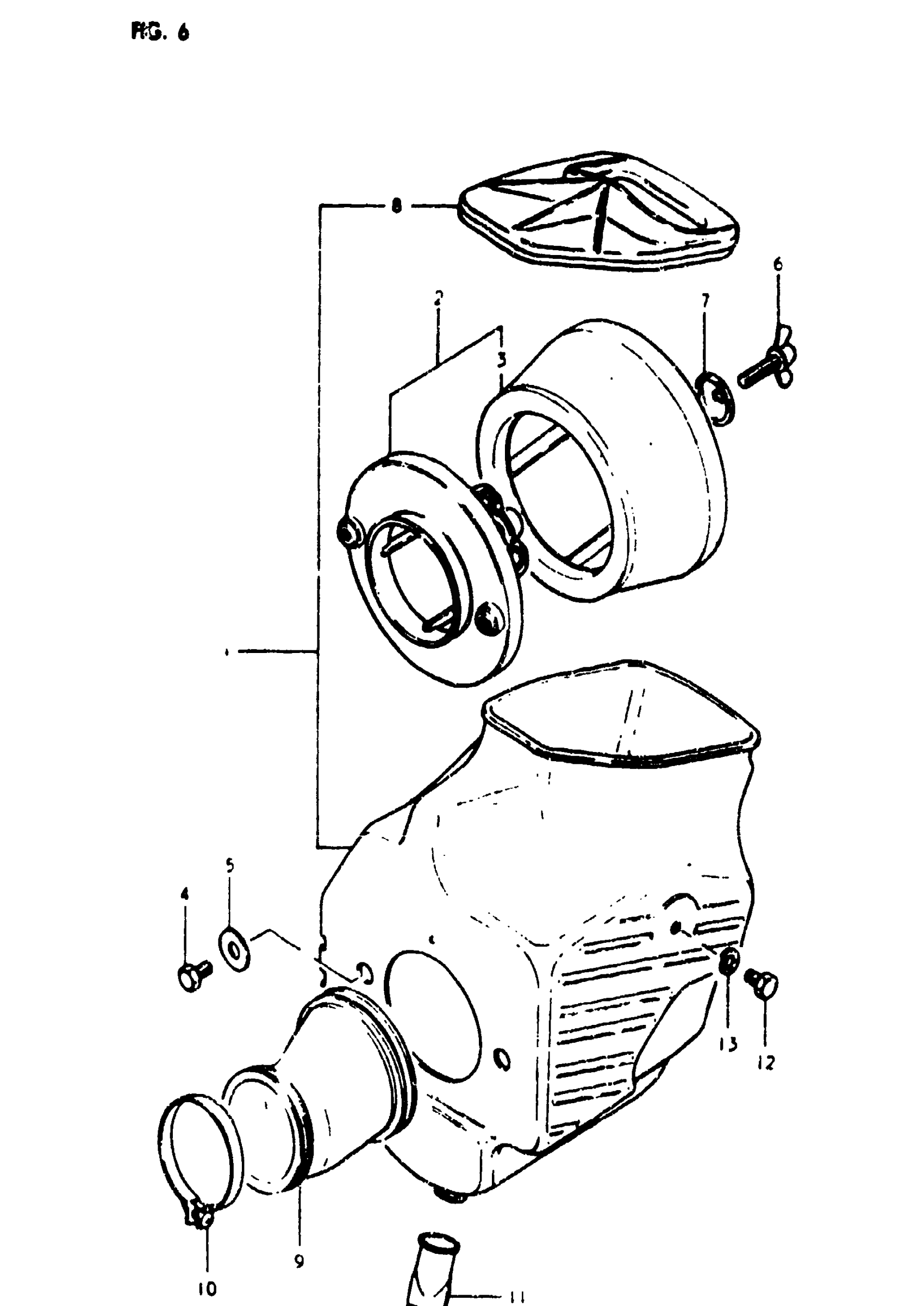

Suzuki RM400 (1980) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11

13700-40411

Unavailable

2

FILTER ASSY

13780-40410

Unavailable

3

FILTER

13781-40410

Unavailable

4

BOLT This part replaces 01107-06128.

01500-06127

$1.97

5

WASHER

13912-40410

Unavailable

6

BOLT This part replaces 13911-40410.

09119-06017-XC0

$3.72

7

WASHER This part replaces 13792-40400.

13792-13A01

$4.34

8

CAP

13741-40411

Unavailable

9

HOSE, AIR OUTLET

13881-40410

Unavailable

10

CLAMP (1) This part replaces 09402-68206.

09402-68306

$4.69

11

TUBE DRAIN This part replaces 13873-00020.

13873-20300

Unavailable

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
