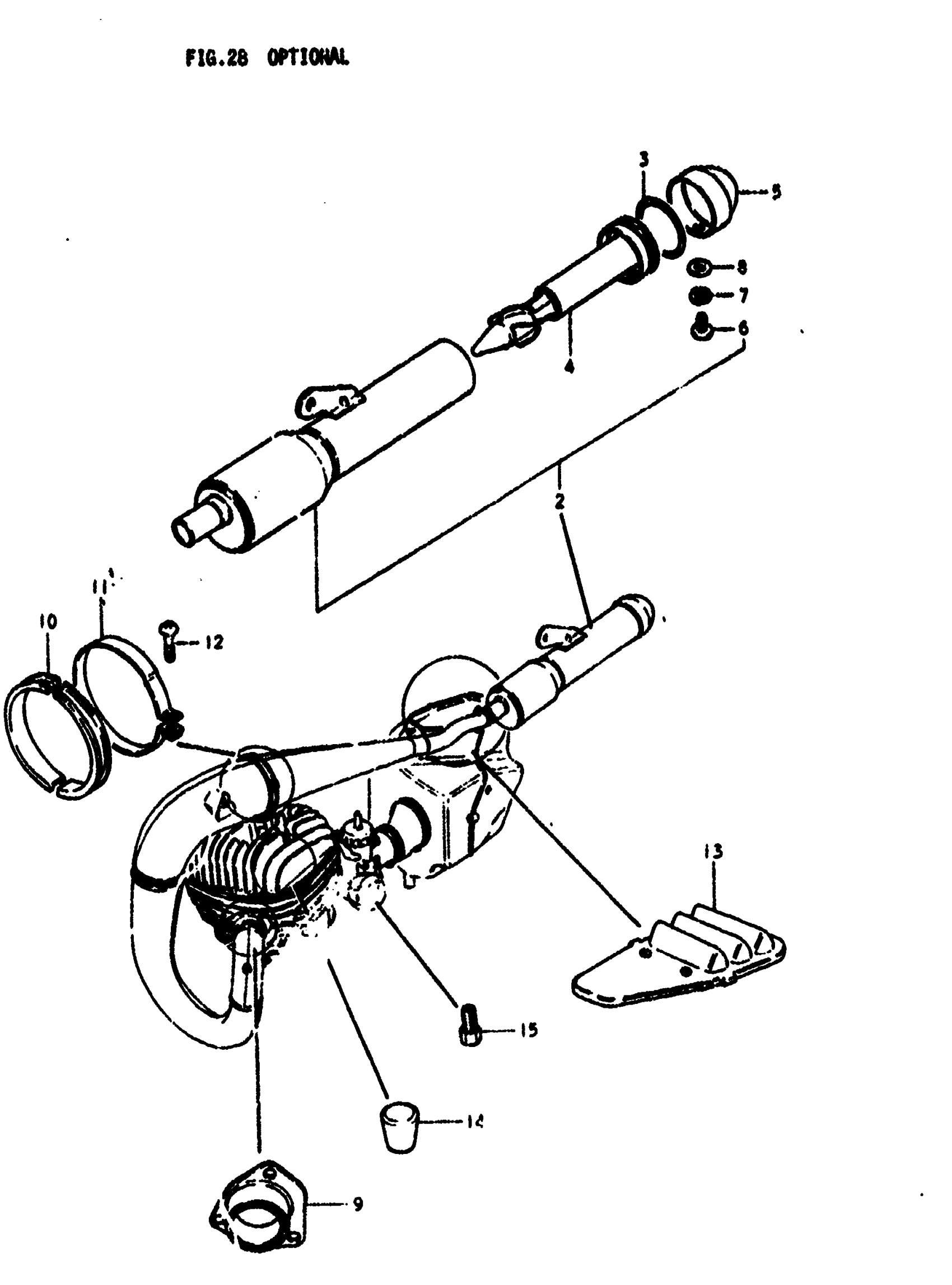

Suzuki RM400 (1979) OPTIONAL Diagram

#

Description
Price

1

OFF-ROAD SOUND KIT | Includes Item(s) 2 - 15 This part replaces 14300-40812.

14300-40861

Unavailable

2

MUFFLER ASSY, 2ND

14303-40410

Unavailable

3

O RING

09280-55001

$5.52

4

TUBE, CLEAN OUT

14850-30510

Unavailable

5

COVER, TAIL This part replaces 14649-41500.

14649-30520

Unavailable

6

SCREW

09128-06013

$1.49

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

FLANGE, EXHAUST PIPE This part replaces 14170-40410.

14170-40420

Unavailable

10

RUBBER, MUFFLER BODY

14319-41700

Unavailable

11

CLAMP, MUFFLER BODY

09402-92601

Unavailable

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

CAP, AIR CLEANER

13740-40400

Unavailable

14

RUBBER PAD, CYLINDER/HEAD

11151-16400

Unavailable

15

JET, MAIN (180) | #80 This part replaces 09491-36003.

09491-36006

Unavailable
