1979 Suzuki RM400 Handle Grip - Lever Diagram

← All diagrams

Find the part on the Handle Grip - Lever diagram for your 1979 Suzuki RM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

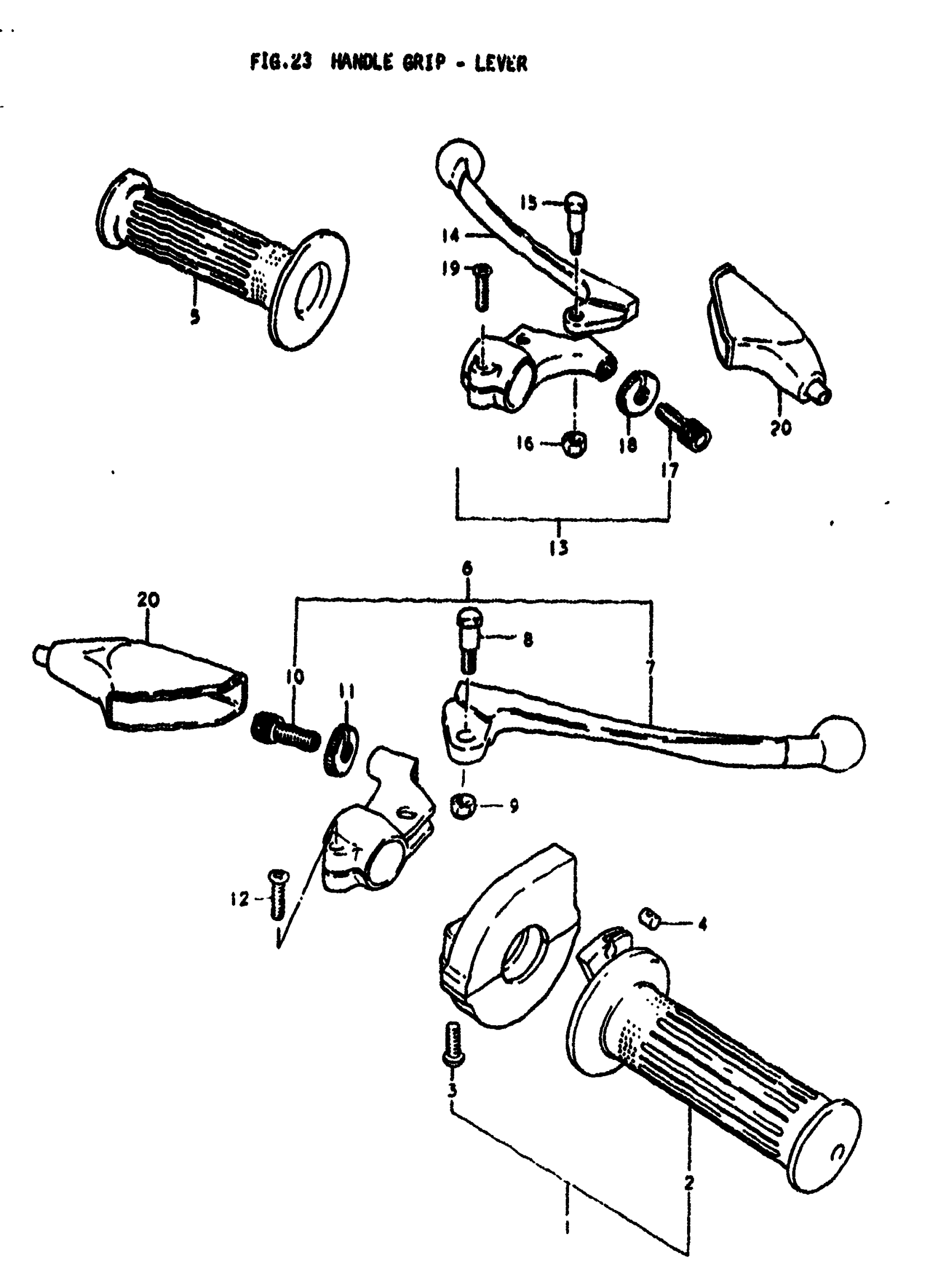

1979 Suzuki RM400 Handle Grip - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP ASSY, THROTTLE | Includes Item(s) 2 - 3

57100-41601

1
Out of stock

2

GRIP, THROTTLE This part replaces 57110-41110.

57110-40200

1
Out of stock

3

SCREW This part replaces 02112-05168.

02112-05167

2
Out of stock

4

PIECE, THROTTLE END

58631-07010

1
Out of stock

5

GRIP LH This part replaces 57211-41110.

57211-27C00

1
Out of stock

6

LEVER ASSY, BRAKE | Includes Item(s) 7 - 12

57300-32500

1
Out of stock

7

LEVER, BRAKE

57420-29400

1
Out of stock

8

BOLT This part replaces 57431-11010.

57431-11013

1
Out of stock

9

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

10

ADJUSTER, CABLE

57441-11010

1
Out of stock

11

NUT

57442-11010

1
Out of stock

12

SCREW This part replaces 02112-06208.

02112-06207

1
Out of stock

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 19

57500-29401

1
Out of stock

14

LEVER, CLUTCH This part replaces 57620-45020.

57620-45010

1
Out of stock

15

BOLT This part replaces 57431-11010.

57431-11013

1
Out of stock

16

.NUT This part replaces 08319-21068.

08319-2106A

1
Out of stock

17

ADJUSTER, CABLE

57441-26010

1
Out of stock

18

NUT

57442-11010

1
Out of stock

19

SCREW This part replaces 02112-06208.

02112-06207

1
Out of stock

20

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

2
Out of stock
