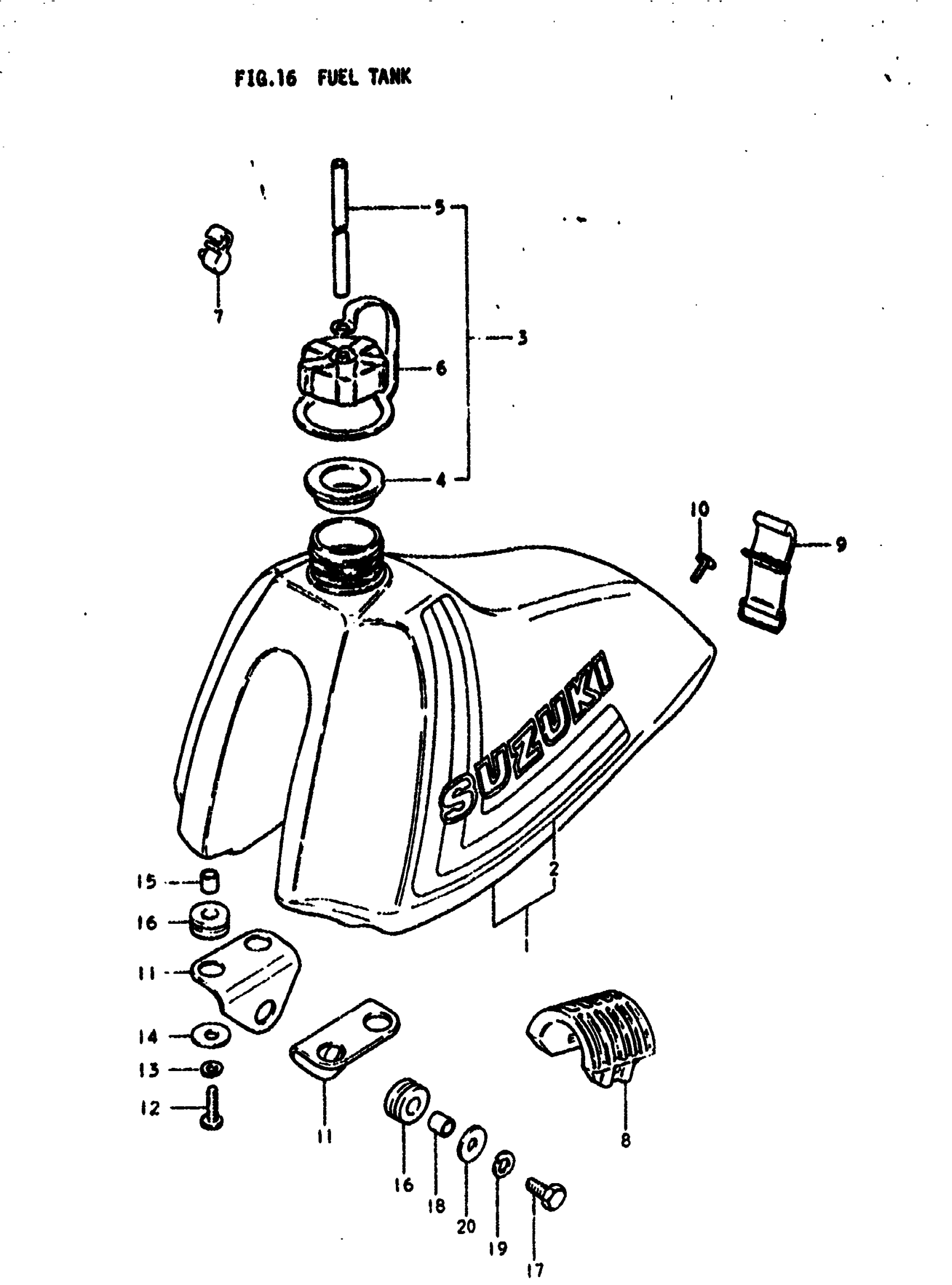

Suzuki RM400 (1979) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 44100-40400-163.

44110-40400-163

Unavailable

2

STRIPING TAPE & EMBLEM SET

68100-40830

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-40400.

44200-40822

$14.76

4

GASKET This part replaces 44248-40400.

44248-05211

$3.76

5

HOSE,5X10X600 | 5x8.2x240 This part replaces 09343-05129.

44421-13ER0

$10.06

6

BAND

44487-40400

Unavailable

7

CLAMP

44486-32101

$3.65

8

CUSHION, UPPER

44541-41300

Unavailable

9

BAND, REAR

44560-41300

Unavailable

10

SCREW

09125-06029

$1.72

11

BRACKET, LOWER This part replaces 44521-41111.

44521-40401

Unavailable

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

15

SPACER | 6.8x12x11

09180-06076

$2.68

16

CUSHION

09320-11008

$2.60

17

BOLT This part replaces 01304-08258.

01500-08257

$2.50

18

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

$2.58

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 09160-08021.

09160-08130

$2.03
