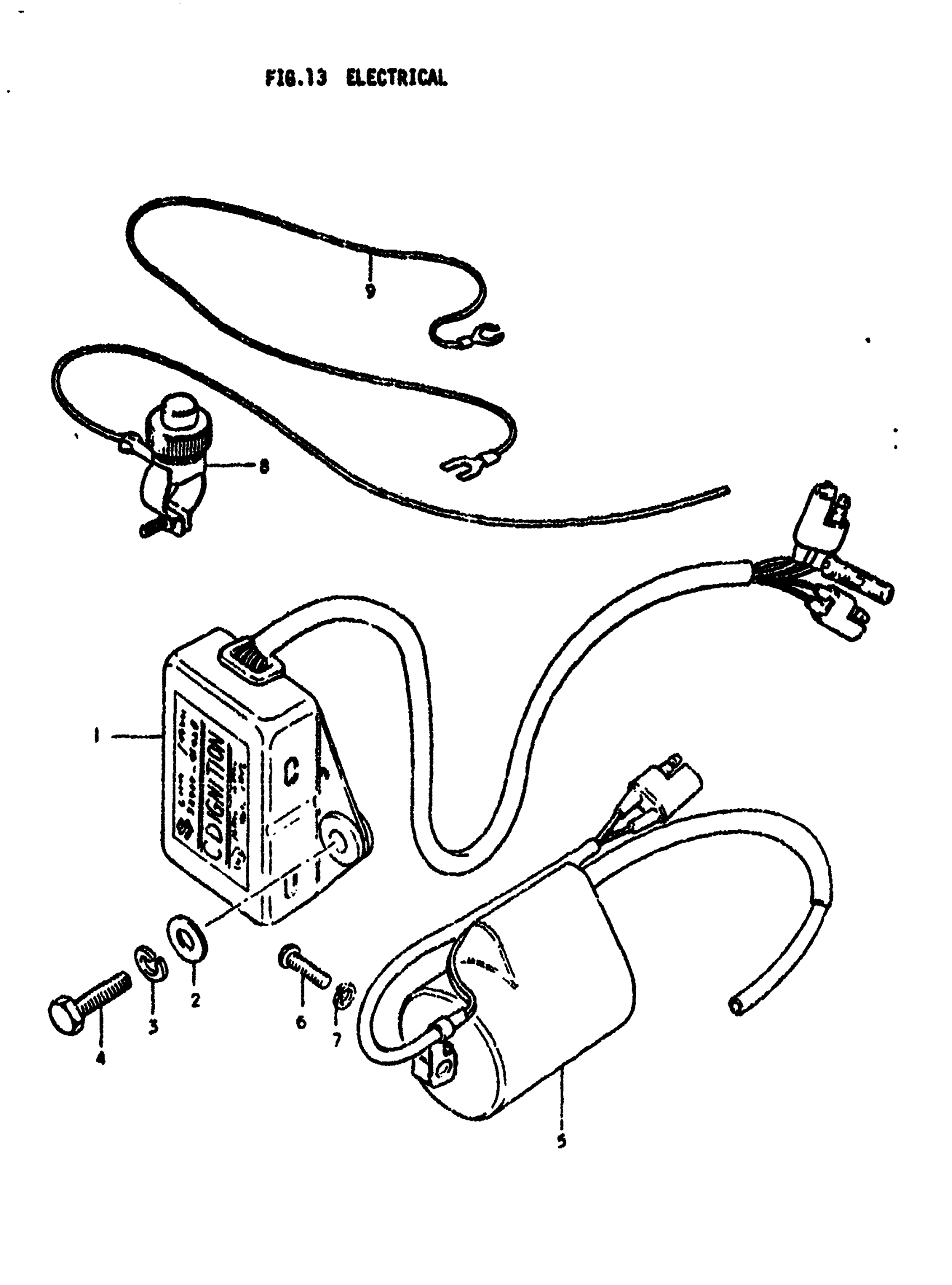

Suzuki RM400 (1979) ELECTRICAL Diagram

#

Description

Price

1

CDI UNIT ASSY

32900-40420

Unavailable

2

WASHER | 6.5x16x1.2

09160-06019

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

BOLT This part replaces 01107-06208.

01500-06207

$2.28

5

COIL ASSY, IGNITION This part replaces 33410-41320.

33410-14120

$115.17

6

SCREW This part replaces 02112-05208.

02112-05207

$1.97

7

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

8

SWITCH ASSY, ENGINE STOP This part replaces 37820-04430.

37820-14X50

$48.54

9

LEAD WIRE

36851-41200

Unavailable
