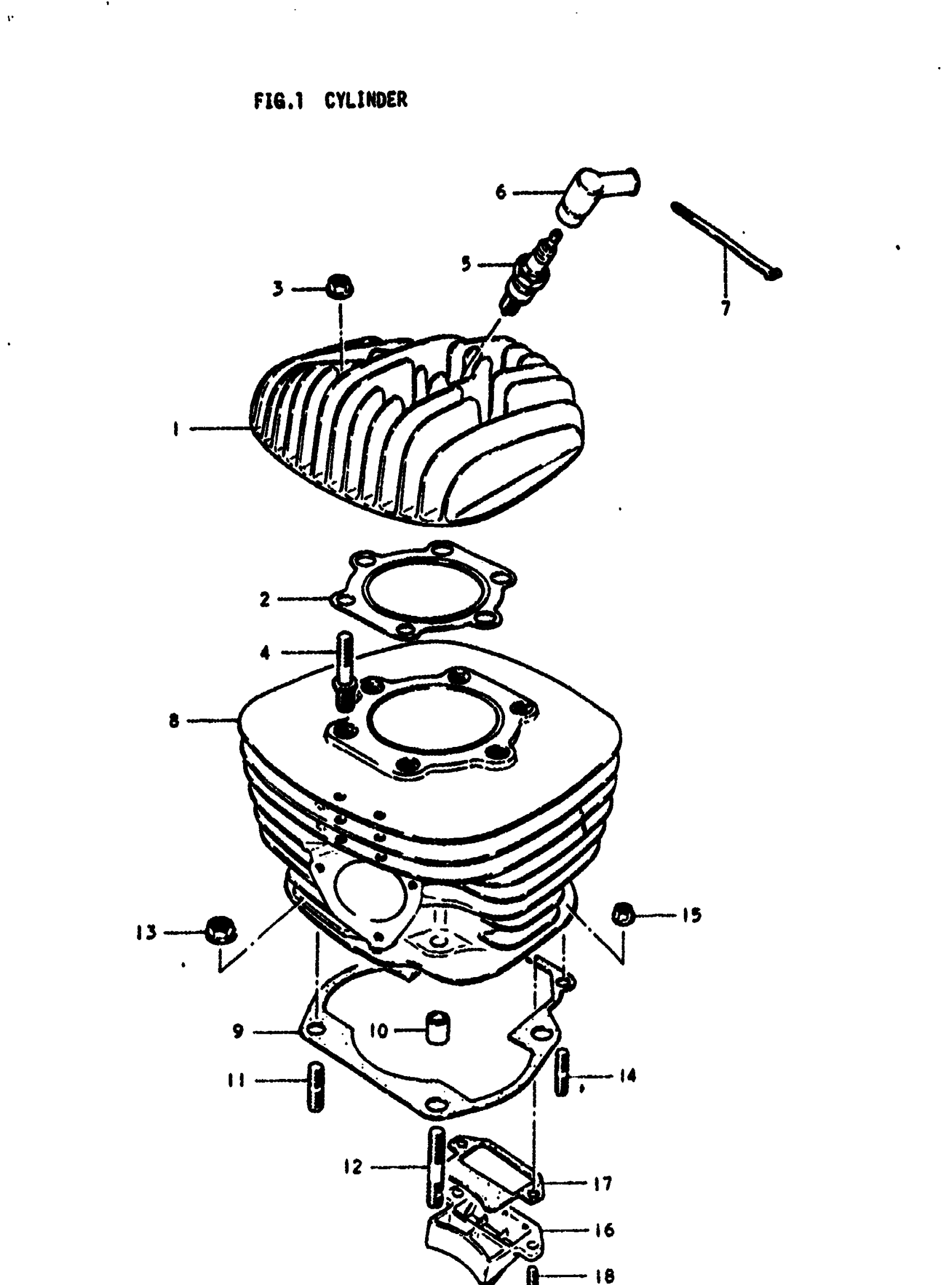

Suzuki RM400 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-40401

Unavailable

2

GASKET, CYLINDER HEAD

11141-40400

Unavailable

2

GASKET, CYLINDER HEAD | 0.5 OPT

11141-40730

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08067

Unavailable

5

SPARK PLUG (NGK,B8EGV) | NGK, B8EV This part replaces 09482-00096.

09482-00208

Unavailable

5

NO DESCRIPTION AVAILABLE | ND, W24ES-G This part replaces 09482-00158.

09482-00270-111

Unavailable

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

7

BELT

09407-09402

$2.45

8

CYLINDER

11210-40401

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 11241-40400.

11241-40402

Unavailable

10

PIN This part replaces 09206-13001.

04211-13189

$2.19

11

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

12

STUD BOLT This part replaces 01421-10458.

01421-10457

$3.91

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

14

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

15

NUT This part replaces 08316-16068.

08319-31067

$2.03

16

REED VALVE ASSY

13150-40400

Unavailable

17

GASKET,REED VAL This part replaces 13156-40400.

13156-40400-H17

Unavailable

18

SCREW This part replaces 02112-06168.

02112-06167

$1.49
