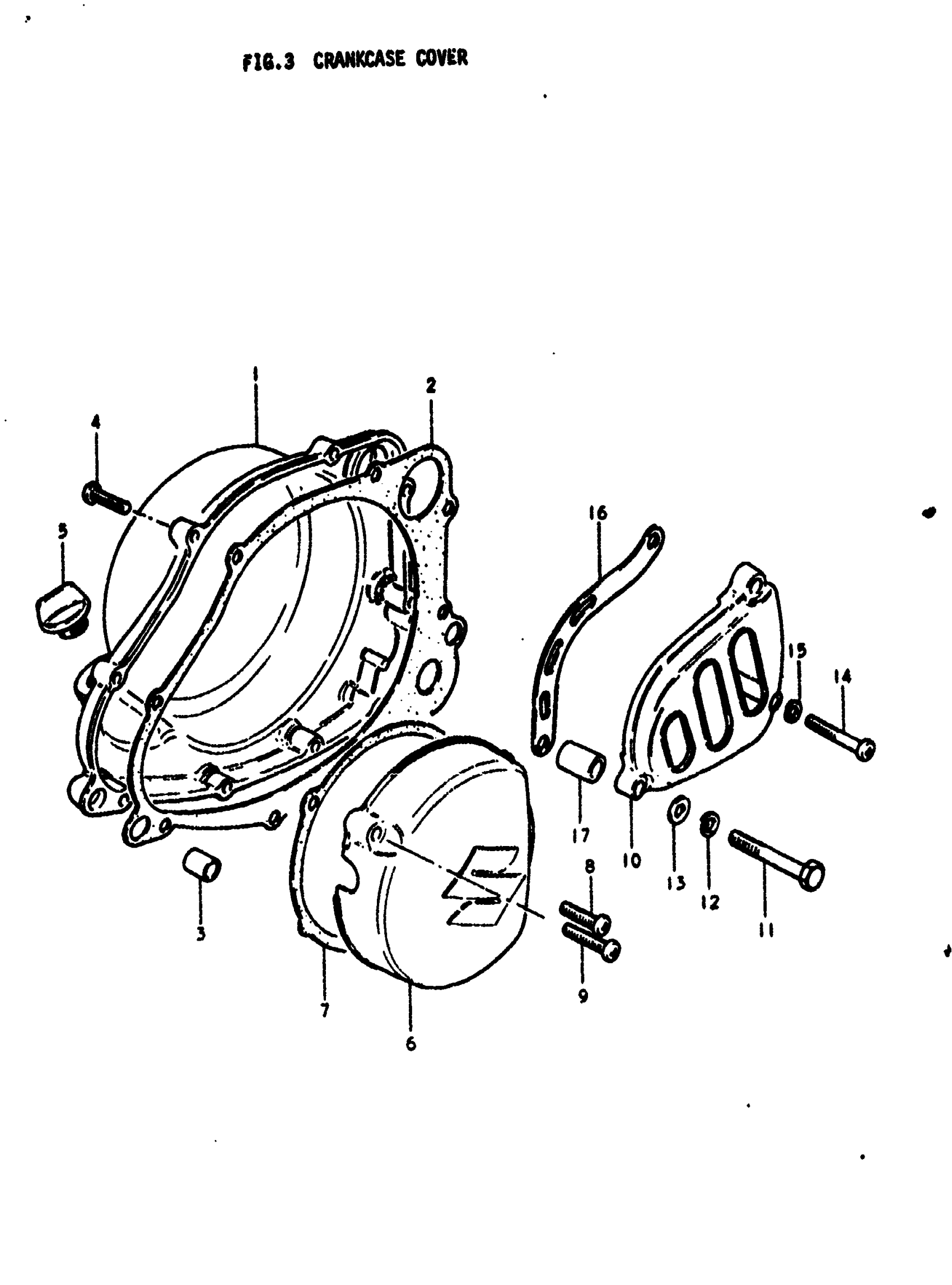

Suzuki RM400 (1979) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-40400

Unavailable

2

GASKET

11482-40400

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

6

COVER, MAGNETO This part replaces 11351-40400.

11351-40402

Unavailable

7

GASKET,MAGNETO This part replaces 11483-41301.

11483-41312-H17

Unavailable

8

SCREW This part replaces 02112-06208.

02112-06207

$1.78

9

SCREW This part replaces 02112-06308.

02112-06307

$1.97

10

COVER, ENGINE SPROCKET This part replaces 11360-40400.

11360-40401

Unavailable

11

BOLT This part replaces 01107-08558.

01500-08557

$3.16

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

PLATE, FRONT CHAIN GUIDE

27641-40400

Unavailable

17

SPACER

09180-08078

Unavailable
